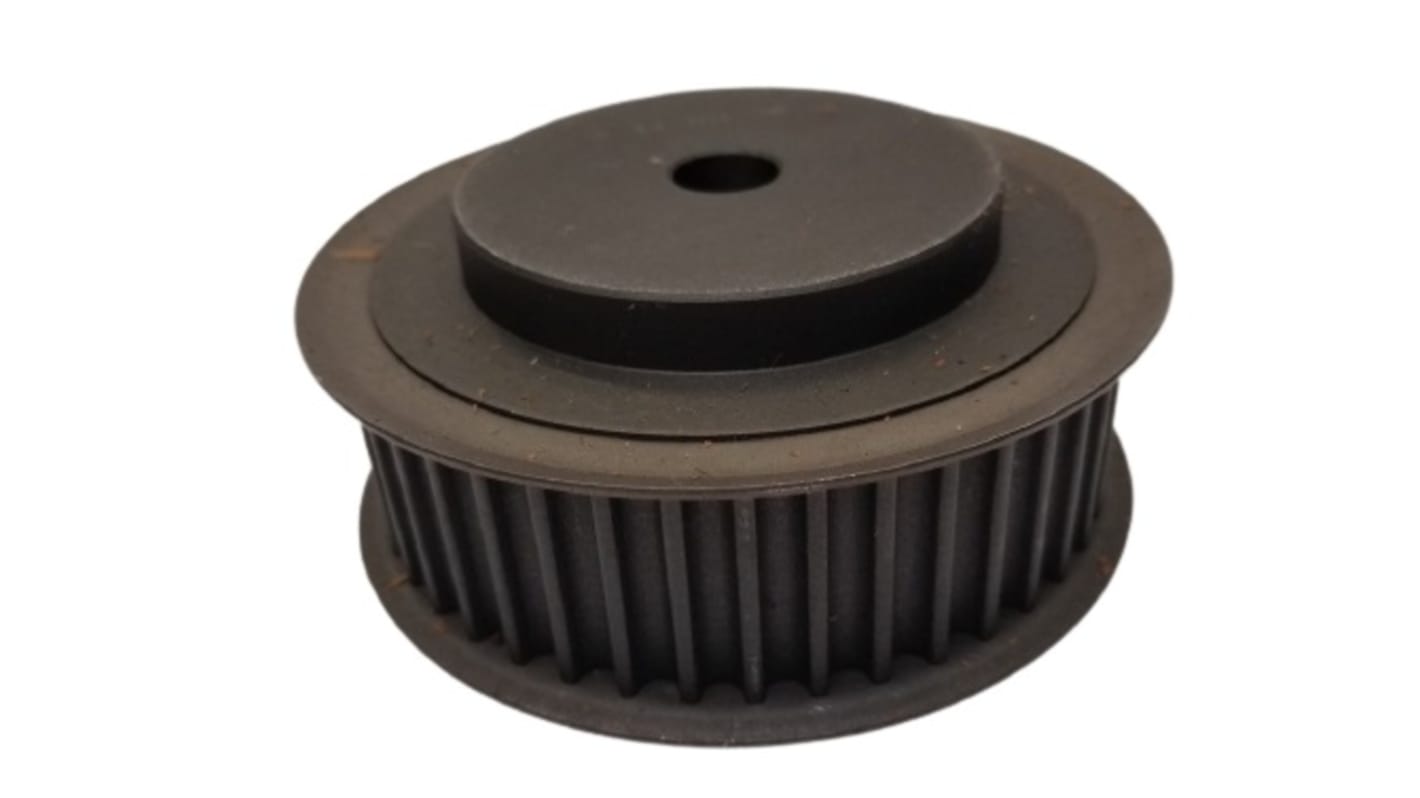

OPTIBELT Timing Belt Pulley Steel 9.5 mm Pitch, 14 Tooth
- RS Stock No.:
- 236-5409
- Mfr. Part No.:
- 14L075
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£6.81
(exc. VAT)
£8.17
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.81 |
*price indicative
- RS Stock No.:
- 236-5409
- Mfr. Part No.:
- 14L075
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 14 | |
| Pitch | 9.5mm | |
| Pitch Circle Diameter | 42.45mm | |
| Bore Size | 20 mm | |
| Flange Diameter | 48mm | |
| Material | Steel | |
| Flanged | Yes | |
| Outside Diameter | 41.68 mm | |
| Standards/Approvals | RoHS | |
| Bore Type | Pilot Bore | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 14 | ||
Pitch 9.5mm | ||
Pitch Circle Diameter 42.45mm | ||
Bore Size 20 mm | ||
Flange Diameter 48mm | ||
Material Steel | ||
Flanged Yes | ||
Outside Diameter 41.68 mm | ||
Standards/Approvals RoHS | ||
Bore Type Pilot Bore | ||
The OPTIBELT ZRS timing belt pulleys for plain boring imperial profile L (9.525 mm) has belt width of 75 mm and 14 number of teeth. It has finished bore of max 20 mm.
Maximum bore diameter of 20 mm
Manufactured from high strength material
