Bulk discount available
Subtotal (1 unit)*
£7.85
(exc. VAT)
£9.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 19 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.85 |
| 5 - 9 | £7.68 |
| 10 - 24 | £7.53 |
| 25 + | £7.37 |
*price indicative
- RS Stock No.:
- 146-5403
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance

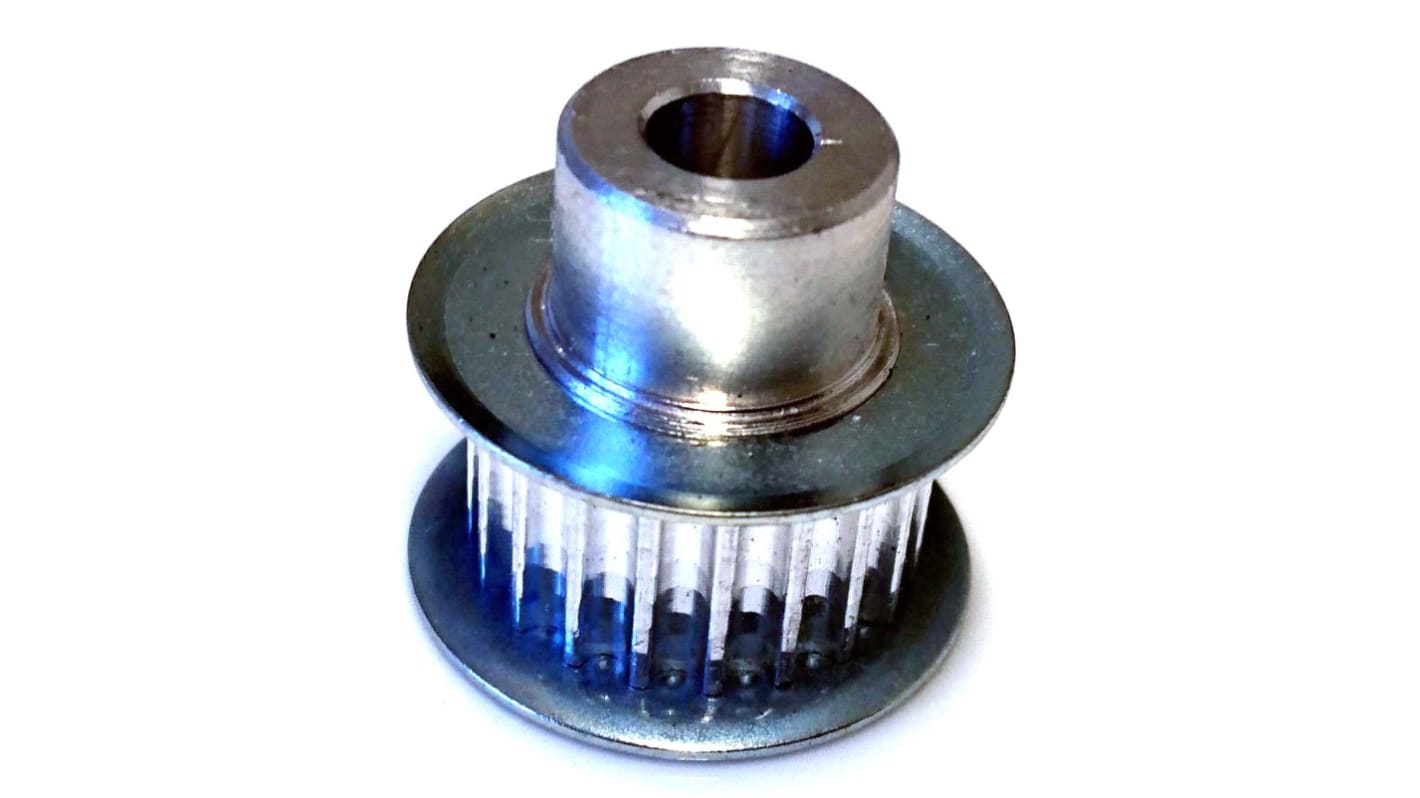

Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 18 | |
| Pitch | 3mm | |
| Pitch Circle Diameter | 17.19mm | |
| Bore Size | 6 mm | |
| Flange Diameter | 20mm | |
| Material | Aluminium | |
| Flanged | Yes | |
| Acceptable Belt Width | 15mm | |
| Outside Diameter | 16.43 mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 18 | ||
Pitch 3mm | ||
Pitch Circle Diameter 17.19mm | ||
Bore Size 6 mm | ||
Flange Diameter 20mm | ||
Material Aluminium | ||
Flanged Yes | ||
Acceptable Belt Width 15mm | ||
Outside Diameter 16.43 mm | ||
Standards/Approvals No | ||
Part of an extensive range of High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type. The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from steel. HTD, CXP and CXA belts are all designed to run on these pulleys.
