2 Hole Flange Bearing Unit, FYTB 35 TF, 35mm ID
- RS Stock No.:
- 195-9608
- Mfr. Part No.:
- FYTB 35 TF
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£50.74
(exc. VAT)
£60.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £50.74 |
| 5 - 9 | £48.72 |
| 10 - 24 | £47.70 |
| 25 + | £46.68 |
*price indicative
- RS Stock No.:
- 195-9608
- Mfr. Part No.:
- FYTB 35 TF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 35mm | |
| Bearing Unit Type | Flange Bearing Unit | |
| Number of Mount Holes | 2 | |
| Material | Cast Iron | |
| Length | 96mm | |
| Width | 46.4mm | |
| Depth | 156mm | |
| Mount Hole Size | 14mm | |
| Mount Hole Centre-to-Centre | 130mm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 35mm | ||
Bearing Unit Type Flange Bearing Unit | ||
Number of Mount Holes 2 | ||
Material Cast Iron | ||
Length 96mm | ||
Width 46.4mm | ||
Depth 156mm | ||
Mount Hole Size 14mm | ||
Mount Hole Centre-to-Centre 130mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

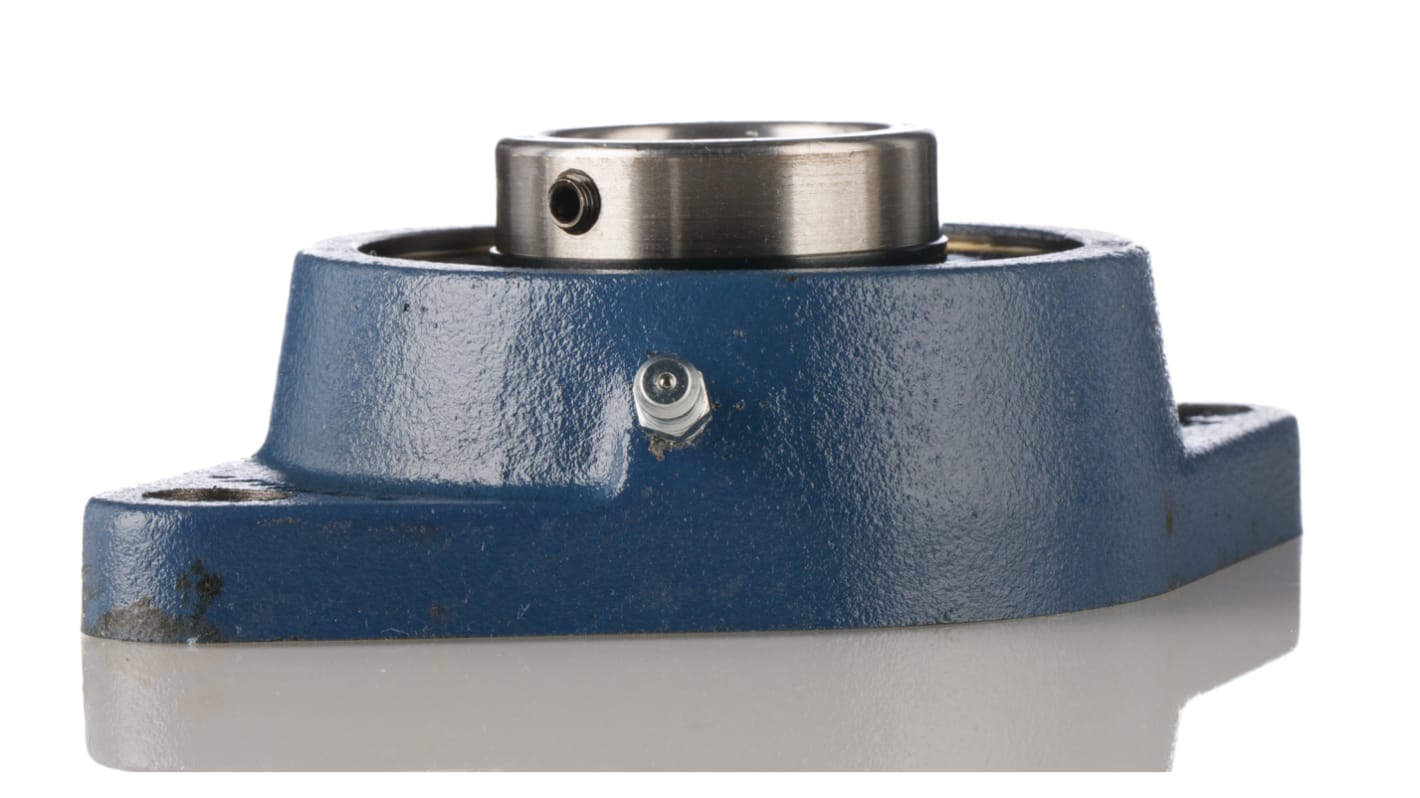

SKF 2-Hole Flange Bearing Unit, 35mm ID, 96mm Length - FYTB 35 TF
Provide additional load support for your rotary machinery with this flange bearing unit from SKF. It helps to transmit energy and machine movement across components such as rotors, turbines and gears. The unit has a central support ring that attaches to a rotary shaft for enhanced stability. For ease of installation, it also has one pre-drilled mounting hole on each side. Use set screws to secure the bearing unit to the machine housing and ensure it stays firmly in place, even in the event of heavy vibrations.
• Limiting speed of 5300rpm (rotations per minute) for use in high-speed applications
• Dynamic load rating of 25.5kN and static load rating of 15.3kN to support heavy machinery
• Dynamic load rating of 25.5kN and static load rating of 15.3kN to support heavy machinery
Applications
• Textile machines
• Medical industry
• Construction machinery
• Printing presses
• Medical industry
• Construction machinery
• Printing presses
What materials is this flange bearing unit made of?
This flange bearing unit is made of cast iron, a high-strength material that's resistant to corrosion, wear and abrasion for long-lasting performance in harsh environments. It also has nitrile rubber seals with additional flingers to keep dirt and other contaminants out of the bearing.
