Subtotal (1 unit)*
£48.64
(exc. VAT)
£58.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £48.64 |
*price indicative
- RS Stock No.:
- 146-152
- Mfr. Part No.:
- UCFE209
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Inside Diameter | 45mm | |
| Bearing Unit Type | Flange Bearing Unit | |
| Number of Mount Holes | 4 | |
| Material | Steel | |
| Length | 60mm | |
| Depth | 150mm | |
| Series | 6900 | |
Select all | ||
|---|---|---|
Brand SNR | ||
Inside Diameter 45mm | ||
Bearing Unit Type Flange Bearing Unit | ||
Number of Mount Holes 4 | ||
Material Steel | ||
Length 60mm | ||
Depth 150mm | ||
Series 6900 | ||
- COO (Country of Origin):
- CN

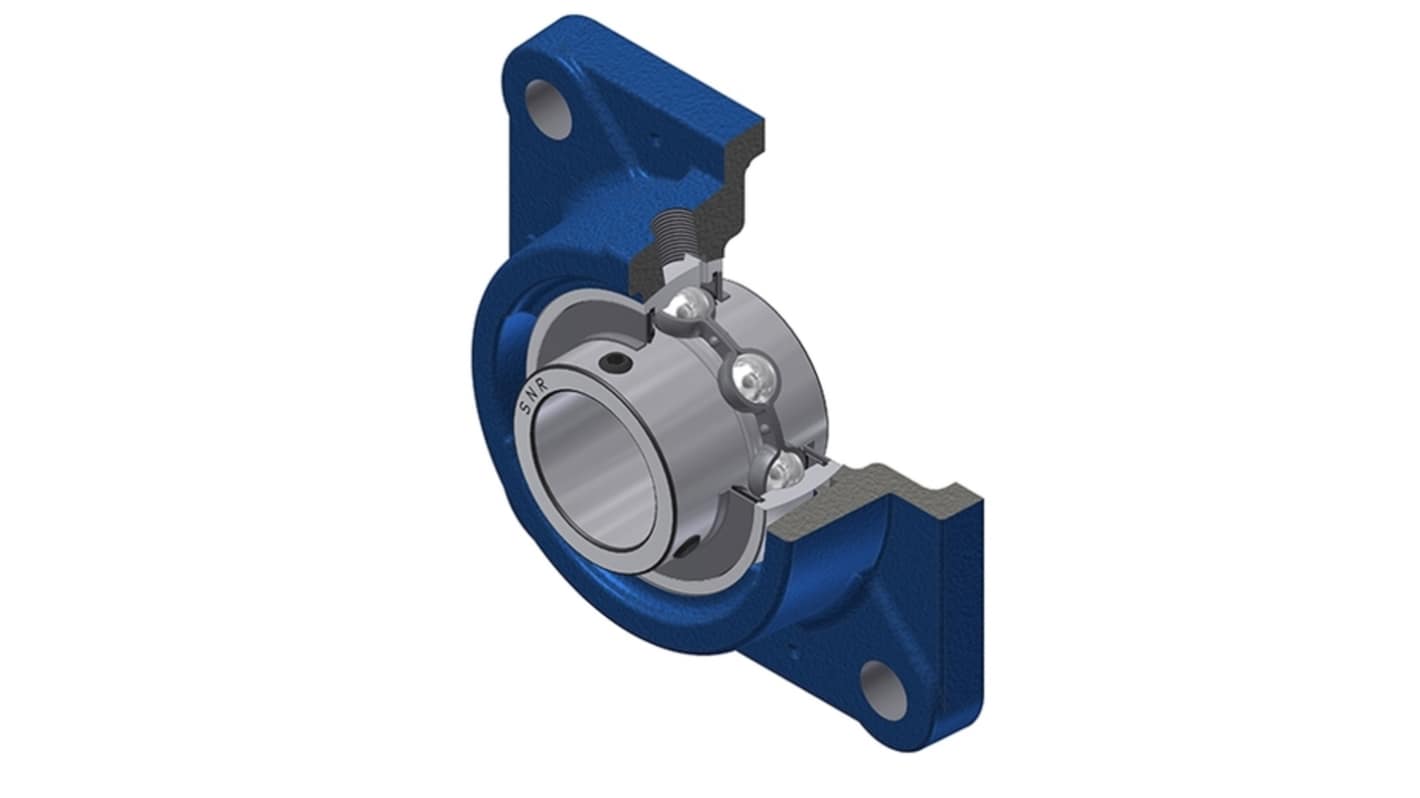

The SNR Self aligning bearing unit is constructed with a sturdy grey cast housing and a radial insert ball bearing featuring socket set screws. This design ensures secure mounting and stability, making it suitable for a range of applications where reliable performance and ease of installation are essential.
Seal with slinger
31.85 kN Dynamic load rating
20.8 kN Static load rating
2.22 kg Mass
11.5 Nm Recommended tightening torque for set screw
31.85 kN Dynamic load rating
20.8 kN Static load rating
2.22 kg Mass
11.5 Nm Recommended tightening torque for set screw
