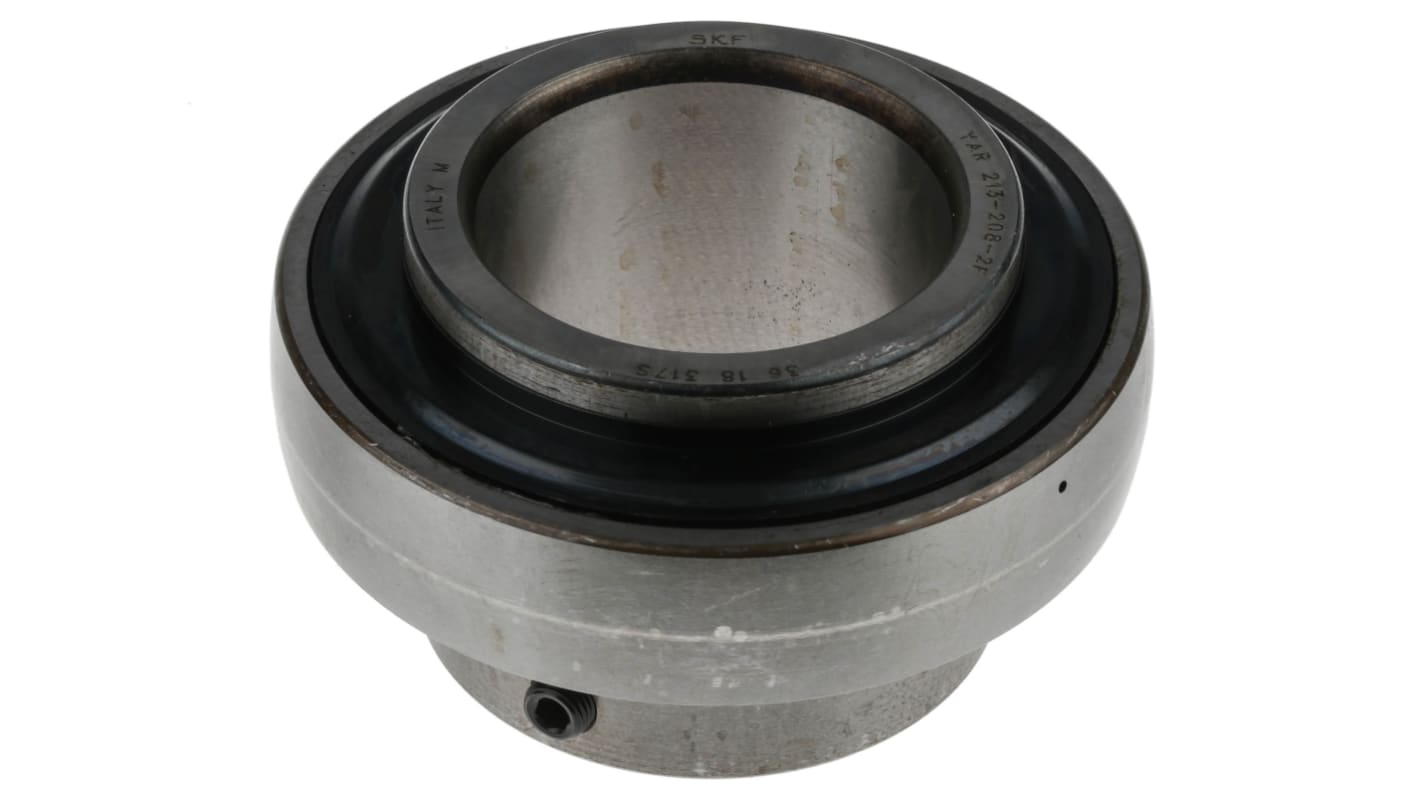

SKF Bearing Unit Insert 63.5mm ID 120mm OD YAR 213-208-2F
- RS Stock No.:
- 233-7267
- Mfr. Part No.:
- YAR 213-208-2F
- Brand:
- SKF
Subtotal (1 unit)*
£42.26
(exc. VAT)
£50.71
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 6 unit(s), ready to ship
Units | Per unit |
---|---|
1 + | £42.26 |
*price indicative
- RS Stock No.:
- 233-7267
- Mfr. Part No.:
- YAR 213-208-2F
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 63.5mm | |
Outside Diameter | 120mm | |
Material | Stainless Steel | |
Static Load Rating | 40000N | |
Dynamic Load Rating | 57200N | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 63.5mm | ||
Outside Diameter 120mm | ||
Material Stainless Steel | ||
Static Load Rating 40000N | ||
Dynamic Load Rating 57200N | ||
- COO (Country of Origin):
- IT
The SKF YAR 213-208-2F is a Insert bearing with Grub Screws has a dimension of 63.5x120x68.3 mm.Insert bearings (SKF Y-bearings) are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft. Here are examples of applications in which insert bearings might be used: Agricultural machinery, Food and beverage processing and packaging, Conveyor systems, Material handling systems, Textile equipment, Industrial fans, Special machinery, e.g. car wash systems, gym equipment, go-karts.
Quick and easy to mount
Accommodate initial misalignment
Long service life
Reduced noise and vibration levels
Accommodate initial misalignment
Long service life
Reduced noise and vibration levels
