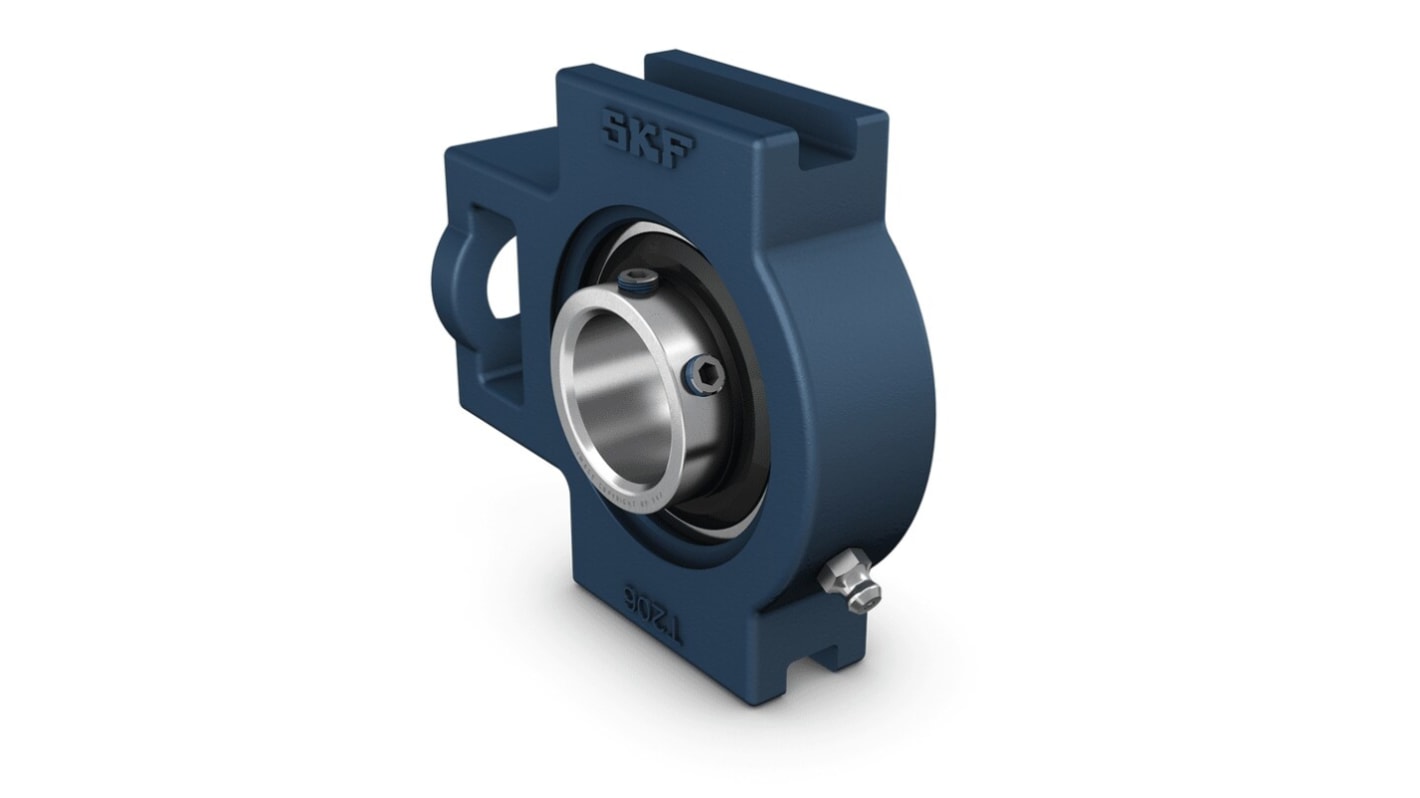

SKF Take Up Bearing 80 mm ID 237 mm OD UTC 216
- RS Stock No.:
- 230-6113
- Mfr. Part No.:
- UTC 216
- Brand:
- SKF
Subtotal (1 unit)*
£211.37
(exc. VAT)
£253.64
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £211.37 |
*price indicative
- RS Stock No.:
- 230-6113
- Mfr. Part No.:
- UTC 216
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Take Up Bearing | |
| Inside Diameter | 80mm | |
| Outside Diameter | 237mm | |
| Material | Cast Iron | |
| Static Load Rating | 5400N | |
| Locking Type | Set Screw | |
| Dynamic Load Rating | 71500N | |
| End Type | Sealed | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Overall Width | 70mm | |
| Series | UCT | |
| Limiting Speed | 1900rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Take Up Bearing | ||
Inside Diameter 80mm | ||
Outside Diameter 237mm | ||
Material Cast Iron | ||
Static Load Rating 5400N | ||
Locking Type Set Screw | ||
Dynamic Load Rating 71500N | ||
End Type Sealed | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Overall Width 70mm | ||
Series UCT | ||
Limiting Speed 1900rpm | ||
- COO (Country of Origin):
- CN
The SKF take-up ball bearing units consist of an insert bearing and a housing, and are compliant with ISO standards, North American standards, and Japanese Industrial Standards (JIS), as required by many industrial applications. In contrast, take-up units for the SKF Food Line are not compliant with these standards and are therefore considered as not standardized. The SKF take-up ball bearing unit assortment comprises insert bearing series and designs, with the main differences between The SKF take-up units being the housing design, the locking method onto the shaft, the sealing solution, and the options for end covers and back seals.
Temperature limits
Permissible speed
Lubrication
Mounting and dismounting
Designation system
