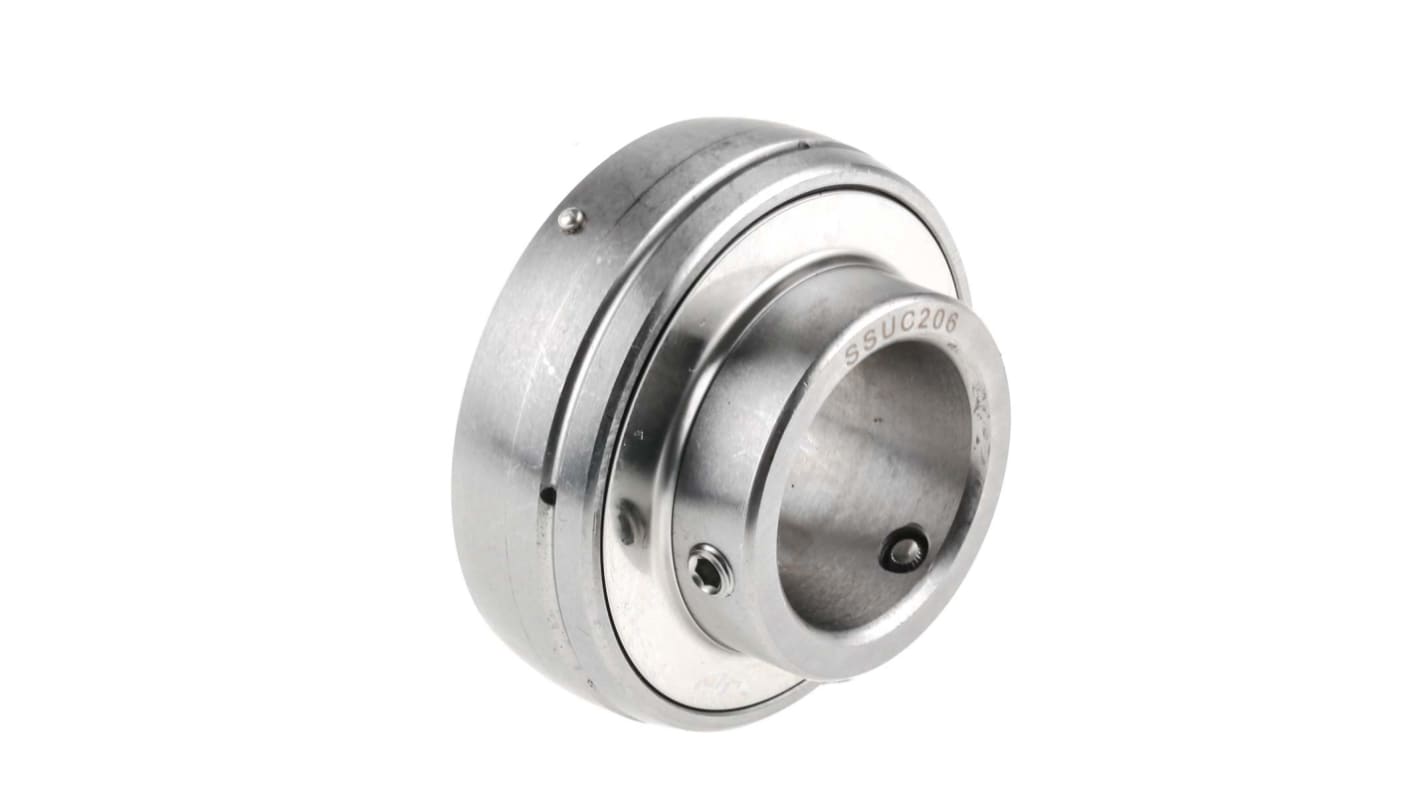

RS PRO Spherical Bearing 30 mm ID 62 mm OD UC206SS

View all Bearing Inserts
Bulk discount available

Subtotal (1 unit)*

£36.66

(exc. VAT)

£43.99

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 21 unit(s) ready to ship
  • Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£36.66
5 - 9£35.92
10 - 24£35.20
25 +£34.46

*price indicative

RS Stock No.:
750-8728
Mfr. Part No.:
UC206SS
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Inside Diameter

30 mm

Product Type

Spherical Bearing

Outside Diameter

62 mm

Material

Stainless Steel

Static Load Rating

1020kg

Locking Type

Set Screw

Dynamic Load Rating

1520kgf

Standards/Approvals

No

Overall Width

38.1mm

Series

UC

Bore Type

Round

RoHS Status: Not Applicable

COO (Country of Origin):
CN

RS PRO Spherical Bearing


Use this spherical bearing insert from RS PRO in applications where you need to change the axis of rotation. It can be installed within a bearing housing or in situ (for example on a shaft) and locked using a set screw.

The bearing is made from rust-resistant, hardwearing stainless steel. It has an outside diameter of 62 mm and an inside diameter of 30 mm. The dynamic load rating is 1,520 kgf (kilogram-force) and the static load rating is 1,020 kgf.

As part of the tried and tested RS PRO range, this component has undergone strict quality controls to ensure a safe and reliable product. It complies with the Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. Spherical bearings of this type are typically used in drive shafts, robotics and a range of heavy machinery.

Features and Benefits


• Spherical bearing

• Made from stainless steel

• Dynamic load rating of 1,520 kgf

• Static load rating of 1,020 kgf

• Weight of 320 g

• Inside diameter of 30 mm

• Outside diameter of 62 mm

• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
