SKF Take Up Bearing 65mm ID 82.5mm OD Y/UCT 213/H

Subtotal (1 unit)*

£96.59

(exc. VAT)

£115.91

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£96.59

*price indicative

RS Stock No.:
230-6111
Mfr. Part No.:
Y/UCT 213/H
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Inside Diameter

65mm

Outside Diameter

82.5mm

Material

Cast Iron

Static Load Rating

40000N

Dynamic Load Rating

57200N

COO (Country of Origin):
IT

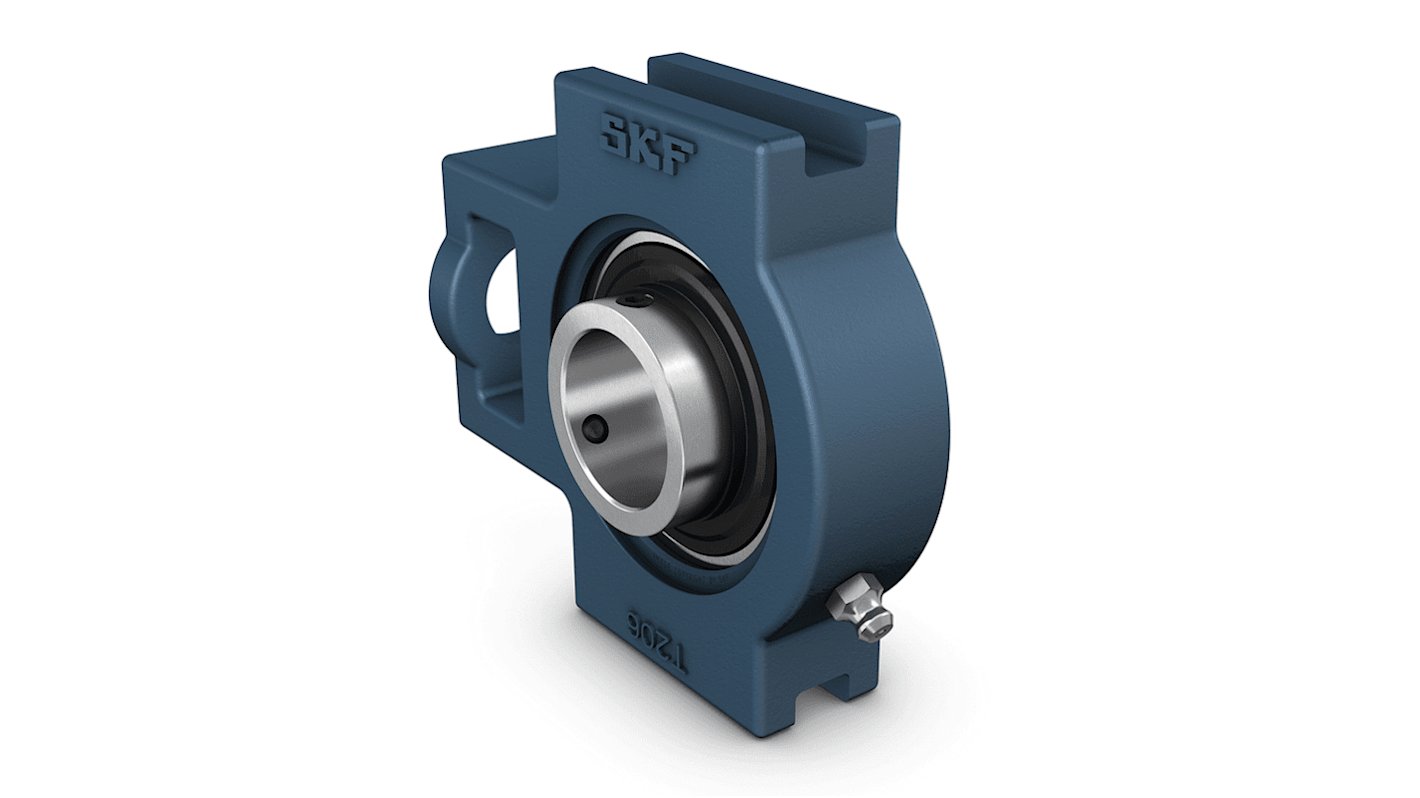

SKF Take-Up Bearing, Cast Iron Housing, 2350r/min Limiting Speed, 65mm ID, 82.5mm OD - Y/UCT 213/H


Need a rotating component that lets you tweak the position of your shaft? This take-up bearing from SKF has you covered. It's made up of an insert bearing set in a housing that accommodates adjustment so you can count on precise alignment. The inner ring extends on both sides for quick mounting on the shaft. To keep the inner ring stable, you can simply tighten the two set screws through it. A 120° angle of separation between the screws offers added stability, helping to balance the mechanical load.

Features & Benefits


• Limiting speed of 2,350r/min to withstand high-speed rotation
• Relubrication hole for simple refilling with grease
• Seal and flinger on both sides to prevent contamination from dust and moisture
• Basic dynamic load rating of 57.2kN and static load rating of 40kN, so it's suitable for heavy-duty tasks

Applications


• Oil and gas industry
• Aerospace engineering
• Bottling plants

What material is this assembly made from?


The insert bearing is made from rugged steel that stands up to impacts and corrosion. For added durability, the housing is made from wear-resistant cast iron.
