SKF Bearing Insert 50 mm ID 90 mm OD YEL 210-2F
- RS Stock No.:
- 209-4249
- Mfr. Part No.:
- YEL 210-2F
- Brand:
- SKF
Subtotal (1 unit)*
£66.33
(exc. VAT)
£79.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.33 |
*price indicative
- RS Stock No.:
- 209-4249
- Mfr. Part No.:
- YEL 210-2F
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 50 mm | |
| Product Type | Bearing Insert | |
| Outside Diameter | 90 mm | |
| Material | Stainless Steel | |
| Static Load Rating | 23200N | |
| Dynamic Load Rating | 35100N | |
| Standards/Approvals | No | |
| Overall Width | 62.7mm | |
| Series | YEL 210-2F | |
| Limiting Speed | 4000rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 50 mm | ||
Product Type Bearing Insert | ||
Outside Diameter 90 mm | ||
Material Stainless Steel | ||
Static Load Rating 23200N | ||
Dynamic Load Rating 35100N | ||
Standards/Approvals No | ||
Overall Width 62.7mm | ||
Series YEL 210-2F | ||
Limiting Speed 4000rpm | ||
- COO (Country of Origin):
- IT

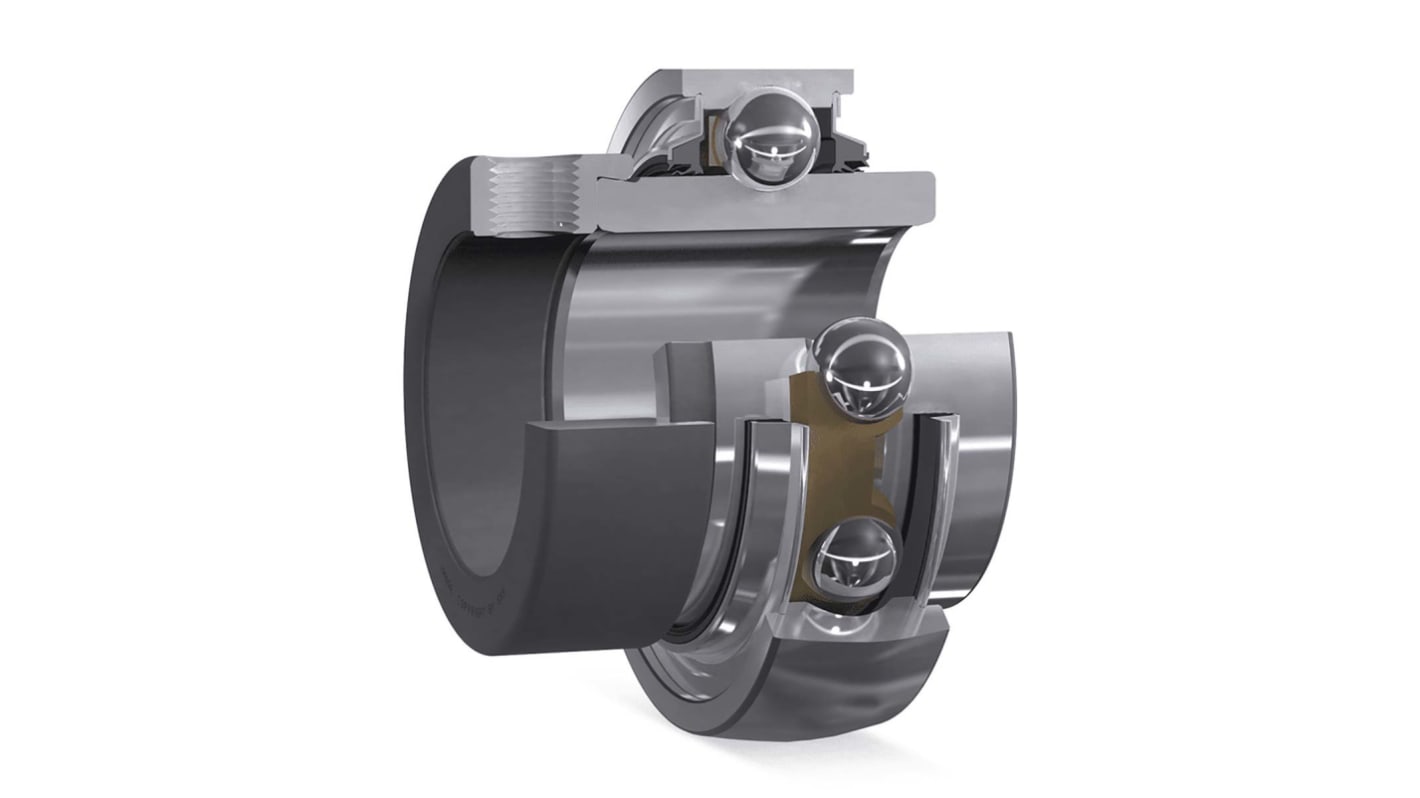

SKF Bearing Insert, 50mm Inside Diameter, 90mm Outside Diameter - YEL 210-2F
This bearing insert provides a Compact bearing solution for rotating shafts in industrial equipment, designed to be mounted within housings for straightforward shaft support and alignment. It is intended for applications where a cylindrical bore Interface and a robust locking method are required, offering a combination of material strength and rotational capability appropriate for automation and mechanical systems.
Features & Benefits
• Cylindrical bore for straightforward shaft seating and alignment
• Eccentric locking collar ensures secure shaft clamping during operation
• Steel construction resists deformation under sustained load
• Static load capacity of 23,200 N permits significant stationary loads
• Eccentric locking collar ensures secure shaft clamping during operation
• Steel construction resists deformation under sustained load
• Static load capacity of 23,200 N permits significant stationary loads
Applications
• Suitable for conveyor drive shafts in automated assembly lines
• Ideal for motor shaft support in industrial fans and blowers
• Used with gearbox outputs in light- to medium-duty transmissions
• Can be used for rotating components in electronic equipment enclosures
• Used for bearing replacement in mechanical plant maintenance
• Ideal for motor shaft support in industrial fans and blowers
• Used with gearbox outputs in light- to medium-duty transmissions
• Can be used for rotating components in electronic equipment enclosures
• Used for bearing replacement in mechanical plant maintenance
Which operating speeds can be expected without derating?
The unit is specified for operation up to 4000 r/min under normal operating conditions.
How does the load capacity affect selection for dynamic applications?
The dynamic load rating of 35,100 N indicates the bearing’s Ability to withstand moving loads and fatigue-life considerations during cyclic operation.
How wide is the insert for determining housing fit?
The overall width is 62.7mm, which is used to confirm compatibility with existing housings and mounting envelopes.
