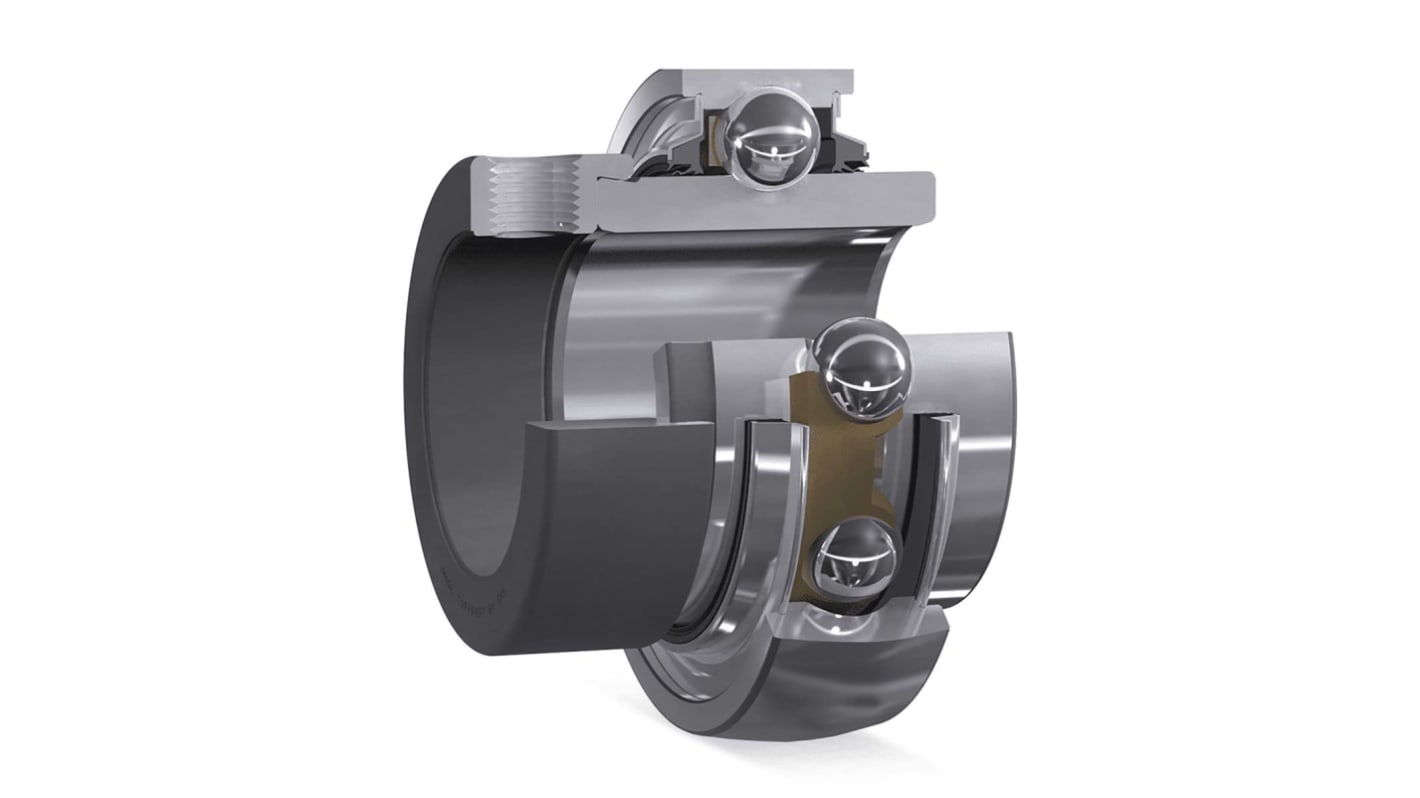

SKF Bearing Unit Insert 35 mm ID 72 mm OD YEL 207-2RF/VL065
- RS Stock No.:
- 209-4246
- Mfr. Part No.:
- YEL 207-2RF/VL065
- Brand:
- SKF
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 209-4246
- Mfr. Part No.:
- YEL 207-2RF/VL065
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Bearing Unit Insert | |
| Material | Stainless Steel | |
| Static Load Rating | 15300N | |
| Dynamic Load Rating | 25500N | |
| Standards/Approvals | No | |
| Series | YEL 207-2RF/VL065 | |
| Overall Width | 51.1mm | |
| Limiting Speed | 3200rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Bearing Unit Insert | ||
Material Stainless Steel | ||
Static Load Rating 15300N | ||
Dynamic Load Rating 25500N | ||
Standards/Approvals No | ||
Series YEL 207-2RF/VL065 | ||
Overall Width 51.1mm | ||
Limiting Speed 3200rpm | ||
- COO (Country of Origin):
- IT
SKF Bearing Unit Insert, 35mm Bore, 25500N Dynamic Load Rating - YEL 207-2RF/VL065
This bearing unit insert supplies rotational support for shafts in industrial assemblies, providing a Compact solution for mounted bearing requirements. It is intended for use where a cylindrical bore insert is needed and where secure shaft clamping is required for medium-duty rotational applications in automation and mechanical systems.
Features & Benefits
• 25500 N dynamic load capacity delivers extended operational life
• 15300 N static load rating supports sustained radial loading
• Eccentric locking collar ensures swift, backlash-free shaft fixation
• 3200 r/min limiting speed permits moderate-speed usage
• Steel construction resists deformation under load
• 15300 N static load rating supports sustained radial loading
• Eccentric locking collar ensures swift, backlash-free shaft fixation
• 3200 r/min limiting speed permits moderate-speed usage
• Steel construction resists deformation under load
Applications
• Suitable for conveyor drive shafts in automated production lines
• Ideal for motor and gearbox interfaces in electrical equipment
• Used with indexing mechanisms in assembly automation systems
• Can be used for rotating modules in electronics manufacturing rigs
• Ideal for motor and gearbox interfaces in electrical equipment
• Used with indexing mechanisms in assembly automation systems
• Can be used for rotating modules in electronics manufacturing rigs
What bore configuration does it accept and how does that affect mounting?
It accepts a cylindrical bore shaft, which allows direct slip-fit insertion and alignment before the eccentric collar is tightened for clamping.
How does the locking mechanism operate during installation?
The eccentric collar is rotated to generate radial pressure against the shaft, producing a clamped connection without additional screws or set rings.
What should be considered regarding external dimensions for housing design?
The outer diameter measures 72mm so housings must accommodate this envelope while allowing access to the collar for tightening.
How does material choice influence compatibility with typical industrial environments?
The steel body provides rigidity and load-bearing capability suitable for applications where structural strength and resistance to distortion are required.
