SKF Bearing Heater 20mm To 400mm Bore Size TIH 100M/MV
- RS Stock No.:
- 238-9403
- Mfr. Part No.:
- TIH 100M/MV
- Brand:
- SKF
Subtotal (1 unit)*
£4,699.17
(exc. VAT)
£5,639.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £4,699.17 |
*price indicative
- RS Stock No.:
- 238-9403
- Mfr. Part No.:
- TIH 100M/MV
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Supply Voltage | 400 To 460V | |
Maximum Bore Size | 400mm | |
Minimum Bore Size | 20mm | |
Select all | ||
---|---|---|
Brand SKF | ||
Supply Voltage 400 To 460V | ||
Maximum Bore Size 400mm | ||
Minimum Bore Size 20mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- NL

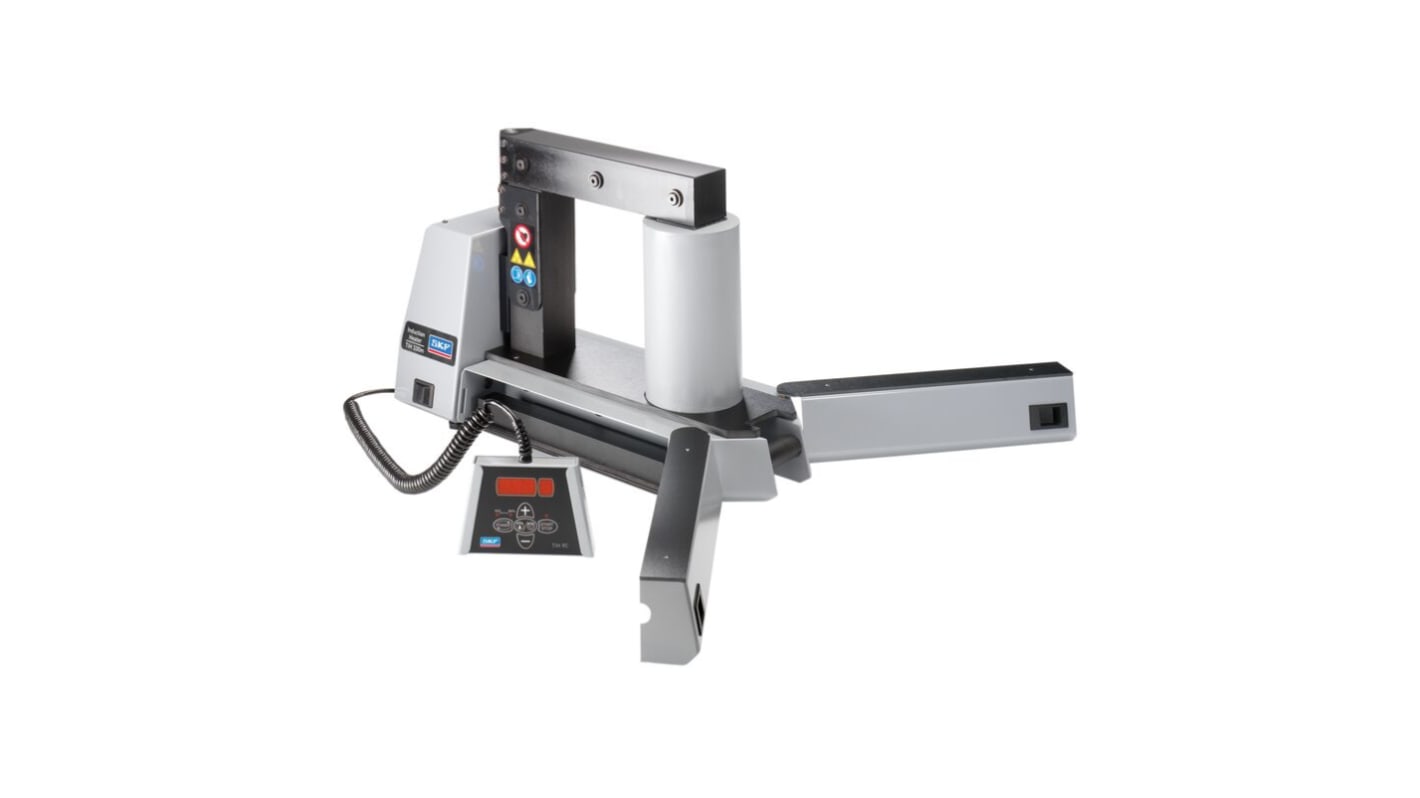

SKF Bearing Heater, 400 to 460V Operating Voltage, 4.6kVA Maximum Power Consumption - TIH 100M/MV
Make your parts easy to mount with this bearing heater from SKF. The handy device uses induction to expand your bearings' inner rings so they slide more smoothly when installed on a shaft. With a wide heating range between +20°C and +250°C, this flexible machine offers broad functionality. Unfolding its arms provides extra support for large bearings with diameters up to 400mm. Monitoring this unit is a piece of cake, thanks to its integrated operating display.
Features & Benefits
• Coil positioned on the outside to save energy and ensure a shorter heating time
• Built-in magnetic temperature probe and mode pre-set stop bearings overheating
• Swivelling boom mechanism to assist with loading and unloading the device
• Integrated storage space for smaller yokes to prevent them from getting lost or damaged
• Built-in magnetic temperature probe and mode pre-set stop bearings overheating
• Swivelling boom mechanism to assist with loading and unloading the device
• Integrated storage space for smaller yokes to prevent them from getting lost or damaged
Applications
• Manufacturing industry
• Power transmission
• Robotic systems
• Centrifugal pump production
• Power transmission
• Robotic systems
• Centrifugal pump production
What's the maximum bearing weight this heater can support?
This product reliably supports bearings with a weight of up to 120kg, assuring you that it's robust.
Is this unit portable?
Yes. This bearing heater has carry handles, making it easy to move around your workshop.
