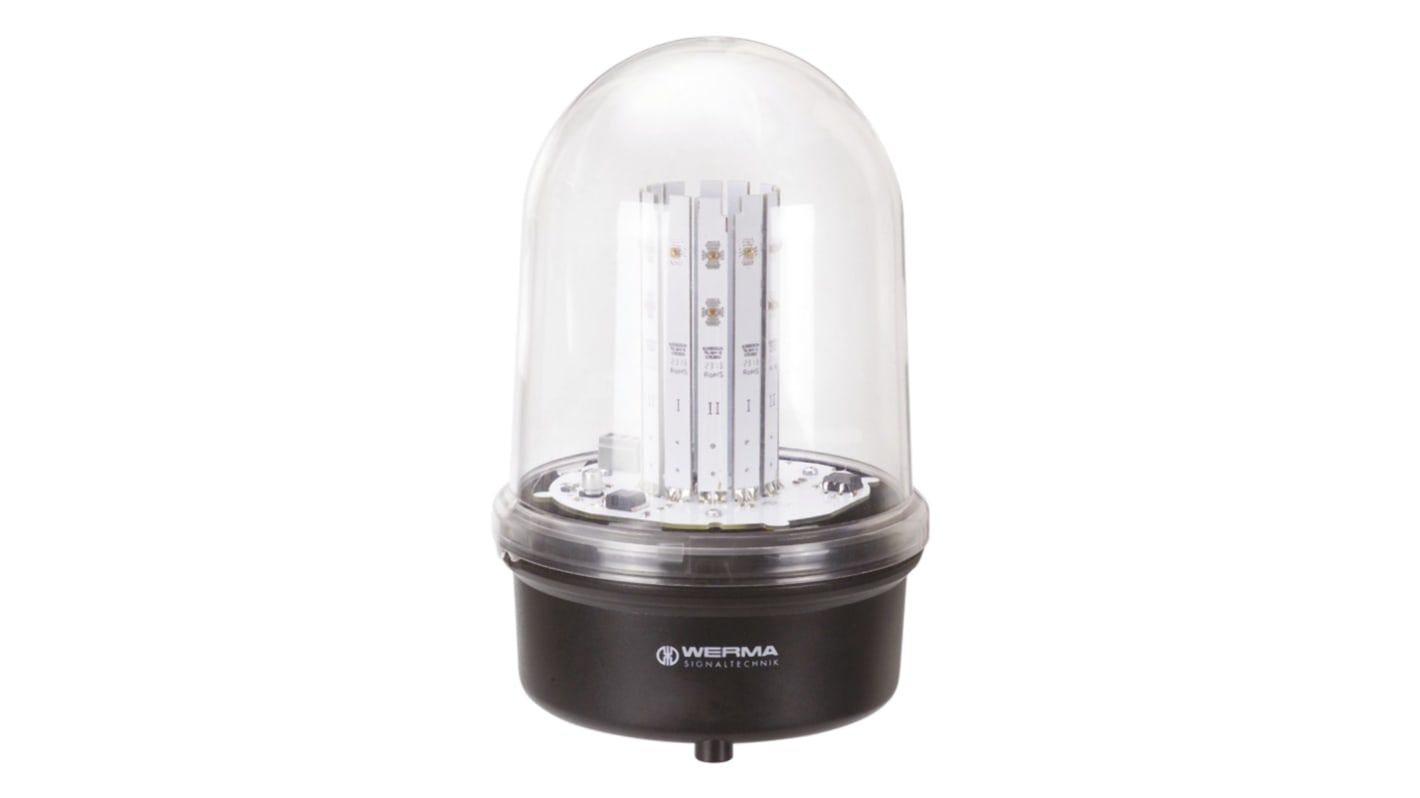

Werma BM 280 Series Red Steady Beacon, 230 V ac, Base Mount, LED Bulb, IP65
- RS Stock No.:
- 849-5377
- Mfr. Part No.:
- 280.470.68
- Brand:
- Werma
4 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£428.26
(exc. VAT)
£513.91
(inc. VAT)
Units | Per unit |
---|---|
1 - 9 | £428.26 |
10 - 14 | £406.50 |
15 + | £392.99 |
- RS Stock No.:
- 849-5377
- Mfr. Part No.:
- 280.470.68
- Brand:
- Werma
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Werma LED Obstruction Light, 280 Series
Obstruction lighting is a means of ensuring flight safety by marking aviation obstacles with electrically operated beacons. High buildings, factory chimneys, towers, masts etc. above a certain height in the vicinity of airports and airfields must be equipped with obstruction lights.
LED obstruction light, certified in accordance with German BMVBW regulations
For use as Low-intensity Obstruction Lights: 678-2931 & 678-2935 are Type A and 849-5368 & 849-5377 are Type B in accordance with ICAO Annex 14
Extremely high light intensity: 15 cd / 32 cd
High impact resistance to 20 Joules
IP65 protection rating
For use as Low-intensity Obstruction Lights: 678-2931 & 678-2935 are Type A and 849-5368 & 849-5377 are Type B in accordance with ICAO Annex 14
Extremely high light intensity: 15 cd / 32 cd
High impact resistance to 20 Joules
IP65 protection rating
WERMA Beacon, Red LED Colour, Steady Light Effect - BM 280 Series - 280.470.68
Install this WERMA obstruction beacon on tall structures to increase their visibility to nearby air traffic. Its red LED bulb produces a steady, bright light, making it easy to see at night and in poor weather. As its lens and housing are made of polycarbonate, this device is durable and UV-stable to ensure a long service life in demanding conditions. Thanks to its low current consumption of 200mA, this unit is an energy-efficient signalling solution.
Features & Benefits
• Wide operating temperature range between -30°C and +50°C for use in harsh conditions
• Compact dimensions of 218 (height) x 142mm (diameter) to take up minimal space
• Compact dimensions of 218 (height) x 142mm (diameter) to take up minimal space
Applications
• High buildings
• Factory chimneys
• Towers and masts
• Cranes
• Factory chimneys
• Towers and masts
• Cranes
What's the voltage rating of this beacon?
This unit has a voltage rating of 230V AC for use in low-power systems.
Specifications
Attribute | Value |
---|---|
Supply Voltage | 230 V ac |
Light Effect | Steady |
Lens Colour | Red |
Mounting Style | Base Mount |
Bulb Type | LED |
Current Consumption | 200mA |
Current Type | AC |
Base Diameter | 142mm |
Housing Colour | Black |
Lamp Included | Yes |
Series | BM 280 |
Height | 218mm |
IP Rating | IP65 |
Maximum Temperature | +50°C |
Standards Met | CE, EAC |
Minimum Temperature | -30°C |
