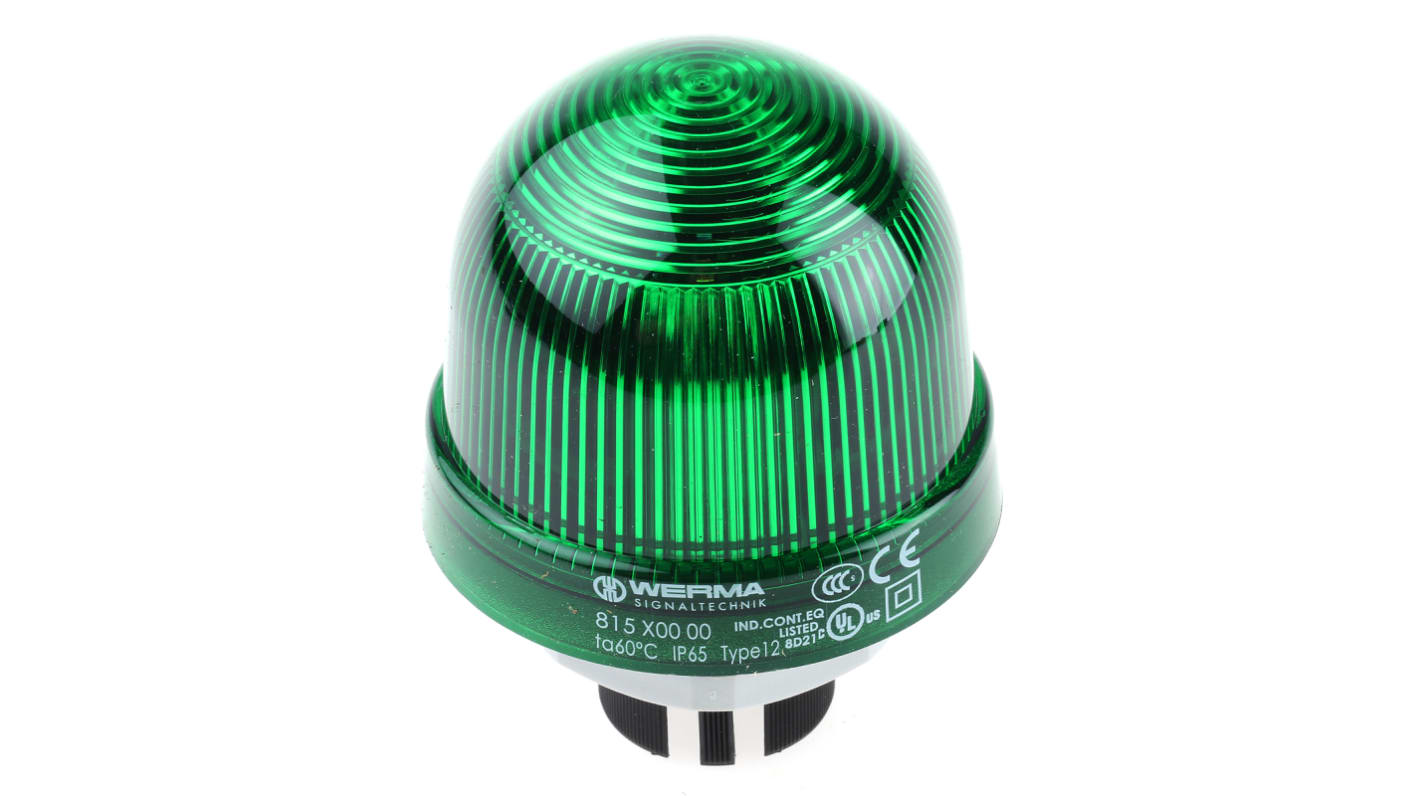

Werma 815 Series Green Steady Beacon 230V ac/dc, Incandescent Bulb, IP65

RS Stock No.:: 678-2944
Distrelec Article No.:: 133-66-115
Mfr. Part No.:: 815.200.00
Brand:: Werma

Werma 815 Series Green Steady Beacon 230V ac/dc, Incandescent Bulb, IP65

Subtotal (1 unit)*

£48.58

(exc. VAT)

£58.30

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

6 unit(s) shipping from 09 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£48.58

*price indicative

RS Stock No.:: 678-2944
Distrelec Article No.:: 133-66-115
Mfr. Part No.:: 815.200.00
Brand:: Werma

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Werma
	Product Type	Beacon
	Light Effect	Steady
	Lens Colour	Green
	Housing Material	ABS, Polycarbonate
	Bulb Type	Incandescent
	Current Consumption	125 mA
	Current Type	AC/DC
	Base Diameter	75mm
	Housing Colour	Black
	Maximum Supply Voltage	230V ac/dc
	Lamp Included	No
	Minimum Operating Temperature	-20°C
	Series	815
	Maximum Operating Temperature	50°C
	Height	97mm
	IP Rating	IP65
	Standards/Approvals	CE Certified UKCA

	Select all
	Brand Werma
	Product Type Beacon
	Light Effect Steady
	Lens Colour Green
	Housing Material ABS, Polycarbonate
	Bulb Type Incandescent
	Current Consumption 125 mA
	Current Type AC/DC
	Base Diameter 75mm
	Housing Colour Black
	Maximum Supply Voltage 230V ac/dc
	Lamp Included No
	Minimum Operating Temperature -20°C
	Series 815
	Maximum Operating Temperature 50°C
	Height 97mm
	IP Rating IP65
	Standards/Approvals CE Certified UKCA

COO (Country of Origin):: DE

WERMA Beacon, 97mm Height, Replaceable Bulb - EM 815 Series - 815.200.00

Direct traffic along your production line without a hitch using this beacon from WERMA. When an incandescent bulb is inserted, it glows brightly to stand out in everyday work environments. The product's dome shape sends light in all directions for efficient signalling. As the beacon's lamp is replaceable, it's sure to keep shining for the long haul.

Features & Benefits

• Meets EN 50014 standards for effective resistance to impacts of 20J

• Twist-locking mechanism reduces the risk of tampering

• IP65 rating signals protection against dust and low-pressure water jets for reliable performance in harsh settings

Applications

• Industrial automation

• Logistics industry

• Renewable energy production

How do I connect this beacon to my power supply?

This unit has screw terminals, so it's a breeze to connect without the need for special tools.

Static High Beacon - 815 Series

Body constructed from ABS and lens Polycarbonate. All units are IP65.

Bulbs must be purchased seperately

Polycarbonate domes have a shock resistance of 20J

Vandal proof construction

Tamper-proof: bulbe change via rear access with bayonet mechanism

37mm mounting hole
