Werma 280 Series Red Steady Beacon, 12 → 50 V dc, Surface Mount, LED Bulb
- RS Stock No.:
- 678-2931
- Mfr. Part No.:
- 28041055
- Brand:
- Werma

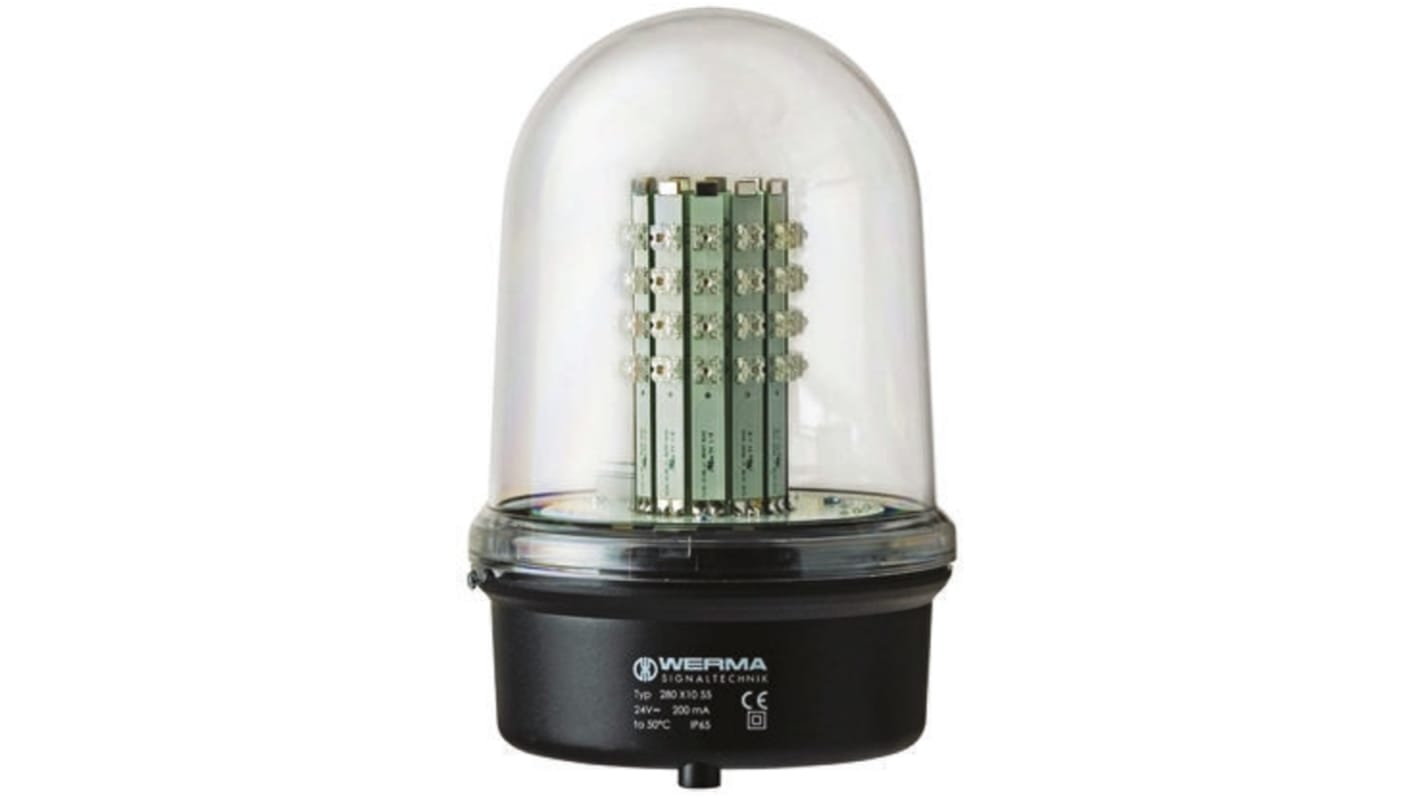

Image representative of range
Discontinued
- RS Stock No.:
- 678-2931
- Mfr. Part No.:
- 28041055
- Brand:
- Werma
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Werma | |
| Supply Voltage | 12 → 50 V dc | |
| Light Effect | Steady | |
| Lens Colour | Red | |
| Mounting Style | Surface Mount | |
| Bulb Type | LED | |
| Current Type | DC | |
| Base Diameter | 142mm | |
| Housing Colour | Black | |
| Series | 280 | |
| Height | 218mm | |
| Maximum Temperature | +50°C | |
| Minimum Temperature | -30°C | |
| Select all | ||
|---|---|---|
Brand Werma | ||
Supply Voltage 12 → 50 V dc | ||
Light Effect Steady | ||
Lens Colour Red | ||
Mounting Style Surface Mount | ||
Bulb Type LED | ||
Current Type DC | ||
Base Diameter 142mm | ||
Housing Colour Black | ||
Series 280 | ||
Height 218mm | ||
Maximum Temperature +50°C | ||
Minimum Temperature -30°C | ||
Werma LED Obstruction Light, 280 Series
Obstruction lighting is a means of ensuring flight safety by marking aviation obstacles with electrically operated beacons. High buildings, factory chimneys, towers, masts etc. above a certain height in the vicinity of airports and airfields must be equipped with obstruction lights.
LED obstruction light, certified in accordance with German BMVBW regulations
For use as Low-intensity Obstruction Lights: 678-2931 & 678-2935 are Type A and 849-5368 & 849-5377 are Type B in accordance with ICAO Annex 14
Extremely high light intensity: 15 cd / 32 cd
High impact resistance to 20 Joules
IP65 protection rating
For use as Low-intensity Obstruction Lights: 678-2931 & 678-2935 are Type A and 849-5368 & 849-5377 are Type B in accordance with ICAO Annex 14
Extremely high light intensity: 15 cd / 32 cd
High impact resistance to 20 Joules
IP65 protection rating
