e2s L101X Series Red Flashing Beacon 12V ac/dc, Xenon Bulb Surface, IP66

RS Stock No.:: 617-3536
Mfr. Part No.:: L101XDC012BW/R
Brand:: e2s

e2s L101X Series Red Flashing Beacon 12V ac/dc, Xenon Bulb Surface, IP66

View all Beacons

Subtotal (1 unit)*

£84.14

(exc. VAT)

£100.97

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£84.14

*price indicative

RS Stock No.:: 617-3536
Mfr. Part No.:: L101XDC012BW/R
Brand:: e2s

Specifications

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	e2s
	Product Type	Beacon
	Light Effect	Flashing
	Lens Colour	Red
	Housing Material	ABS, Polycarbonate
	Bulb Type	Xenon
	Current Type	DC
	Current Consumption	500 mA
	Mount Type	Surface
	Housing Colour	White
	Lamp Included	Yes
	Maximum Supply Voltage	12V ac/dc
	Minimum Operating Temperature	-25°C
	Series	L101X
	Maximum Operating Temperature	55°C
	Height	83mm
	IP Rating	IP66
	Standards/Approvals	VdS, UL, EN, cUL

	Select all
	Brand e2s
	Product Type Beacon
	Light Effect Flashing
	Lens Colour Red
	Housing Material ABS, Polycarbonate
	Bulb Type Xenon
	Current Type DC
	Current Consumption 500 mA
	Mount Type Surface
	Housing Colour White
	Lamp Included Yes
	Maximum Supply Voltage 12V ac/dc
	Minimum Operating Temperature -25°C
	Series L101X
	Maximum Operating Temperature 55°C
	Height 83mm
	IP Rating IP66
	Standards/Approvals VdS, UL, EN, cUL

COO (Country of Origin):: GB

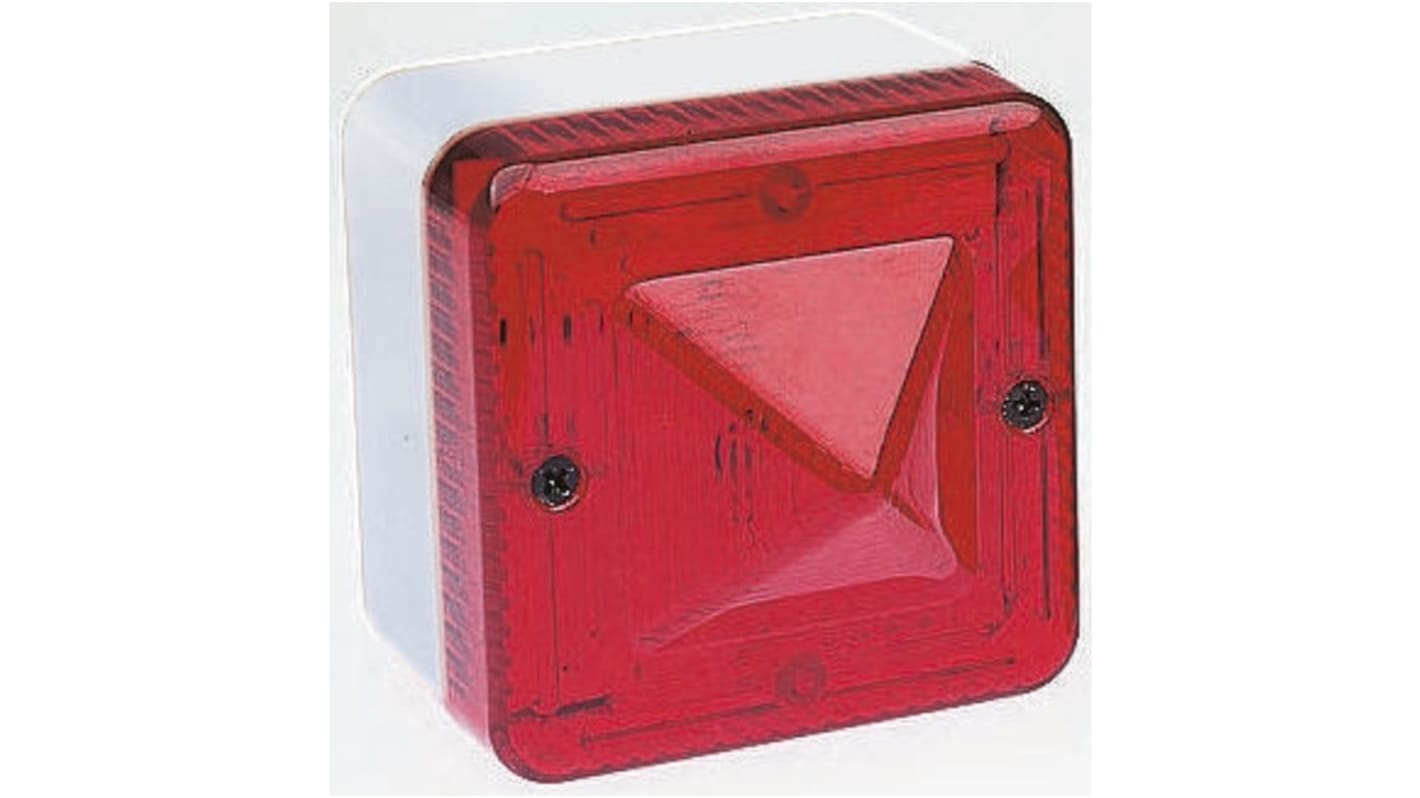

E2S Xenon Beacon - L101X

This L101X by E2S is a compact and robust 5 Joule Xenon strobe beacon, which has been created and designed for a variety of signalling applications in different locations including fire, security and process control. The beacon is CPR compliant and approved for use in fire alarm signalling.

Features and Benefits

• The L101X features an automatically synchronised flash rate of 60 flashes per minute, with a user-selectable 90 flashes per minute and double-strike flash rate on DC voltage versions

• With an ingress protection rating of IP66, the device is protected against dust and water

• The back boxes are available with or without mounting lugs

• The beacons can be stacked to provide a multi-signal unit and can be combined with both AlertAlarm and Senora audible signals

• The Xenon tube lamp can be replaced by the user, with multiple selectable flash rates

• Pluggable terminals

• In and out terminals

Applications

Xenon beacons are an efficient signalling solution in a range of industrial applications. Available in a variety of colours, they can signal hazards, emergencies and more in environments such as:

• Emergency exits

• Warehouses and factories

• Machinery

• Walkways

Approvals

• CPD approval: 0786-CPD-21247 to EN54-23:2010.

• VdS certificate: G211077 (24 & 48Vdc versions).

• UL & cULs approved: General signalling use.

• GOST-R certificate: POCC GB.JB05.H00144.
