Werma EM 801 Series Red Steady Beacon 24V ac/dc, LED Bulb, IP65

RS Stock No.:: 382-7460
Mfr. Part No.:: 801.100.75
Brand:: Werma

Werma EM 801 Series Red Steady Beacon 24V ac/dc, LED Bulb, IP65

Subtotal (1 unit)*

£88.25

(exc. VAT)

£105.90

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

74 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£88.25

*price indicative

RS Stock No.:: 382-7460
Mfr. Part No.:: 801.100.75
Brand:: Werma

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Werma
	Product Type	Beacon
	Light Effect	Steady
	Lens Colour	Red
	Housing Material	ABS Blend, Polycarbonate
	Bulb Type	LED
	Current Type	AC/DC
	Current Consumption	45 mA
	Base Diameter	57mm
	Housing Colour	Black
	Terminal Type	2 Wire
	Maximum Supply Voltage	24V ac/dc
	Lamp Included	Yes
	Series	EM 801
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	50°C
	Height	85mm
	IP Rating	IP65
	Standards/Approvals	EN 60598/VDE 0711 T1

	Select all
	Brand Werma
	Product Type Beacon
	Light Effect Steady
	Lens Colour Red
	Housing Material ABS Blend, Polycarbonate
	Bulb Type LED
	Current Type AC/DC
	Current Consumption 45 mA
	Base Diameter 57mm
	Housing Colour Black
	Terminal Type 2 Wire
	Maximum Supply Voltage 24V ac/dc
	Lamp Included Yes
	Series EM 801
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 50°C
	Height 85mm
	IP Rating IP65
	Standards/Approvals EN 60598/VDE 0711 T1

COO (Country of Origin):: DE

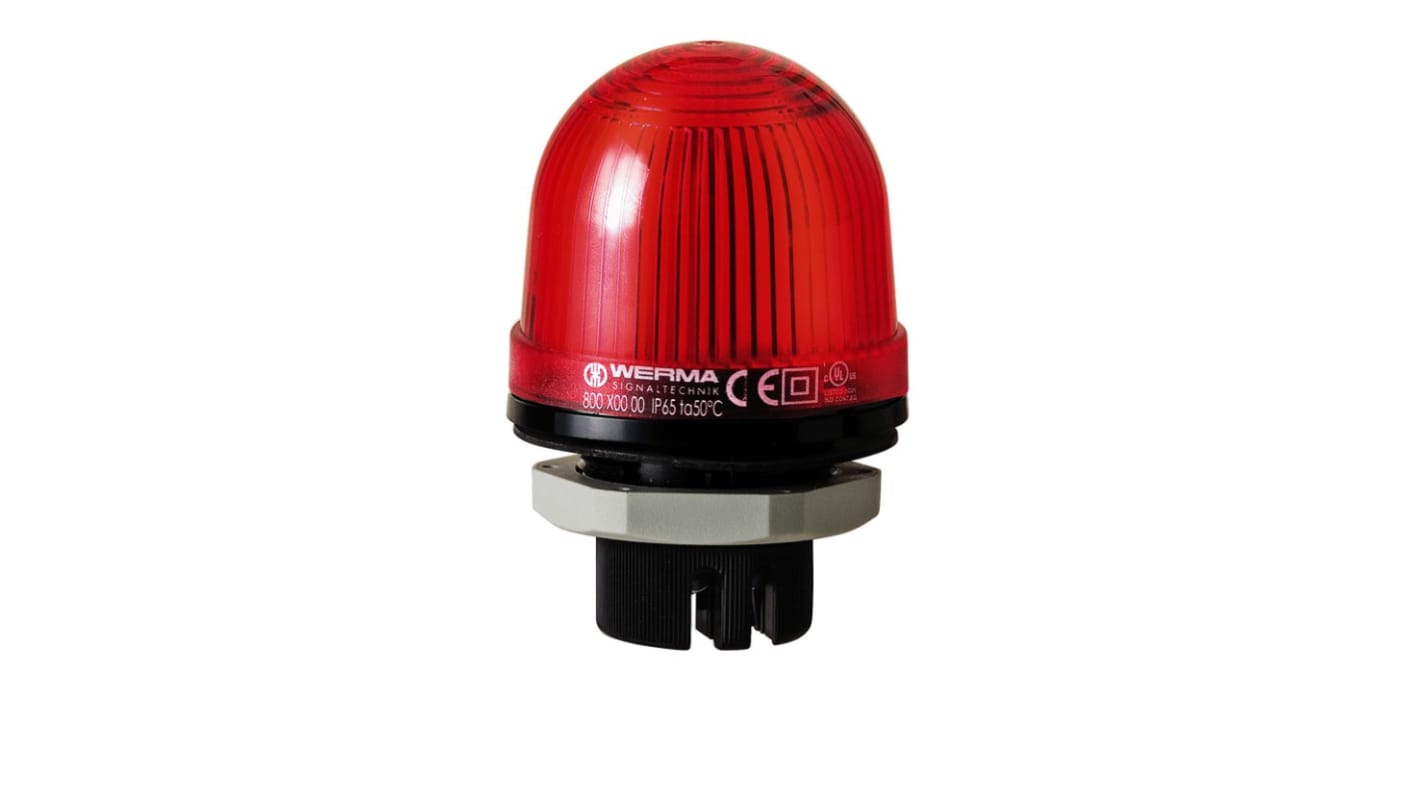

WERMA Red LED Beacon, Panel Mount, 24V AC/DC - EM 801 Series - 801.100.75

Quickly alert workers to hazards with this red beacon from WERMA. The efficient LED (light-emitting diode) bulb uses minimal power and gives out a constant bright light for a clear warning signal. This beacon has a diameter of 57mm, making it a compact solution that won't take up too much space on your panel. For flexibility, the circular base can also be pole-mounted, so you can use the unit as a freestanding beacon or increase the height to make it visible above machinery.

Features and Benefits

• Polycarbonate (PC) dome is shock and shatter-resistant for added protection

• Long service life of 100,000 hours for long-lasting and reliable performance

• IP65 (ingress protection) rating indicates protection against dust and low-pressure water jets

• Wide operating temperature range of -20°C to +50°C makes it suitable for demanding industrial applications

Application Information

• Machine and equipment safety

• Conveyor belt and production line automation

• Mechanical engineering

Is this beacon simple to install?

For ease of installation, simply turn off your power supply, feed your wire terminals into the handy slots on the base and screw in place.

Static Installation Beacons - 801 Series

Body constructed from ABS and lens Polycarbonate. All units are IP65.

Suitable for panel mounting applications

Polycarbonate caps have a shock resistance of 20J according to ENV50014

Tube mounting adaptor available

Vandal proof
