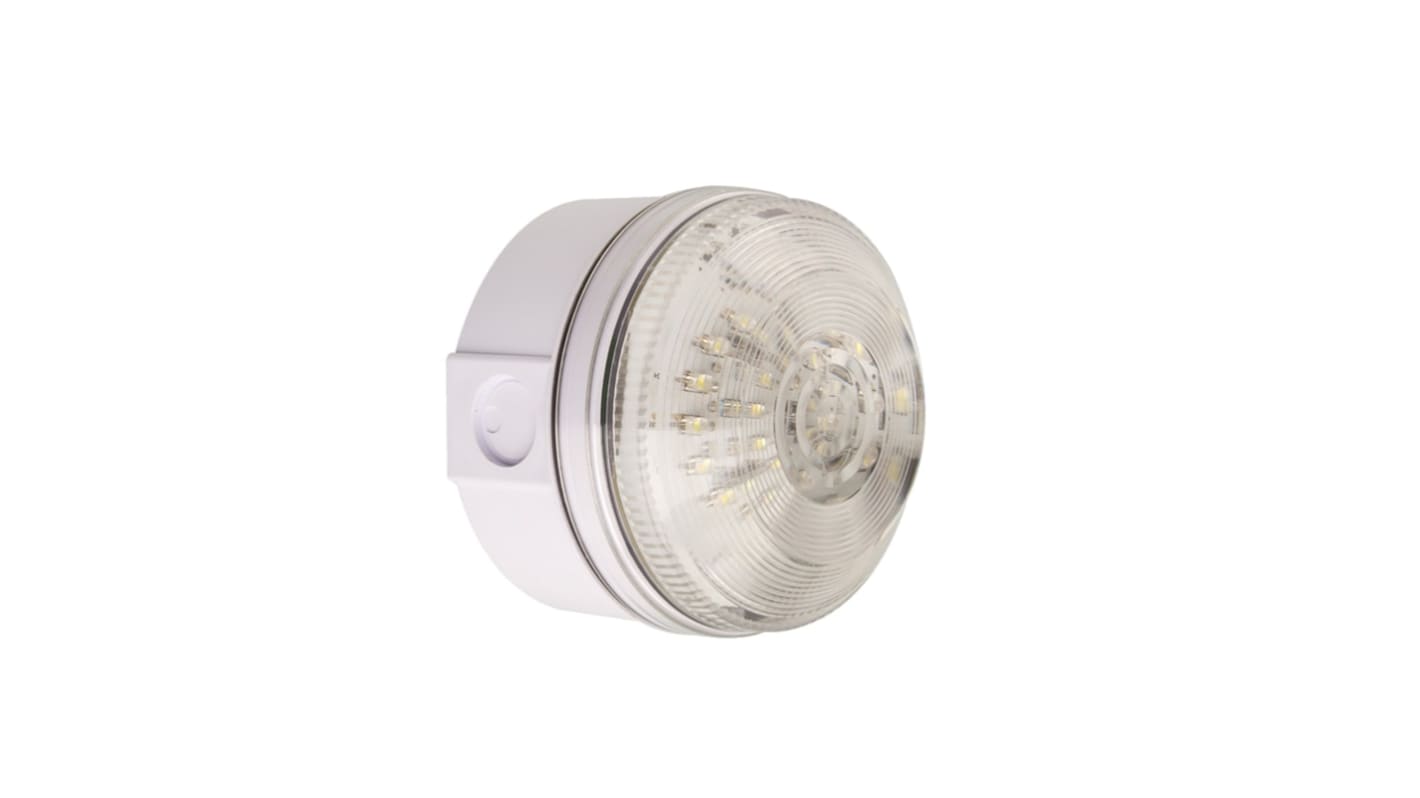

Moflash LED195 Series White Multiple Effect Beacon, 20 → 30 V, Box Mount, Wall Mount, LED Bulb, IP65
- RS Stock No.:
- 222-2001
- Mfr. Part No.:
- LED195-02WH-SB-05
- Brand:
- Moflash
Subtotal (1 unit)*
£74.05
(exc. VAT)
£88.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 6 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £74.05 |
*price indicative
- RS Stock No.:
- 222-2001
- Mfr. Part No.:
- LED195-02WH-SB-05
- Brand:
- Moflash
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Moflash | |
| Supply Voltage | 20 → 30 V | |
| Light Effect | Flashing, Steady | |
| Lens Colour | White | |
| Mounting Style | Box Mount, Wall Mount | |
| Bulb Type | LED | |
| Current Consumption | 120 (at 24v Dc)mA | |
| Current Type | AC, DC | |
| Base Diameter | 104mm | |
| Housing Colour | White | |
| Series | LED195 | |
| Height | 73mm | |
| IP Rating | IP65 | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +55°C | |
| Standards Met | CE, RoHS | |
Select all | ||
|---|---|---|
Brand Moflash | ||
Supply Voltage 20 → 30 V | ||
Light Effect Flashing, Steady | ||
Lens Colour White | ||
Mounting Style Box Mount, Wall Mount | ||
Bulb Type LED | ||
Current Consumption 120 (at 24v Dc)mA | ||
Current Type AC, DC | ||
Base Diameter 104mm | ||
Housing Colour White | ||
Series LED195 | ||
Height 73mm | ||
IP Rating IP65 | ||
Minimum Temperature -25°C | ||
Maximum Temperature +55°C | ||
Standards Met CE, RoHS | ||
- COO (Country of Origin):
- GB
Moflash White Multifunction LED Beacon, 20 to 30V AC/DC, 250g - LED195 Series - LED195-02WH-SB-05
Use this white LED beacon from Moflash as an effective warning signal in commercial and industrial settings. It's a versatile device that offers a choice between a static and flashing mode, which you can easily select using a jumper link on the printed circuit board (PCB). For quick and easy installation, the beacon has pre-drilled mounting holes. You can mount this beacon on a wall or conduit box for flexible installation.
Features & Benefits
• Light output of 120° above the vertical axis for good visibility
• Low current consumption of 120mA at 24V DC for energy-efficient operation
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• ABS (acrylonitrile butadiene styrene) base and PC (polycarbonate) lens are UV-stable for use in outdoor environments
• Light weight of 250g to minimise strain on the mounting surface
• Low current consumption of 120mA at 24V DC for energy-efficient operation
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• ABS (acrylonitrile butadiene styrene) base and PC (polycarbonate) lens are UV-stable for use in outdoor environments
• Light weight of 250g to minimise strain on the mounting surface
Applications
• Industrial vehicles
• Automated processes
• Construction sites
• Marine industry
• Automated processes
• Construction sites
• Marine industry
Can I use this LED beacon in extreme temperatures?
Yes, thanks to its wide operating temperature range of -25°C to +55°C, it's suitable for use in demanding environments.
