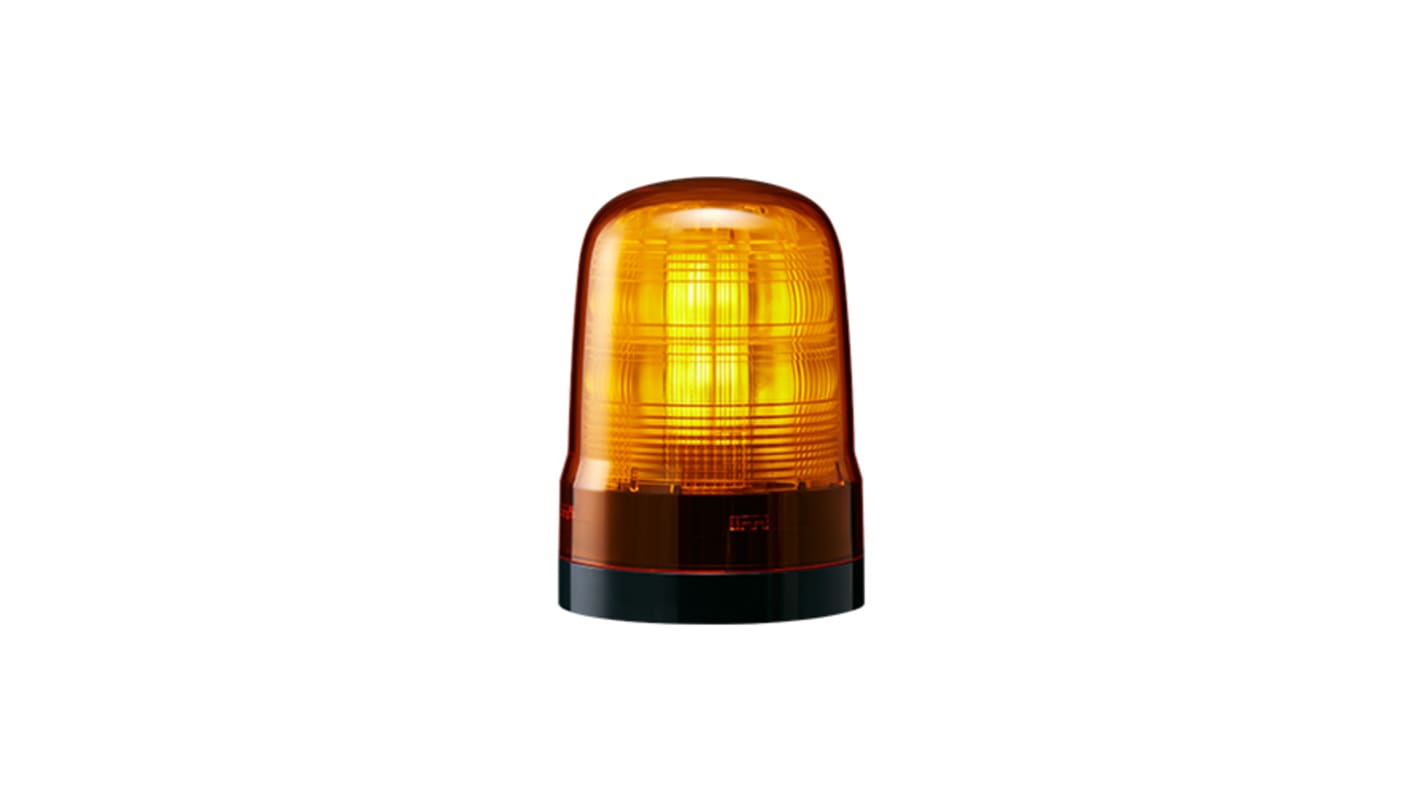

Patlite SF Series Amber Multiple Effect Beacon, 12→24 VDC, Base Mount, LED Bulb, IP66

View all Beacons

Subtotal (1 unit)*

£170.21

(exc. VAT)

£204.25

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£170.21

*price indicative

RS Stock No.:
215-4741
Distrelec Article No.:
303-17-652
Mfr. Part No.:
SF10-M1KTN-Y
Brand:
Patlite
Find similar products by selecting one or more attributes.
Select all

Brand

Patlite

Supply Voltage

12→24 VDC

Light Effect

Multiple Light Effects

Lens Colour

Amber

Mounting Style

Base Mount

Bulb Type

LED

Current Type

DC

Current Consumption

0.32A → 0.62A

Base Diameter

100mm

Series

SF

Multifunction

Yes

Height

140mm

IP Rating

IP66

Maximum Temperature

+50°C

Minimum Temperature

-20°C

Standards Met

UL 508, CSA-C22.2 No.14, EN61000-6-4, EN61000-6-2, EN61000-3-2, EN61000-3-3, KN61000-6-4, KN61000-6-2, FCC Part15 SubpartB ClassA, ICES-003 ClassA, IEC/EN60947-5-1, EN62471, TPTC020/2011, TPTC004/2011

COO (Country of Origin):
ID
The SF series amber colour multi-function beacon of size 100mm has an operating voltage rating of 12-24V dc. It is available with screw less terminal block.

Rotation Flashing Rate (Typ.) 180 rpm[High Speed], 120 rpm[Middle Speed], 60 rpm[Low Speed]
Mounting Direction Indoor: Upright, Inverted, Sideways
Outdoor: Upright
Material (Glove / Body) PC
Flashing Rate(Typ.) Single-flash(60 flashes per minute), Double-
