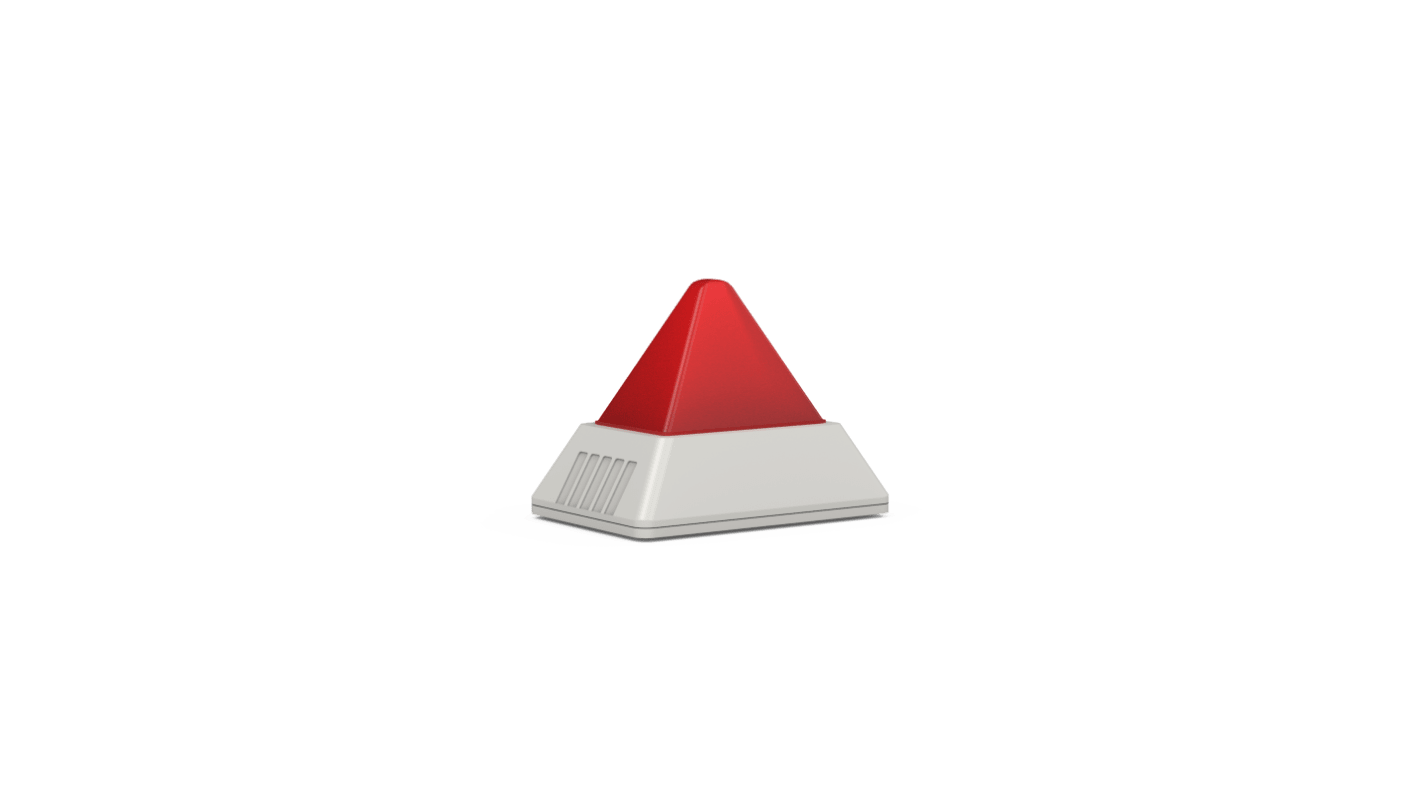

Pfannenberg PD 2100-M-AS-i Series Red Beacon 32.6V dc Continuous Direct, Bracket, LED Bulb, IP55
- RS Stock No.:
- 460-401
- Mfr. Part No.:
- 21120505004
- Brand:
- Pfannenberg
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 460-401
- Mfr. Part No.:
- 21120505004
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Product Type | Beacon | |
| Light Effect | Continuous | |
| Lens Colour | Red | |
| Housing Material | ABS | |
| Bulb Type | LED | |
| Current Type | AC | |
| Mount Type | Direct, Bracket | |
| Current Consumption | 250mA | |
| Base Diameter | 24mm | |
| Housing Colour | Light Grey | |
| Terminal Type | Cage Clamp | |
| Maximum Supply Voltage | 32.6V dc | |
| Minimum Operating Temperature | -25°C | |
| Series | PD 2100-M-AS-i | |
| Maximum Operating Temperature | 55°C | |
| Height | 128mm | |
| IP Rating | IP55 | |
| Standards/Approvals | IEC 73/DIN EN 60073/VDE 0199, EN 60825-1, DIN EN 981, DIN EN 842, DIN EN 54, DIN 54113-2 | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Product Type Beacon | ||
Light Effect Continuous | ||
Lens Colour Red | ||
Housing Material ABS | ||
Bulb Type LED | ||
Current Type AC | ||
Mount Type Direct, Bracket | ||
Current Consumption 250mA | ||
Base Diameter 24mm | ||
Housing Colour Light Grey | ||
Terminal Type Cage Clamp | ||
Maximum Supply Voltage 32.6V dc | ||
Minimum Operating Temperature -25°C | ||
Series PD 2100-M-AS-i | ||
Maximum Operating Temperature 55°C | ||
Height 128mm | ||
IP Rating IP55 | ||
Standards/Approvals IEC 73/DIN EN 60073/VDE 0199, EN 60825-1, DIN EN 981, DIN EN 842, DIN EN 54, DIN 54113-2 | ||
- COO (Country of Origin):
- DE
The Pfannenberg LED continuous light features machine lights in an elegant pyramid design, equipped with an LED light source for an extremely long service life of over 50,000 hours. It is vibration and shock-resistant, offers low power consumption, and minimizes maintenance costs.
LED continuous AS-i-Bus light with red lens is supplied directly via bus system
Control and function monitoring directly via AS interface (M-AS-i)
Machine lights in an elegant pyramid design, equipped with LED light source for extremely long service life (>50,000 hrs)
Vibration and shock resistant, low power consumption, minimised maintenance costs, uncompromising safety, outstanding illumination due to the lens design
Maximum visibility: 52 m
Operating temperature: -25C +45C
Dimensions: LxWxH: 128 x 167 x 112mm
7 lens colours: clear, white, yellow, amber, red, green, blue
System of protection IP 55
