Pfannenberg PMF 2015-SIL Series Red Beacon 24V dc, Xenon Bulb, IP55 Bracket, Direct
- RS Stock No.:
- 460-923
- Mfr. Part No.:
- 21007805012
- Brand:
- Pfannenberg
Subtotal (1 unit)*
£528.31
(exc. VAT)
£633.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £528.31 |
*price indicative
- RS Stock No.:
- 460-923
- Mfr. Part No.:
- 21007805012
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Product Type | Beacon | |
| Lens Colour | Red | |
| Housing Material | Polycarbonate (Bracket Mount), ABS (Direct Mount) | |
| Bulb Type | Xenon | |
| Mount Type | Bracket, Direct | |
| Current Type | AC/DC | |
| Base Diameter | 130mm | |
| Housing Colour | Blue, Red, Yellow, Green | |
| Maximum Supply Voltage | 24V dc | |
| Lamp Included | Yes | |
| Minimum Operating Temperature | -30°C | |
| Series | PMF 2015-SIL | |
| Maximum Operating Temperature | 55°C | |
| Height | 170.5mm | |
| IP Rating | IP55 | |
| Standards/Approvals | DIN EN 60073, VDE 0199, EN 61511, DIN EN 842, IEC 73, EN ISO 13849-1, EN 62061, DIN 5037, DIN 46228/1, DIN EN 981, EN 60529, EN 61508 | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Product Type Beacon | ||
Lens Colour Red | ||
Housing Material Polycarbonate (Bracket Mount), ABS (Direct Mount) | ||
Bulb Type Xenon | ||
Mount Type Bracket, Direct | ||
Current Type AC/DC | ||
Base Diameter 130mm | ||
Housing Colour Blue, Red, Yellow, Green | ||
Maximum Supply Voltage 24V dc | ||
Lamp Included Yes | ||
Minimum Operating Temperature -30°C | ||
Series PMF 2015-SIL | ||
Maximum Operating Temperature 55°C | ||
Height 170.5mm | ||
IP Rating IP55 | ||
Standards/Approvals DIN EN 60073, VDE 0199, EN 61511, DIN EN 842, IEC 73, EN ISO 13849-1, EN 62061, DIN 5037, DIN 46228/1, DIN EN 981, EN 60529, EN 61508 | ||
- COO (Country of Origin):
- DE
The Pfannenberg Flashing light provides an extremely bright signal by bundling light with a Fresnel lens, while maintaining low power consumption. It is used to signal dangerous situations in safety-relevant applications such as process and plant safety, including leaks, gas warnings, high-pressure conditions, and overfilling. The compact flashing light with amber lens and grey base is not only adaptable to many applications, but it also stands out due to its safe and simple mounting with M12 connector.

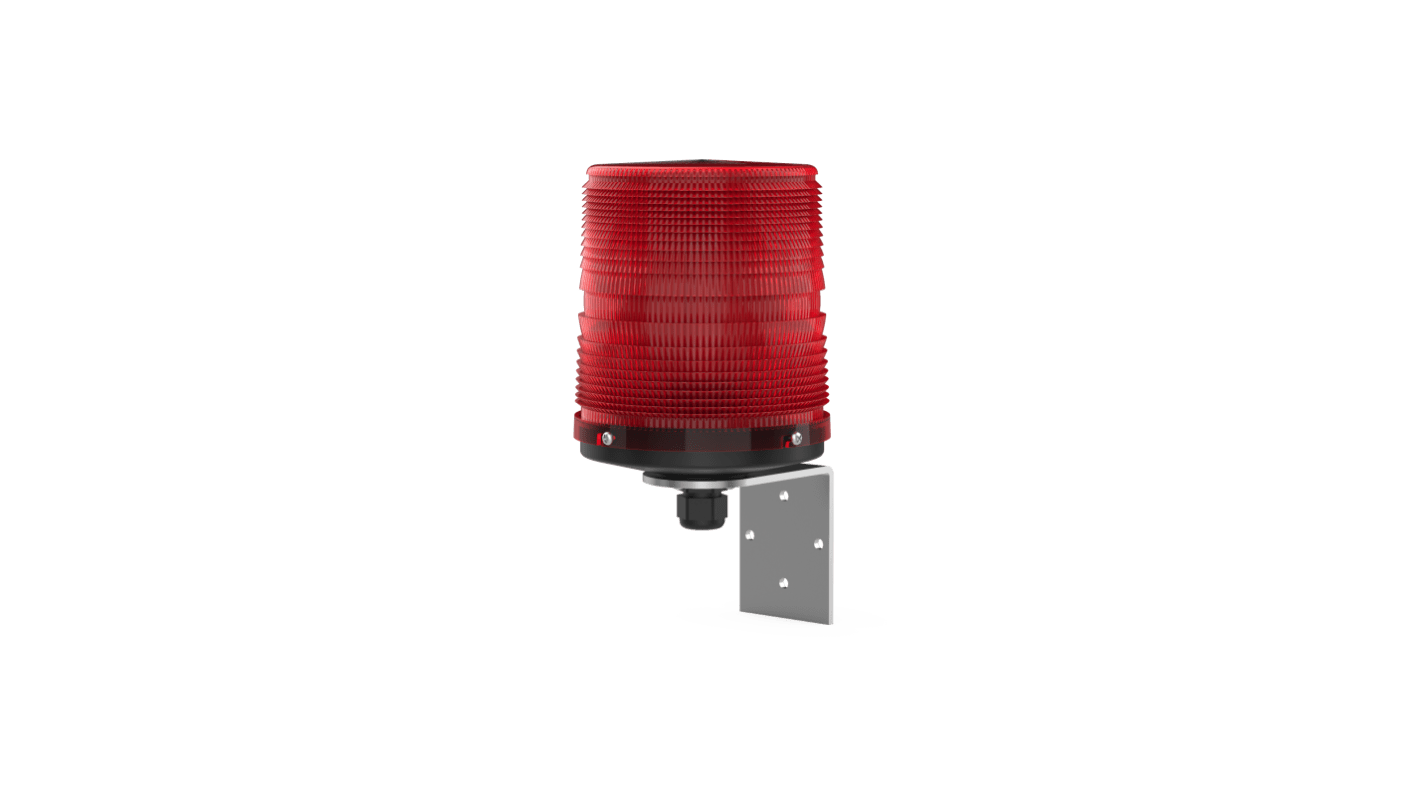

Extremely bright flashing light with red Fresnel lens and stainless steel mounting bracket
Both sub-systems have separate operating voltage connections
Large variety of mounting methods direct (DM) or using a bracket (BM)
Exchangeable due to widespread drilling template
Flash tube additionally secured by a steel clamp
Maximum visibility 366m
Service life: after 8 million flashes, still 70% light emission
Dimensions: 177mm diameter x 185mm (depending on mounting type)
Operating temperature: -30C +55C
