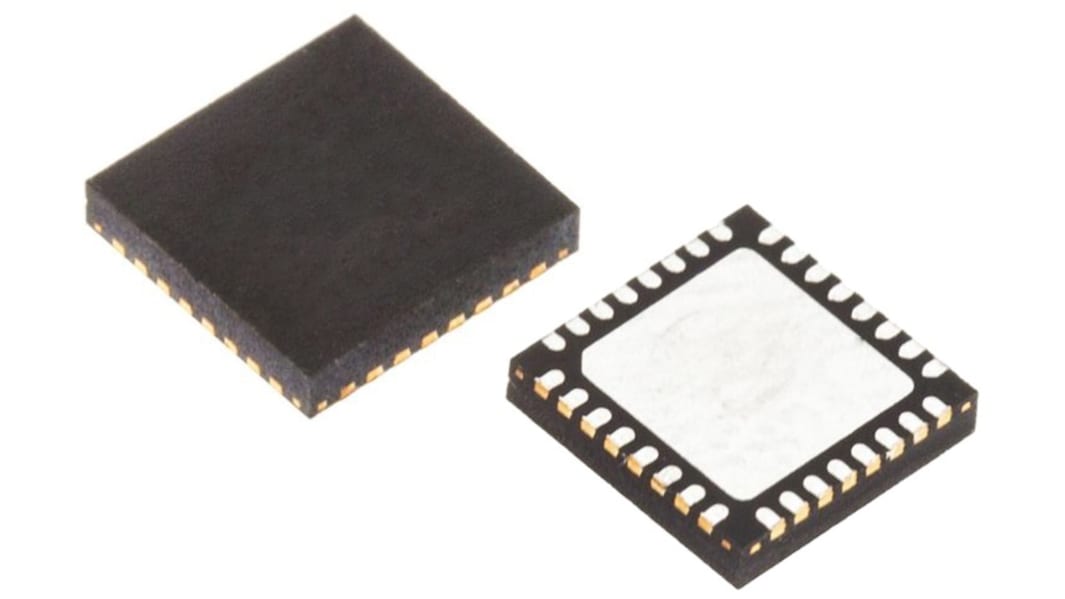

Renesas Electronics ISL95520HRZ, Battery Charger IC, 4.75 V to 25 V Input 4.75/25 V Output, QFN 32-Pin
- RS Stock No.:
- 263-0279
- Mfr. Part No.:
- ISL95520HRZ
- Brand:
- Renesas Electronics
Subtotal (1 tube of 75 units)*
£190.80
(exc. VAT)
£228.975
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 675 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 75 + | £2.544 | £190.80 |
*price indicative
- RS Stock No.:
- 263-0279
- Mfr. Part No.:
- ISL95520HRZ
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Battery Charger IC | |
| Sub Type | PMIC - Power Management IC | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Pin Count | 32 | |
| Minimum Supply Voltage | 4.75V | |
| Maximum Operating Temperature | 125°C | |
| Maximum Supply Voltage | 25V | |
| Length | 4mm | |
| Standards/Approvals | RoHS | |
| Series | ISL95520 | |
| Height | 0.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Battery Charger IC | ||
Sub Type PMIC - Power Management IC | ||
Mount Type Surface | ||
Package Type QFN | ||
Pin Count 32 | ||
Minimum Supply Voltage 4.75V | ||
Maximum Operating Temperature 125°C | ||
Maximum Supply Voltage 25V | ||
Length 4mm | ||
Standards/Approvals RoHS | ||
Series ISL95520 | ||
Height 0.9mm | ||
Automotive Standard No | ||
The Renesas Electronics battery management is a highly versatile combo battery charger configurable for operating as either a hybrid power boost charger or a narrow VDC charger, supporting 2, 3, or 4 cell batteries. It configurations allow the battery to work with the adapter to supply the system load when it exceeds the adapter capability, referred to as system turbo mode.
Adapter current monitor
Actively controlled inrush current
Low quiescent current
