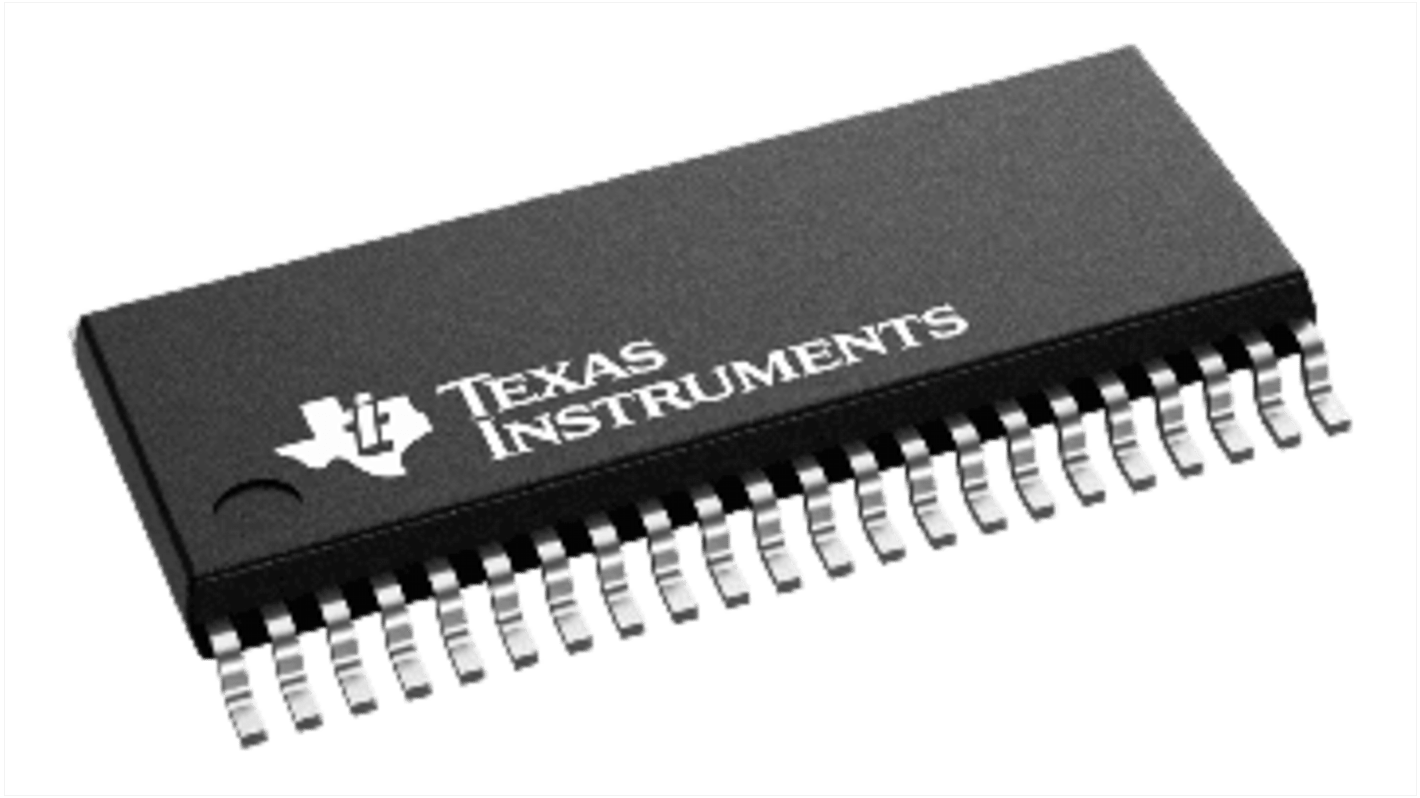

Texas Instruments, Battery Charge Controller IC, 6 V to 5.5V Input, TSSOP 44-Pin
- RS Stock No.:
- 252-8805
- Mfr. Part No.:
- BQ7694006DBT
- Brand:
- Texas Instruments
Subtotal (1 tube of 40 units)*
£116.64
(exc. VAT)
£139.96
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 320 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 40 + | £2.916 | £116.64 |
*price indicative
- RS Stock No.:
- 252-8805
- Mfr. Part No.:
- BQ7694006DBT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Battery Charge Controller IC | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 44 | |
| Minimum Supply Voltage | 6V | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -20°C | |
| Standards/Approvals | REACH, RoHS | |
| Series | BQ7694006 | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Battery Charge Controller IC | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 44 | ||
Minimum Supply Voltage 6V | ||
Maximum Supply Voltage 5.5V | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -20°C | ||
Standards/Approvals REACH, RoHS | ||
Series BQ7694006 | ||
Automotive Standard AEC-Q100 | ||
The Texas offers a BQ family of robust analog front-end (AFE) devices serves as part of a complete pack monitoring and protection solution for next-generation,
high-power systems, such as light electric vehicles, power tools and uninterruptible power supplies.
Pure digital interface
Internal ADC measures cell voltage, die temperature, and external thermistor
A separate, internal ADC measures pack current
Directly supports up to three thermistors
