RS PRO N Battery Holder, Solder Tag Contact
- RS Stock No.:
- 185-4752
- Brand:
- RS PRO
Subtotal (1 unit)*
£0.63
(exc. VAT)
£0.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 38 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £0.63 |
*price indicative
- RS Stock No.:
- 185-4752
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| For Battery Size | N | |
| Number of Cells | 1 | |
| Mount | Snap-In | |
| Type | Battery Holder | |
| Maximum Cell Diameter | 12mm | |
| Dimensions | 34.6 x 13.2 x 12.5mm | |
| Terminal Contact Type | Solder Tag | |
| Body Material | PP | |
| Terminal Contact Material | Nickel Plated Spring Steel | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
For Battery Size N | ||
Number of Cells 1 | ||
Mount Snap-In | ||
Type Battery Holder | ||
Maximum Cell Diameter 12mm | ||
Dimensions 34.6 x 13.2 x 12.5mm | ||
Terminal Contact Type Solder Tag | ||
Body Material PP | ||
Terminal Contact Material Nickel Plated Spring Steel | ||
- COO (Country of Origin):
- CN

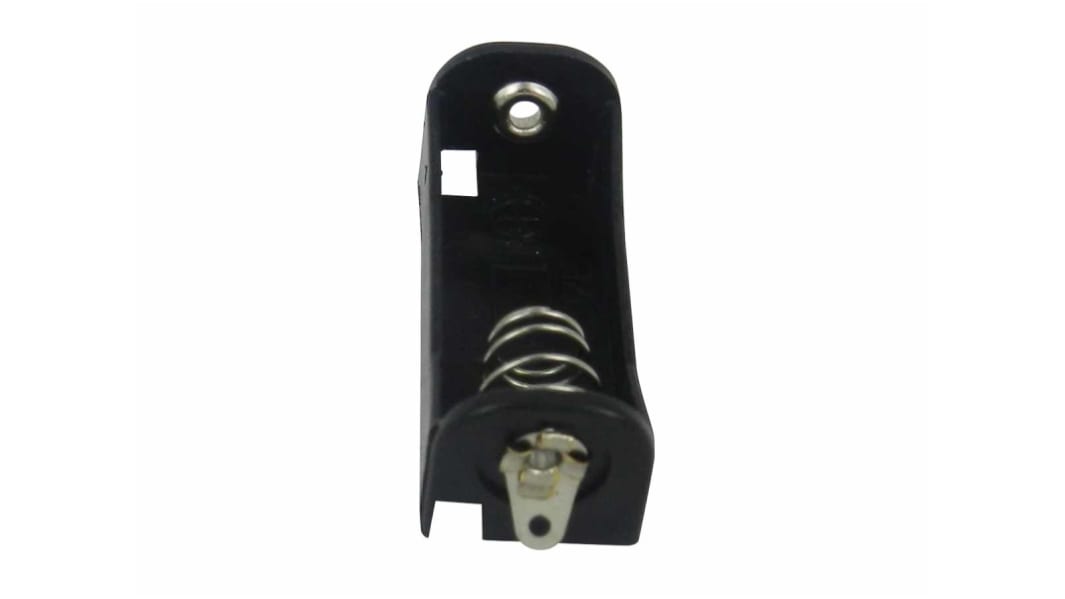

RS PRO Battery Holder
The RS PRO battery holder is suitable for N size, 1 cell battery with tag. It has dimensions of 34.6mm x 13.2mm x 12.5mm.
Features and Benefits
• Holder material: PP resin
• With small solder lug, brass nickel plated
• Spring material: 0.5mm 65C nickel-plated steel
• Rivet material: Nickel-plated brass
• Terminal contact: Solder tag
• With small solder lug, brass nickel plated
• Spring material: 0.5mm 65C nickel-plated steel
• Rivet material: Nickel-plated brass
• Terminal contact: Solder tag
Applications
• Used to contain cells when inserted into battery compartments
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
