RS PRO AA Battery Holder Coil Spring

View all Battery Holders

Subtotal (1 unit)*

£2.06

(exc. VAT)

£2.47

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 478 unit(s) shipping from 02 March 2026
  • Plus 174 unit(s) shipping from 02 March 2026
  • Plus 180 unit(s) shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£2.06

*price indicative

RS Stock No.:
185-4740
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Compatible Battery Size

AA

Product Type

Battery Holder

Sub Type

Battery Holder

Number of Cells

2

Mount Type

Lead Wire

Body Material

Polypropylene

Termination Type

Coil Spring

Width

33 mm

Series

SBH

Diameter

10.5 mm

Height

19mm

Standards/Approvals

No

Length

68mm

COO (Country of Origin):
CN

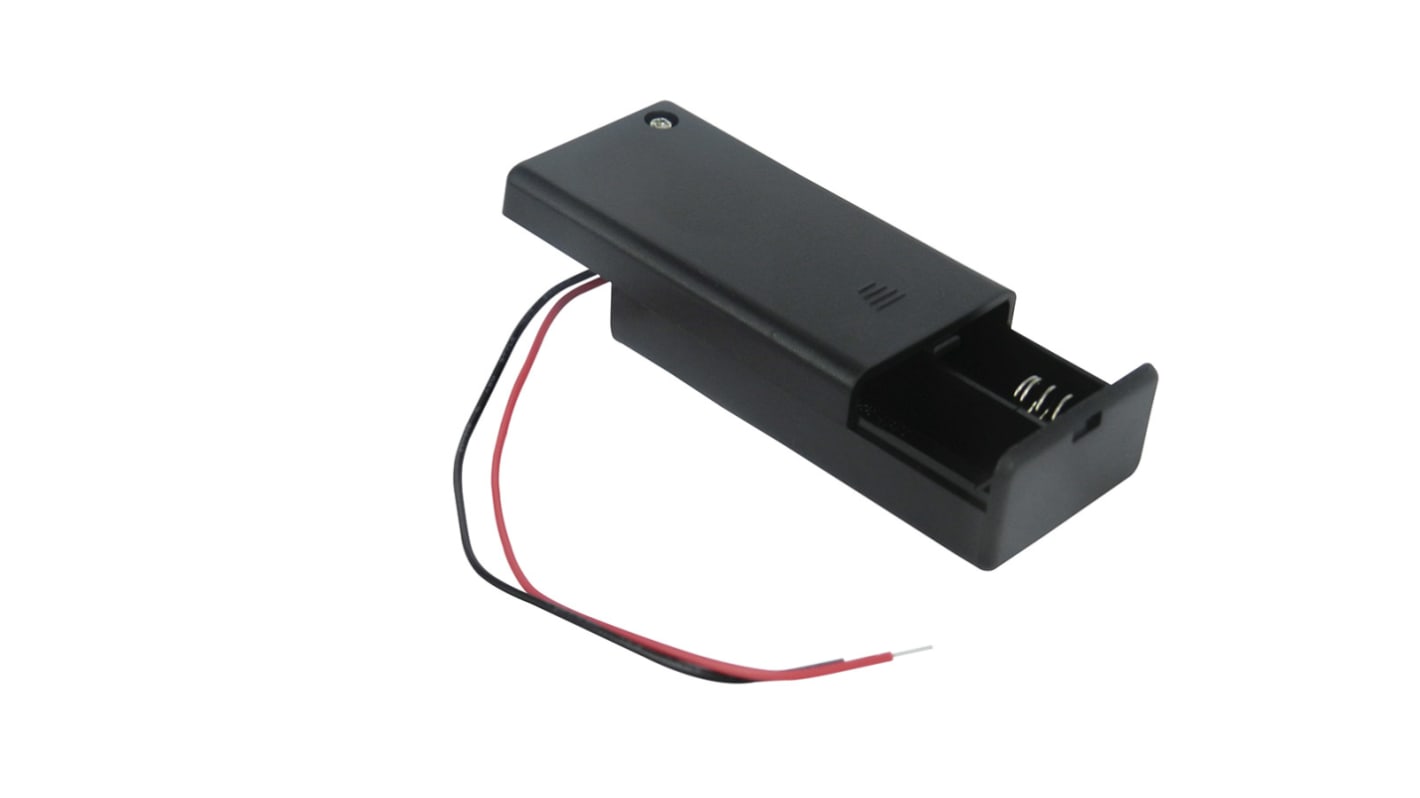

RS PRO Safety Battery Holder


The RS PRO safety battery holder is suitable for AA size, 2 cell battery with a lead wire of 150mm. It has dimensions of 68mm x 33mm x 19mm.

Features and Benefits


• Material: ABS resin

• Wire: UL1007 26AWG

• Spring material: 0.6mm 65C spring wire

• ADD switch

Applications


• Used to contain cells when inserted into battery compartments

Certifications


• ANSI/ESD S20.20: 2014

• BS EN 61340-5-1: 2007
