RS PRO AA Battery Holder, Coil Spring Contact
- RS Stock No.:
- 185-4608
- Brand:
- RS PRO
Subtotal (1 unit)*
£1.65
(exc. VAT)
£1.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 108 unit(s) ready to ship
- Plus 237 unit(s) ready to ship from another location
- Plus 999,999,891 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1.65 |
*price indicative
- RS Stock No.:
- 185-4608
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
For Battery Size | AA | |
Number of Cells | 10 | |
Mount | Wire Lead | |
Type | Battery Holder | |
Maximum Cell Diameter | 14.5mm | |
Dimensions | 78.5 x 58.5 x 29.8mm | |
Terminal Contact Type | Coil Spring | |
Body Material | PP | |
Terminal Contact Material | Nickel Plated Spring Steel | |
Select all | ||
---|---|---|
Brand RS PRO | ||
For Battery Size AA | ||
Number of Cells 10 | ||
Mount Wire Lead | ||
Type Battery Holder | ||
Maximum Cell Diameter 14.5mm | ||
Dimensions 78.5 x 58.5 x 29.8mm | ||
Terminal Contact Type Coil Spring | ||
Body Material PP | ||
Terminal Contact Material Nickel Plated Spring Steel | ||
- COO (Country of Origin):
- CN

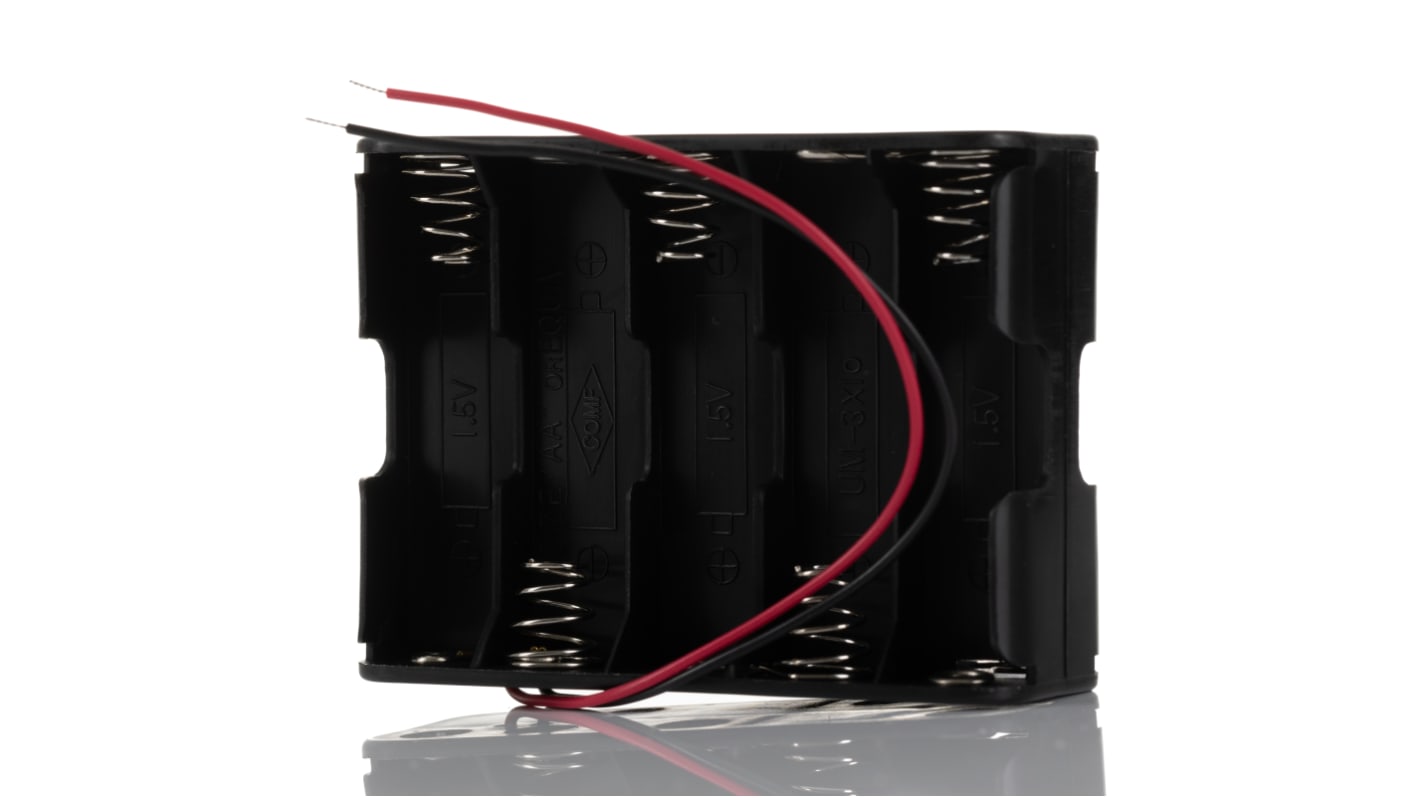

RS PRO AA Battery Holder – 10 Cells
Take your device's power performance to the next level with RS PRO's Battery Holder. This robust holder is designed to securely fit 10 AA batteries for reliable power, with a polypropylene body that is highly resistant to moisture and wear. Spring-coiled and flat metal contacts press firmly against the battery terminals for maximum conductivity, so you can trust your device to run smoothly and optimally every time.
Features and Benefits
• Wire size: 26AWG
• PP resin holder
• 65C spring wire of 0.7mm
• Material PP resin
• Number of cells: 10
• PP resin holder
• 65C spring wire of 0.7mm
• Material PP resin
• Number of cells: 10
Applications
• To contain cells when inserted into battery compartments
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
