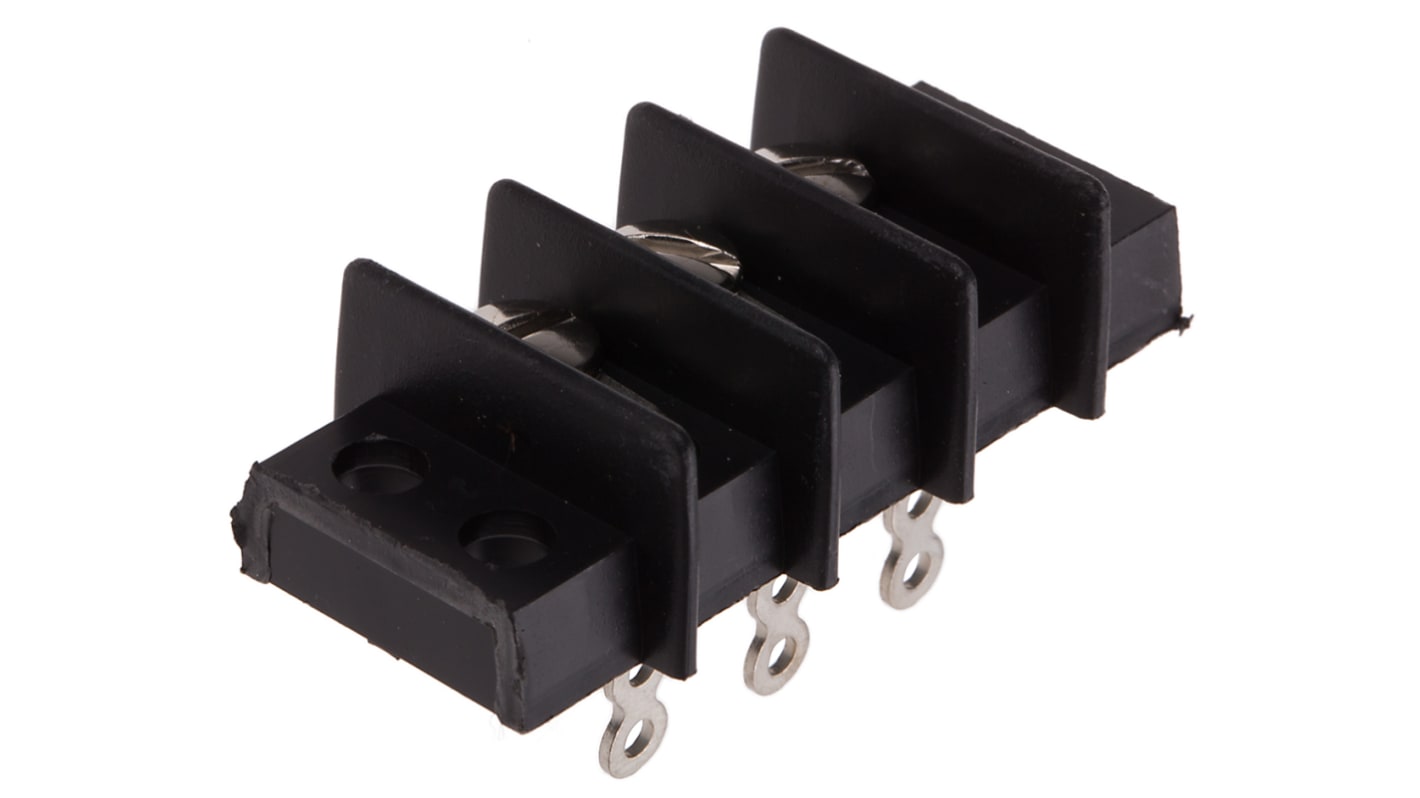

RS PRO Barrier Strip, 3 Contact, 9.52mm Pitch, 15A, 750 V
- RS Stock No.:
- 805-6064
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 805-6064
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 3 | |
| Pitch | 9.52mm | |
| Contact Material | Brass | |
| Contact Plating | Nickel | |
| Screw Size | UNC 6 → 32 | |
| Material | Thermoplastic | |
| Fixing Centre | 38.1mm | |
| Current Rating | 15A | |
| Voltage Rating | 750 V | |
| Dimensions | 17.45 x 6.35mm | |
| Depth | 6.35mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +100°C | |
| Width | 17.45mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 3 | ||
Pitch 9.52mm | ||
Contact Material Brass | ||
Contact Plating Nickel | ||
Screw Size UNC 6 → 32 | ||
Material Thermoplastic | ||
Fixing Centre 38.1mm | ||
Current Rating 15A | ||
Voltage Rating 750 V | ||
Dimensions 17.45 x 6.35mm | ||
Depth 6.35mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +100°C | ||
Width 17.45mm | ||
- COO (Country of Origin):
- GB
