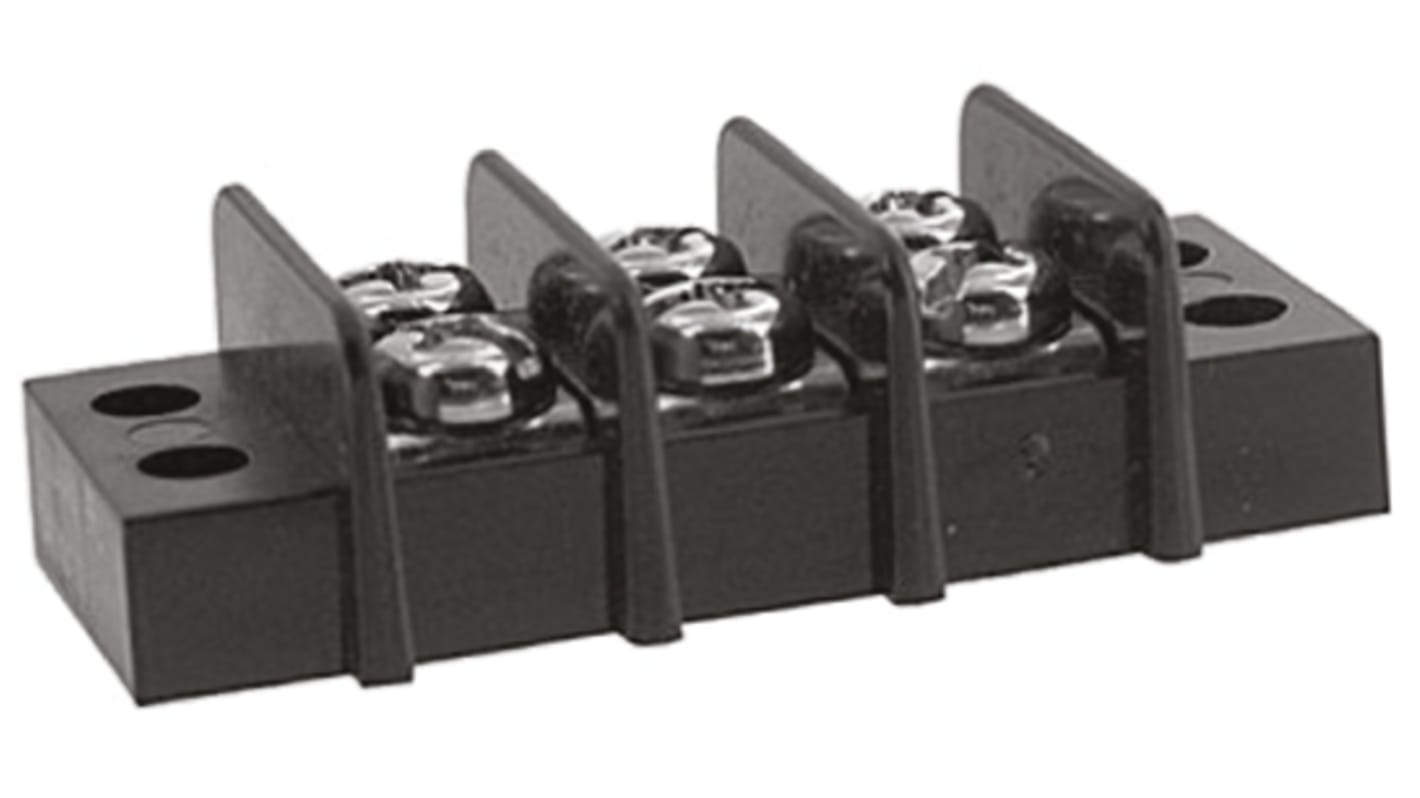

Barrier Strip, 3 Contact, 9.53mm Pitch, 2 Row, 20A, 300 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Double Row, Dual Barrier Strips - TE Connectivity

Double-row, dual barrier strips for wire-to-wire applications. These parts also allow end users to complete the wiring to a separate screw without disturbing the factory wiring. Increased current-carrying capability.

Materials used:
Insulator Body: UL 94 V-0 thermoplastic, black
Terminal: Brass, tin plated
Screw: #6-32 Steel, nickel-plated; M4.0 Steel, nickel-plated (14.3 mm)

Closed Bottom Design Allows for Mounting Direct to Sheet Metal Panel
Molded to Length
Wire-to-Wire Termination
Available with Either Binding Head Screws or Wire Clamp
Current Rating: 20 A, 300 VAC
Wire Range: 22-12 AWG
Withstanding Voltage: 2000 VAC Min.
Insulation Resistance: >5000 MΩ @ 500 VDC
Operating Temperature: –40°F to +221°F (–40°C to +105°C)

Specifications
Attribute Value
Number of Contacts 3
Pitch 9.53mm
Contact Material Brass
Contact Plating Tin
Number of Rows 2
Screw Size UNC 6-32
Wire Size 22 → 12 AWG
Material Thermoplastic
Current Rating 20A
Voltage Rating 300 V
Minimum Operating Temperature -40°C
Length 1.8in
Maximum Operating Temperature +105°C
845 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.938
(exc. VAT)
£ 1.126
(inc. VAT)
Units
Per unit
Per Pack*
5 - 70
£0.938
£4.69
75 - 245
£0.892
£4.46
250 +
£0.842
£4.21
*price indicative
