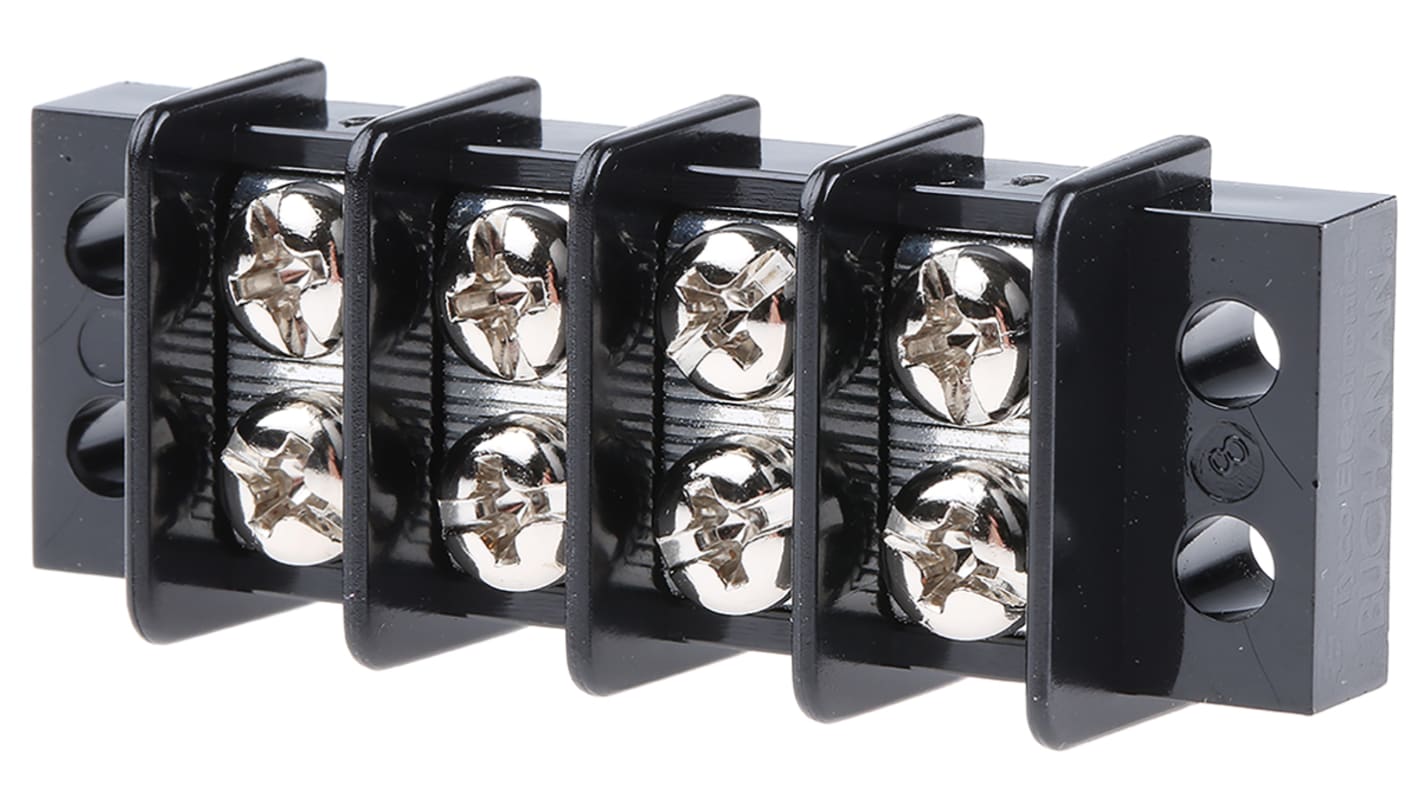

Barrier Strip, 4 Contact, 9.53mm Pitch, 2 Row, 20A, 300 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Barrier Strips - TE Connectivity

A range of PCB mount Barrier Strips from TE Connectivity.

Specifications
Attribute Value
Number of Contacts 4
Pitch 9.53mm
Contact Material Brass
Contact Plating Tin
Number of Rows 2
Screw Size UNC 6-32
Wire Size 22 → 12 AWG
Material Thermoplastic
Current Rating 20A
Voltage Rating 300 V
Length 2.17in
Maximum Operating Temperature +105°C
Minimum Operating Temperature -40°C
325 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 1.26
(exc. VAT)
£ 1.51
(inc. VAT)
Units
Per unit
Per Pack*
5 - 70
£1.26
£6.30
75 - 245
£1.196
£5.98
250 +
£1.132
£5.66
*price indicative
