Staubli Male Banana Plug, 6 mm Connector, 80A, 600V, Silver Plating
- RS Stock No.:
- 281-7153
- Mfr. Part No.:
- 93208
- Brand:
- Staubli
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£25.97
(exc. VAT)
£31.16
(inc. VAT)
- RS Stock No.:
- 281-7153
- Mfr. Part No.:
- 93208
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Gender | Male | |
| Voltage Rating | 600V | |
| Current Rating | 80A | |
| Connector Size | 6 mm | |
| Contact Plating | Silver | |
| Spring Contact | Yes | |
| Length | 62.5mm | |
| Type | Banana Plug | |
| Contact Material | Brass | |
| Insulation Material | Plastic | |
Select all | ||
|---|---|---|
Brand Staubli | ||
Gender Male | ||
Voltage Rating 600V | ||
Current Rating 80A | ||
Connector Size 6 mm | ||
Contact Plating Silver | ||
Spring Contact Yes | ||
Length 62.5mm | ||
Type Banana Plug | ||
Contact Material Brass | ||
Insulation Material Plastic | ||
- COO (Country of Origin):
- CH
Plugs
Flush or surface mountable on either housings or panels
Mates with the straight and the 90° 6mm sockets (2, 3)
The 6mm plug features an internal 4mm diameter socket-hole that will mate with all 4mm shrouded plugs and leads for testing circuits when NOT under high current load
Both items are supplied with five (5) colour-coding rings for easy identification of the plug
Lantern Style Contacts
Touch-proof
Self Locking 'Push-Pull' principle
Mates with the straight and the 90° 6mm sockets (2, 3)
The 6mm plug features an internal 4mm diameter socket-hole that will mate with all 4mm shrouded plugs and leads for testing circuits when NOT under high current load
Both items are supplied with five (5) colour-coding rings for easy identification of the plug
Lantern Style Contacts
Touch-proof
Self Locking 'Push-Pull' principle

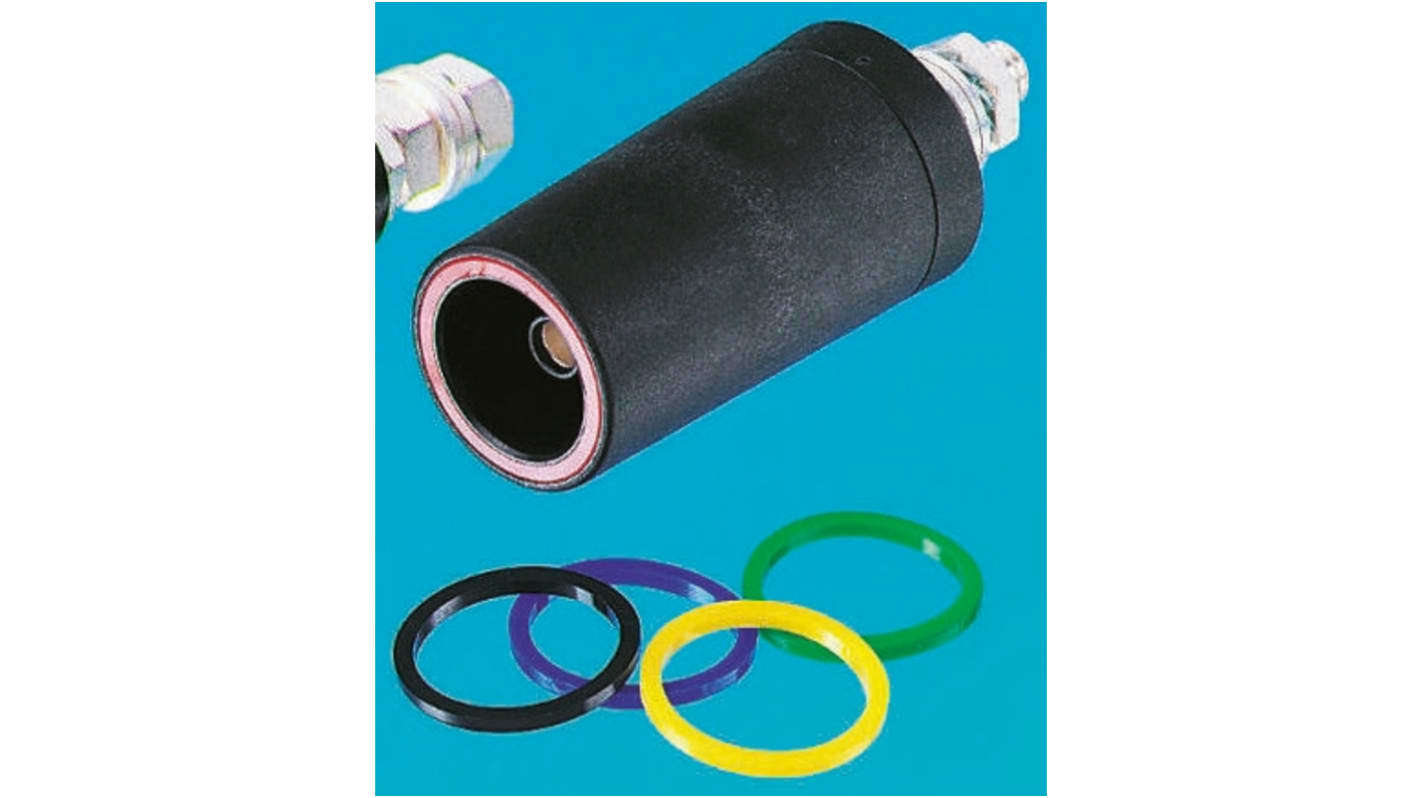

6mm Multi-Contact
6mm plugs and sockets with a plastic insulation and fitted with lantern style contacts. They are suited idealy where higher power connections are required, such as for use in laboratories, test facilities, schools and industry. All parts incorporate a self locking system that operates on a push-pull principle. The snap-in lock engages when the plug is inserted. However, in order to disconnect the plug it must first be pushed and then pulled.
