RS PRO Brass Full Bore, 2 Way, Ball Valve, Threaded, BSP 3/4in, 14bar Operating Pressure
- RS Stock No.:
- 812-5185
- Brand:
- RS PRO
Save 6% when you buy 10 units
Subtotal (1 unit)*
£18.74
(exc. VAT)
£22.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 62 unit(s) ready to ship
- Plus 45 unit(s) ready to ship from another location
- Plus 96 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.74 |
| 5 - 9 | £18.19 |
| 10 + | £17.54 |
*price indicative
- RS Stock No.:
- 812-5185
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Full Bore, 2 Way | |
| Ball Material | Chrome Plated Brass | |
| Attachment Type | Threaded | |
| Thread Standard | BSP | |
| Thread Size | 3/4in | |
| Body Material | Brass | |
| Pipe Diameter | 20mm | |
| Handle Type | Lever | |
| Handle Material | Steel | |
| Handle Colour | Blue | |
| Operating Pressure | 14bar | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Full Bore, 2 Way | ||
Ball Material Chrome Plated Brass | ||
Attachment Type Threaded | ||
Thread Standard BSP | ||
Thread Size 3/4in | ||
Body Material Brass | ||
Pipe Diameter 20mm | ||
Handle Type Lever | ||
Handle Material Steel | ||
Handle Colour Blue | ||
Operating Pressure 14bar | ||
- COO (Country of Origin):
- IT

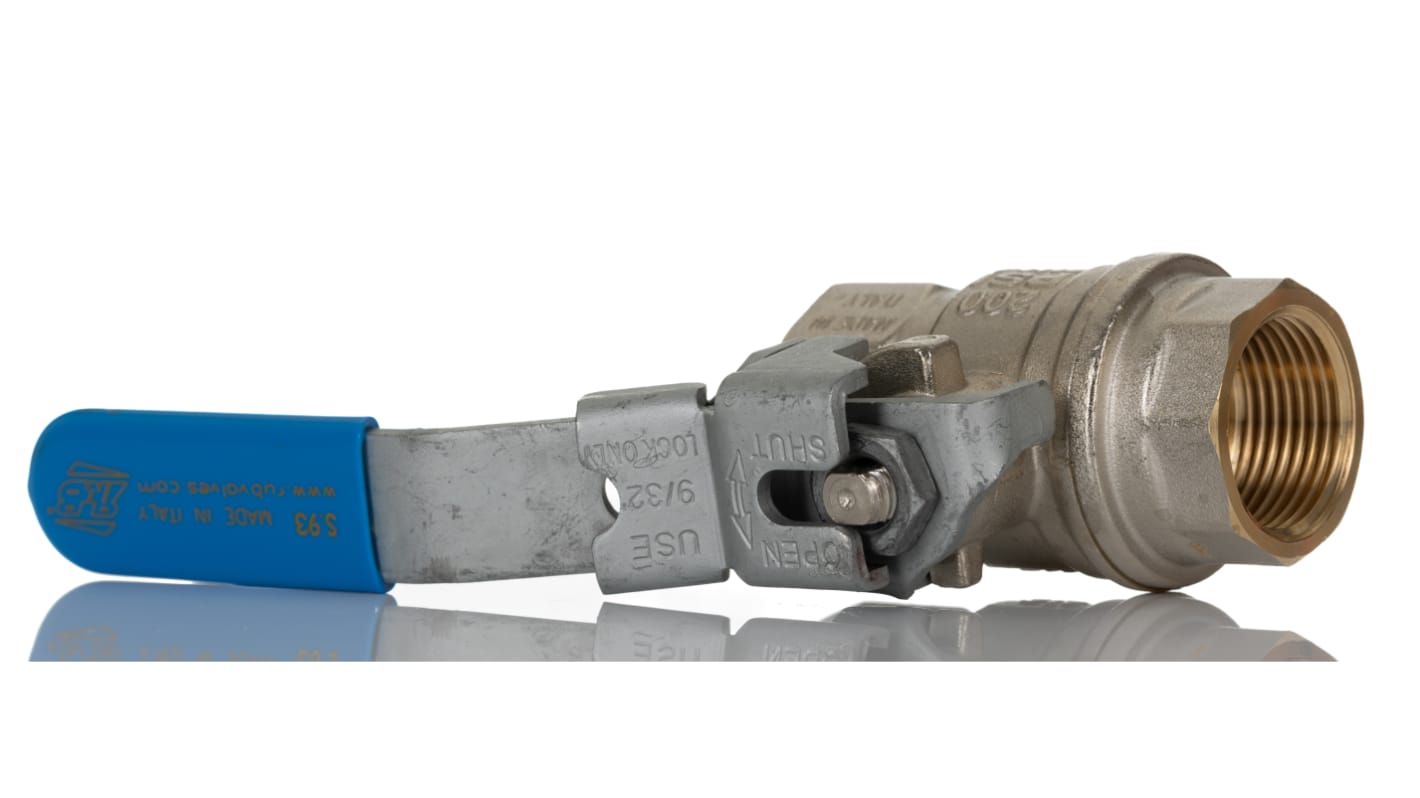

RS PRO 3/4in Downstream Exhaust Brass Ball Valve - 1/4 Turn, Lockable handle
A 2 way ball valve with exhaust fully lockable in the closed position. Featuring a high quality and strong Carbon Steel handle with PVC dipped protection providing thermal and electrical insulation.
Constructed with a hot forged sandblasted Nickel plated Brass body with tapped downstream depressurisation outlet for exhaust direction and a Chrome plated Brass ball for corrosion protection and extended product life. The self-lubricating Molybdenum PTFE seals provide a tight and secure fitting requiring no maintenance and dual sealing system allows the valve to be used in either direction for simple hassle free installation.
Perfect for controlling access and preventing accidental operation the easy to use manual 1/4 turn ball valve is tough, reliable, has no metal to metal parts and requires no maintenance. Perfect for industrial applications.
Features and Benefits
3/4in Ball valve with exhaust
Operating temperature of-10°C to +100°C
Chrome plated brass ball for longer life
Silicone-free lubricant on all seals
Travel stops on body to avoid stress at stem
Dual sealing system
No metal-to-metal moving parts
No maintenance required
Handle shows ball position
Standards and Approvals: EN 10226-1, ISO 228, DIN 3357, EN 12165, RoHS
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
