Festo Nickel Plated Brass 1/2 in Rp, EN 10226-1 ISO 5211, Ball Valve

View all Ball Valves
Stock information currently inaccessible
RS Stock No.:
288-3012
Mfr. Part No.:
VZBM-1/2-RP-25-D-2-F03-B2B3
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Ball Valve

Inlet Connection Type

1/2 in Rp

Ball Material

Chrome Plated Brass

Seal Material

Fluoropolymer

Body Material

Nickel Plated Brass

Flow Factor Kv

15m³/h

Inlet Thread Standard

EN 10226-1 ISO 5211

Maximum Operating Temperature

90°C

Handle Material

Brass

Standards/Approvals

RoHS, EU Pressure Equipment Directive, VDMA24364 zone III

COO (Country of Origin):
IT

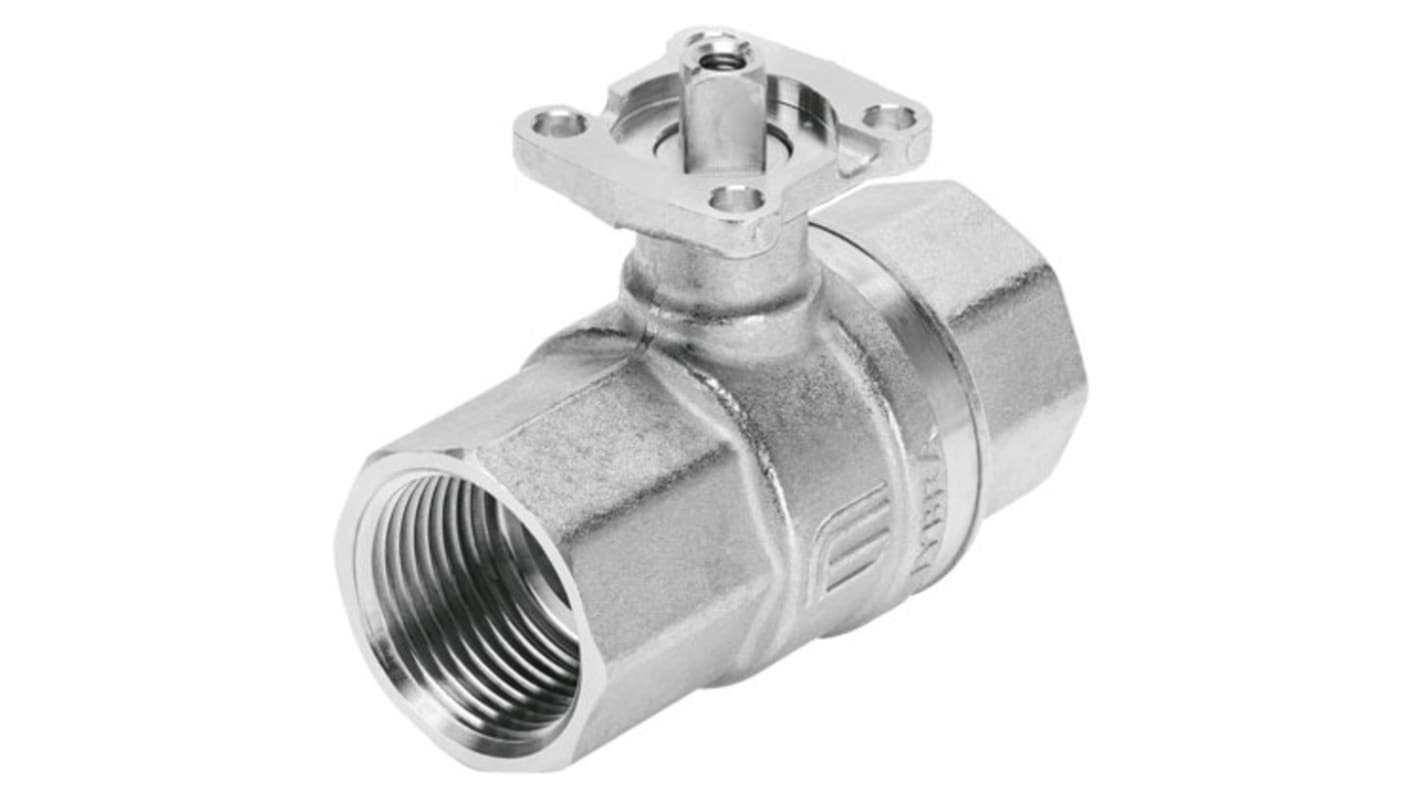

Festo Ball Valve, 15m³/h Flow Factor, 90°C Maximum Operating Temperature - VZBM-1/2-RP-25-D-2-F03-B2B3, Numeric Part Number: 4405648


This ball valve provides quarter-turn shut-off control for fluid systems in industrial settings. It combines corrosion-resistant materials with a high flow capability to manage liquid passage where reliable on/off service is required. The valve suits installation in systems using 1/2 inches Rp threaded connections and meets recognised European and industry safety standards for pressure equipment and hazardous-area construction.

Features & Benefits


• Chrome-plated brass ball delivers smooth operation and reduced wear
• Nickel-plated brass body resists corrosion in industrial environments
• Fluoropolymer seal enables chemical compatibility and leak control
• 15 m3/h flow capacity supports high-throughput line requirements
• Operates to 90°C for elevated-temperature fluid handling
• Brass handle offers quick quarter-turn actuation for fast isolation

**Applications**


• Suitable for pneumatic and hydraulic supply isolation in automation plants
• Ideal for process skids requiring high-flow metering and control
• Used with instrumentation manifolds in electrical cabinet feed lines
• Can be used for cooling circuits in electronics and machine tools
• Used for service and maintenance shut-off on factory distribution mains

What thread standard is required for pipe mating?


The valve connects via a 1/2 inches Rp inlet thread manufactured to EN10226-1 ISO 5211, so mating fittings must comply with that standard.

How does the valve handle elevated operating temperatures?


Sealing utilises a fluoropolymer material selected to maintain sealing performance up to 90°C without significant degradation.

What flow performance can be expected in typical installations?


The valve’s flow characteristic supports a Kv of 15 m3/h, enabling substantial volumetric throughput in medium-to-large bore lines.
