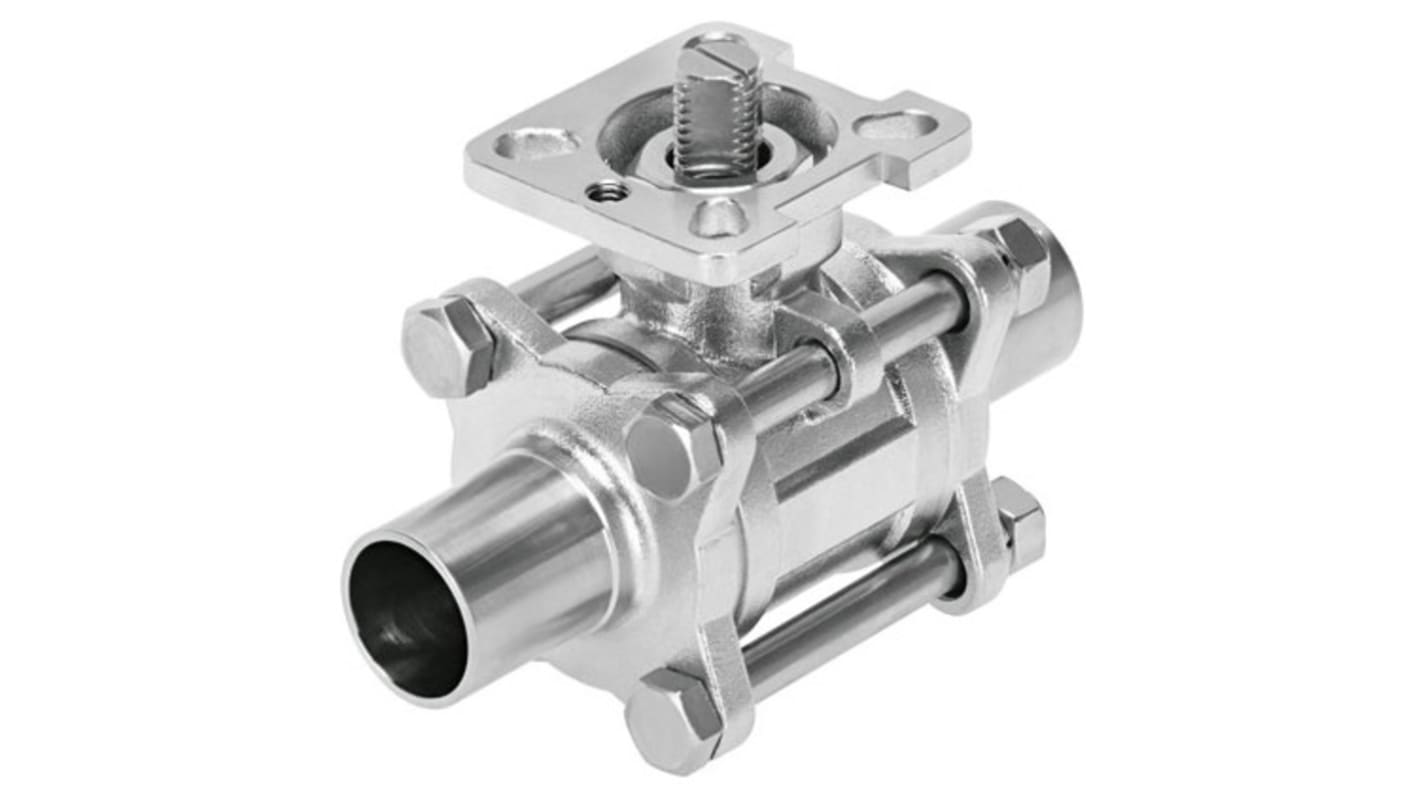

Festo Stainless Steel Weld-on End to ASME-BPE, Ball Valve
- RS Stock No.:
- 288-2994
- Mfr. Part No.:
- VZBD-1/2-W1-16-T-2-F0304-V14V14
- Brand:
- Festo
Subtotal (1 unit)*
£105.86
(exc. VAT)
£127.03
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £105.86 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 288-2994
- Mfr. Part No.:
- VZBD-1/2-W1-16-T-2-F0304-V14V14
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Ball Valve | |
| Inlet Connection Type | Weld-on End to ASME-BPE | |
| Ball Material | Stainless Steel | |
| Seal Material | Fluoropolymer | |
| Flow Factor Kv | 13m³/h | |
| Body Material | Stainless Steel | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | ATEX Zone 22, ATEX Zone 2, ASME BPE ISO 5211, ATEX Zone 1, ATEX Zone 21, 3-A Sanitary CRN | |
| Better World Product | Yes | |
| Better World Claim | Repairable by the End User | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Ball Valve | ||
Inlet Connection Type Weld-on End to ASME-BPE | ||
Ball Material Stainless Steel | ||
Seal Material Fluoropolymer | ||
Flow Factor Kv 13m³/h | ||
Body Material Stainless Steel | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals ATEX Zone 22, ATEX Zone 2, ASME BPE ISO 5211, ATEX Zone 1, ATEX Zone 21, 3-A Sanitary CRN | ||
Better World Product Yes | ||
Better World Claim Repairable by the End User | ||
- COO (Country of Origin):
- CN
The Festo ball valve is designed as a 2-way mechanical actuation soft sealing ball valve for in-line installation with a welding process valve connection. It is suitable for various media including vapour, compressed air, inert gases, water, and neutral f
Designed as a 2-way ball valve for reversible flow direction
Nominal pressure of PN 16 and breakaway torque of 7 Nm
Suitable for media temperatures ranging from -20 °C to 200 °C
Materials include stainless steel casting, PTFE seal, and FPM and PTFE seals for durability
Approval for 3-A sanitary use and compliance with RoHS standards
Explosion protection for Zones 1, 2, 21, and 22 as per ATEX regulations
