Festo Stainless Steel Threaded, EN 10226-1 ISO 5211, Ball Valve
- RS Stock No.:
- 271-7256
- Mfr. Part No.:
- VZBA-1/4"-GGG-63-32L-F0304-V4V4T
- Brand:
- Festo
Subtotal (1 unit)*
£162.68
(exc. VAT)
£195.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.68 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 271-7256
- Mfr. Part No.:
- VZBA-1/4"-GGG-63-32L-F0304-V4V4T
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Ball Valve | |
| Inlet Connection Type | Threaded | |
| Ball Material | Stainless Steel | |
| Seal Material | Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced) | |
| Body Material | Stainless Steel | |
| Inlet Thread Standard | EN 10226-1 ISO 5211 | |
| Handle Material | High Alloy Steel | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | EN 10226-1 ISO 5211 | |
| Better World Claim | Repairable by the End User | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Ball Valve | ||
Inlet Connection Type Threaded | ||
Ball Material Stainless Steel | ||
Seal Material Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced) | ||
Body Material Stainless Steel | ||
Inlet Thread Standard EN 10226-1 ISO 5211 | ||
Handle Material High Alloy Steel | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals EN 10226-1 ISO 5211 | ||
Better World Claim Repairable by the End User | ||
Better World Product Yes | ||
- COO (Country of Origin):
- TW

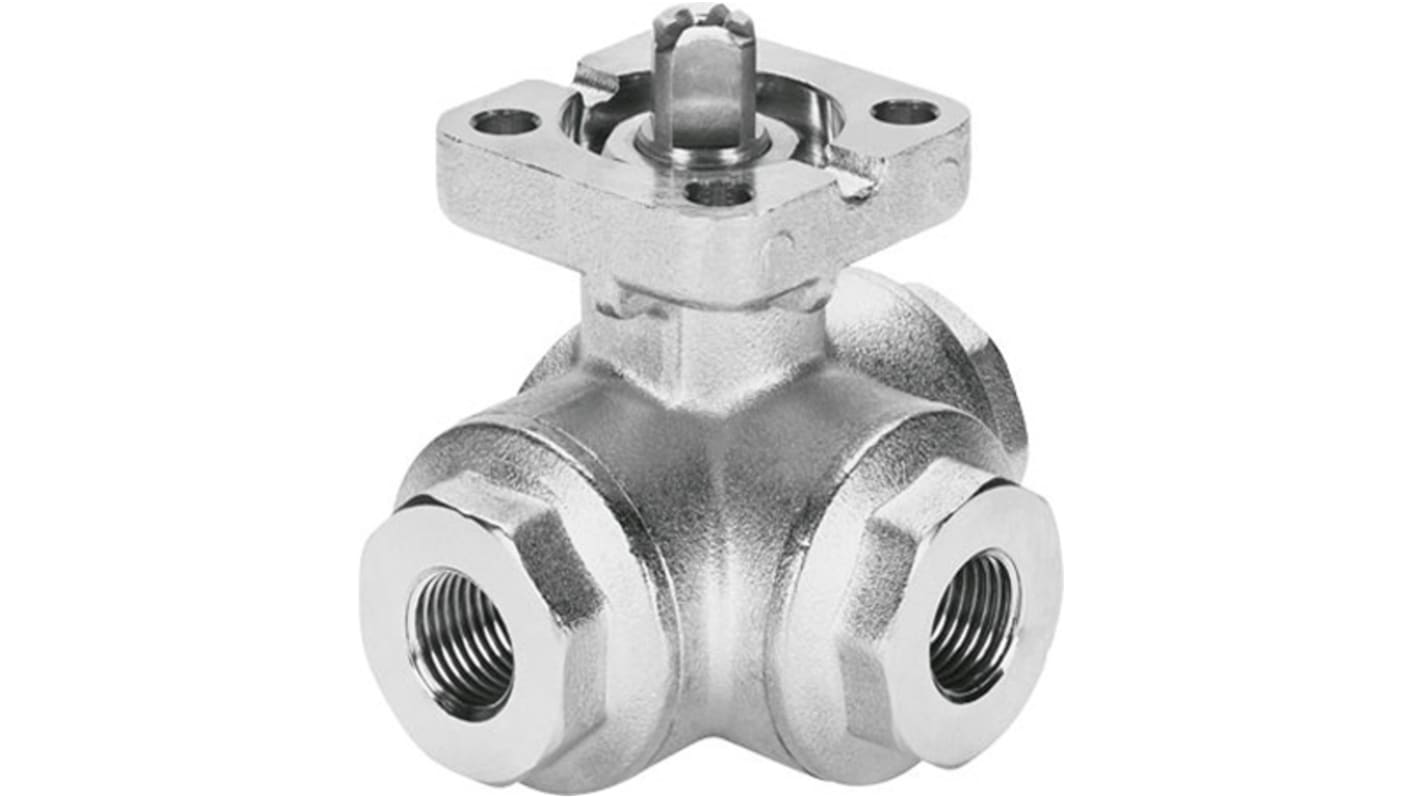

Festo VZBA Series Ball Valve, 3 Way Type, 1/4 in Thread Size - VZBA-1/4-GGG-63-32L-F0304-V4V4T, Numeric Part Number: 1692210
This is a 3-way ball valve features a threaded connection type and MADE from high-alloy stainless steel. It provides robust performance for working pressures up to 63 bar (913 psi). The valve features an inside diameter of 11.6mm and accommodates various media, including air, gas, and water.
Features & Benefits
• Incorporates mechanical actuation for reliable operation
• Soft sealing principle enhances leak prevention
• Optional mounting position for flexible installation
• Reversible flow direction facilitates diverse applications
• High corrosion resistance Ideal for harsh environments
• RoHS-compliant materials ensure environmental safety
• Soft sealing principle enhances leak prevention
• Optional mounting position for flexible installation
• Reversible flow direction facilitates diverse applications
• High corrosion resistance Ideal for harsh environments
• RoHS-compliant materials ensure environmental safety
Applications
• Used with compressed Air to facilitate pneumatic systems
• Suitable for handling inert gases in chemical processes
• Effective for regulating water in fluid management systems
• Employed in requiring Durable and reliable flow control
• Ideal for environments with high-pressure requirements
• Suitable for handling inert gases in chemical processes
• Effective for regulating water in fluid management systems
• Employed in requiring Durable and reliable flow control
• Ideal for environments with high-pressure requirements
What is the maximum media temperature tolerated by this valve?
The valve is designed to withstand a media temperature range from -10 °C to 200 °C making it suitable for various operational conditions, including those that involve hot or cold liquids.
How does the valve prevent leaks during operation?
The soft sealing principle, along with the high-alloy stainless steel construction, provides a robust sealing mechanism that minimises the risk of leaks ensuring safe and efficient operation.
What installation configurations are recommended for this valve?
This valve can be installed in-line, allowing for flexibility based on the specific requirements of the system and its layout while accommodating different mounting positions.
Can this valve handle corrosive substances?
The high corrosion resistance classification (CRC 3) indicates that it can withstand high corrosion stress, making it Ideal for managing NEUTRAL fluids and certain reactive substances.
