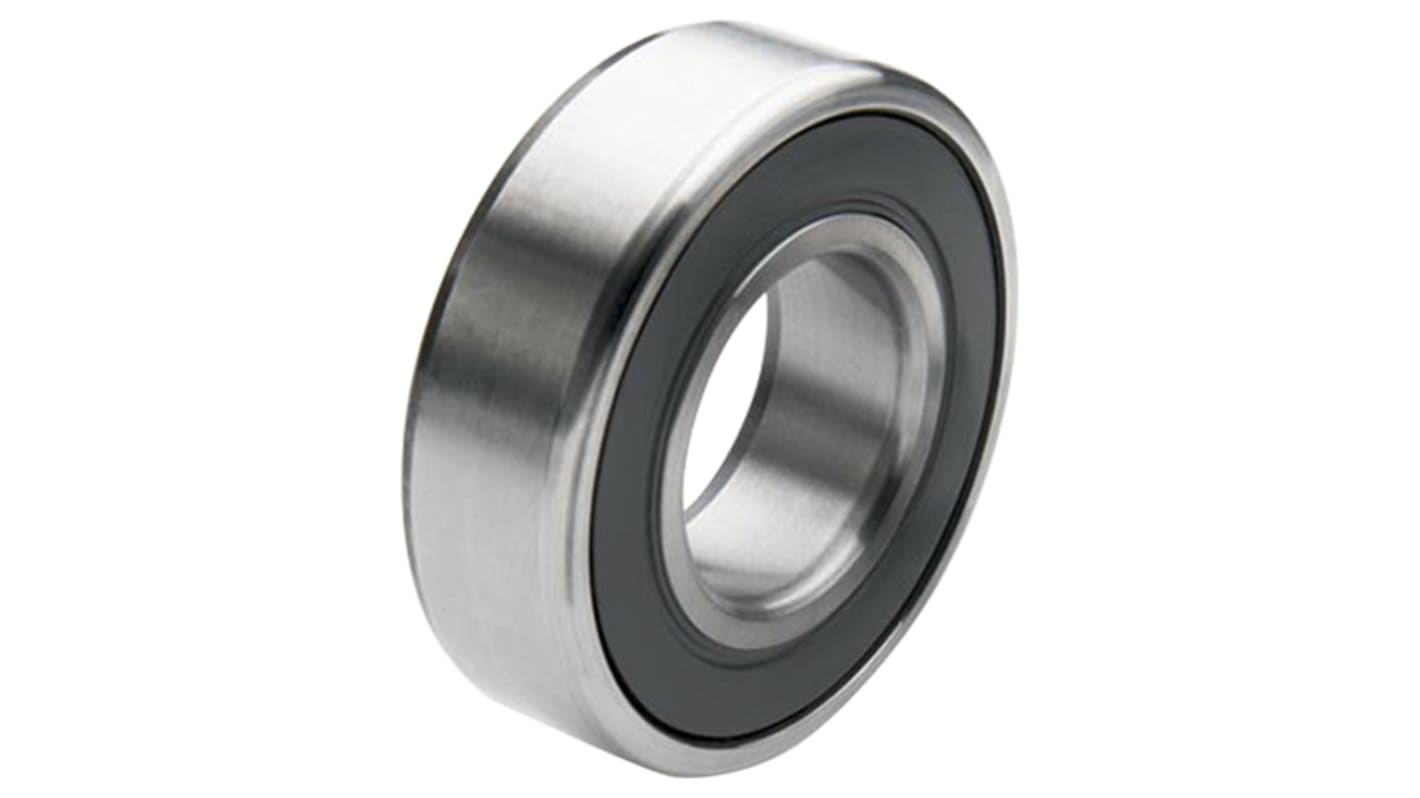

SKF W 6306-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 30mm I.D, 72mm O.D
- RS Stock No.:
- 893-0274
- Mfr. Part No.:
- W 6306-2RS1
- Brand:
- SKF
Subtotal (1 unit)*
£195.01
(exc. VAT)
£234.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £195.01 |
*price indicative
- RS Stock No.:
- 893-0274
- Mfr. Part No.:
- W 6306-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 30mm | |
| Outside Diameter | 72mm | |
| Race Width | 19mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Both Sides Sealed | |
| Bearing Clearance | CN | |
| Material | Stainless Steel | |
| Ball Material | Stainless Steel | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Static Load Rating | 15kN | |
| Dynamic Load Rating | 22.9kN | |
| Bore Type | Parallel | |
| Bearing Series | 3 Medium | |
| Race Type | Plain | |
| Partial Bearing Code | 6306 | |
| Race Material | Stainless Steel | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 30mm | ||
Outside Diameter 72mm | ||
Race Width 19mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Stainless Steel | ||
Ball Material Stainless Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 15kN | ||
Dynamic Load Rating 22.9kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Partial Bearing Code 6306 | ||
Race Material Stainless Steel | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
SKF Stainless Steel Deep Groove Ball Bearings
In the food and beverage industry, it is important to prevent bacterial growth on the machinery and reduce the risk of lubrication contaminating the product. Certified food grade lubricants are recommended. SKF Stainless Steel Deep Groove Ball Bearings are filled with H1 NSF certified food grade grease. They are corrosion resistant in environments where moisture exists and so are an excellent choice for this industry. Accommodating radial loads and axial loads in both directions, they have a lower load carrying capacity than other bearings and are made from high chromium steel.
Features and Benefits
• Resistant to corrosion in moist environments
• Versatile
• Versatile
Product Application Information
Ideal for use in the pharmaceutical, chemical, medical, printing, engines/pumps, offshore/marine and the food and beverage industry.
