NSK 6004DDUC3 N 1 Row Ball Bearing - 20 mm ID, 42 mm OD
- RS Stock No.:
- 764-3641
- Mfr. Part No.:
- 6004DDUC3 N
- Brand:
- NSK

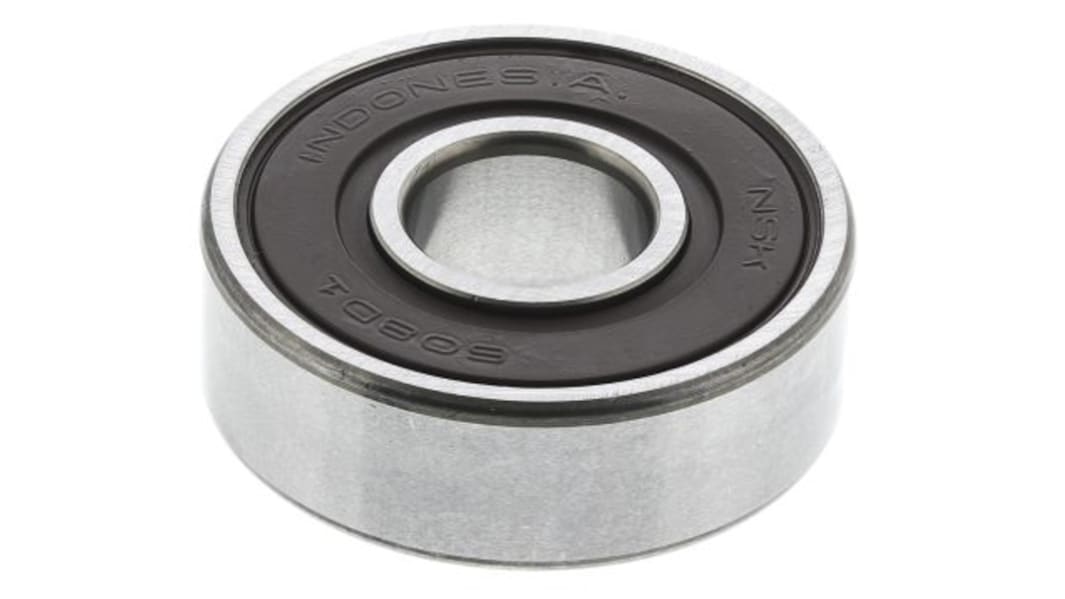

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£6.02
(exc. VAT)
£7.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 37 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.02 |
| 5 - 9 | £5.76 |
| 10 - 24 | £5.63 |
| 25 + | £5.50 |
*price indicative
- RS Stock No.:
- 764-3641
- Mfr. Part No.:
- 6004DDUC3 N
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Inside Diameter | 20 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 42 mm | |
| Race Width | 12mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 5kN | |
| Dynamic Load Rating | 9.4kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Inside Diameter 20 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 42 mm | ||
Race Width 12mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 9.4kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
NSK Metric Ball Bearings - Sealed
A range of ball bearings which are fitted with two synthetic rubber seals to prevent leakage of lubricant as well as entry of dust, water and other harmful material.
Features and Benefits
Accepts radial and axial loads
2RS denotes bearing fitted with 2 synthetic rubber seals
DDU & DD denotes bearing fitted with 2 contact synthetic rubber seals
