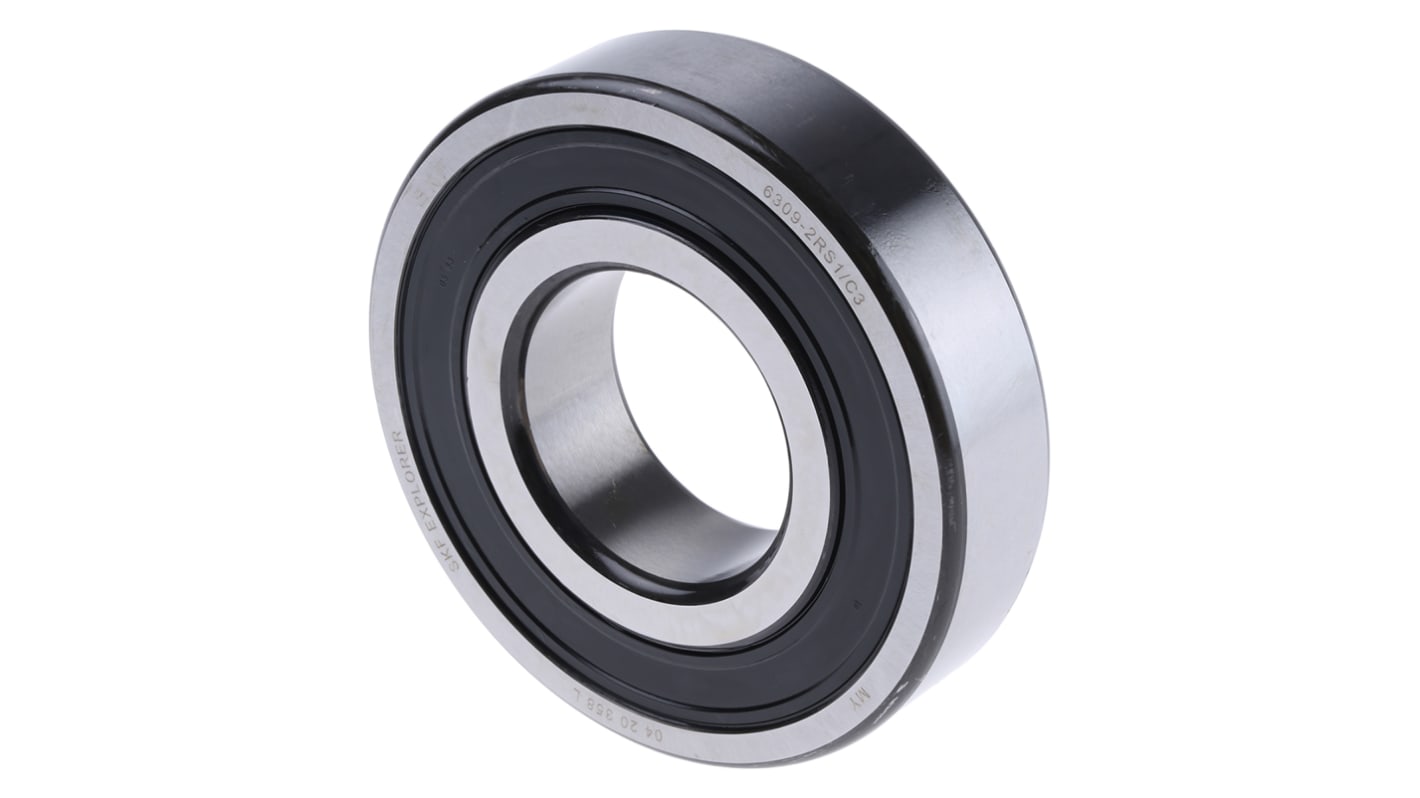

SKF 6309-2RS1/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 45mm I.D, 100mm O.D
- RS Stock No.:
- 667-1254
- Mfr. Part No.:
- 6309-2RS1/C3
- Brand:
- SKF
Save 7% when you buy 25 units
Subtotal (1 unit)*
£35.13
(exc. VAT)
£42.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 41 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £35.13 |
5 - 9 | £33.73 |
10 - 24 | £33.06 |
25 + | £32.32 |
*price indicative
- RS Stock No.:
- 667-1254
- Mfr. Part No.:
- 6309-2RS1/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 45mm | |
Outside Diameter | 100mm | |
Race Width | 25mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 31.5kN | |
Dynamic Load Rating | 55.3kN | |
Clearance Code | C3 | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Model Number p | 6309 | |
Partial Bearing Code | 6309 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Outside Diameter 100mm | ||
Race Width 25mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 31.5kN | ||
Dynamic Load Rating 55.3kN | ||
Clearance Code C3 | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Model Number p 6309 | ||
Partial Bearing Code 6309 | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
SKF 3 Medium Series Ball Bearing, Steel, Single Row Deep Groove - 6309-2RS1/C3
This SKF ball bearing is a high quality single row deep groove ball bearing designed for a variety of applications in the automation, electronics, electrical, and mechanical industries. With steel ball material and C3 clearance, this bearing offers exceptional performance and durability.
Features & Benefits
• Single row deep groove design for precise operation and smooth performance
• Steel ball material ensures high strength and durability for long lasting use
• C3 bearing clearance provides optimal internal clearance for reduced friction and heat generation
• 3 Medium series design offers a balance of load capacity and speed capabilities
• Sealed on both sides for protection against contamination and prolonging bearing life
• 45mm inside diametre and 100mm outside diametre for compatibility with a range of applications
• Sheet metal cage material for high reliability and stable operation
• Steel ball material ensures high strength and durability for long lasting use
• C3 bearing clearance provides optimal internal clearance for reduced friction and heat generation
• 3 Medium series design offers a balance of load capacity and speed capabilities
• Sealed on both sides for protection against contamination and prolonging bearing life
• 45mm inside diametre and 100mm outside diametre for compatibility with a range of applications
• Sheet metal cage material for high reliability and stable operation
Applications
• Ideal for use in conveyor systems for smooth and efficient material handling
• Suitable for electric motors to support shaft rotation with reduced friction
• Used in gearboxes to facilitate the movement of gears and components
• Perfect for industrial machinery to ensure precise and reliable operation
• Suitable for electric motors to support shaft rotation with reduced friction
• Used in gearboxes to facilitate the movement of gears and components
• Perfect for industrial machinery to ensure precise and reliable operation
Can it handle high loads?
The SKF ball bearing is designed to handle high loads with its durable steel ball material.
Will it fit in standard applications?
Yes, with a 45mm inside diametre and 100mm outside diametre, this ball bearing is suitable for a wide range of standard applications.
Is it suitable for sealed environments?
Yes, this ball bearing is sealed on both sides for protection against contamination, making it ideal for sealed environments.
