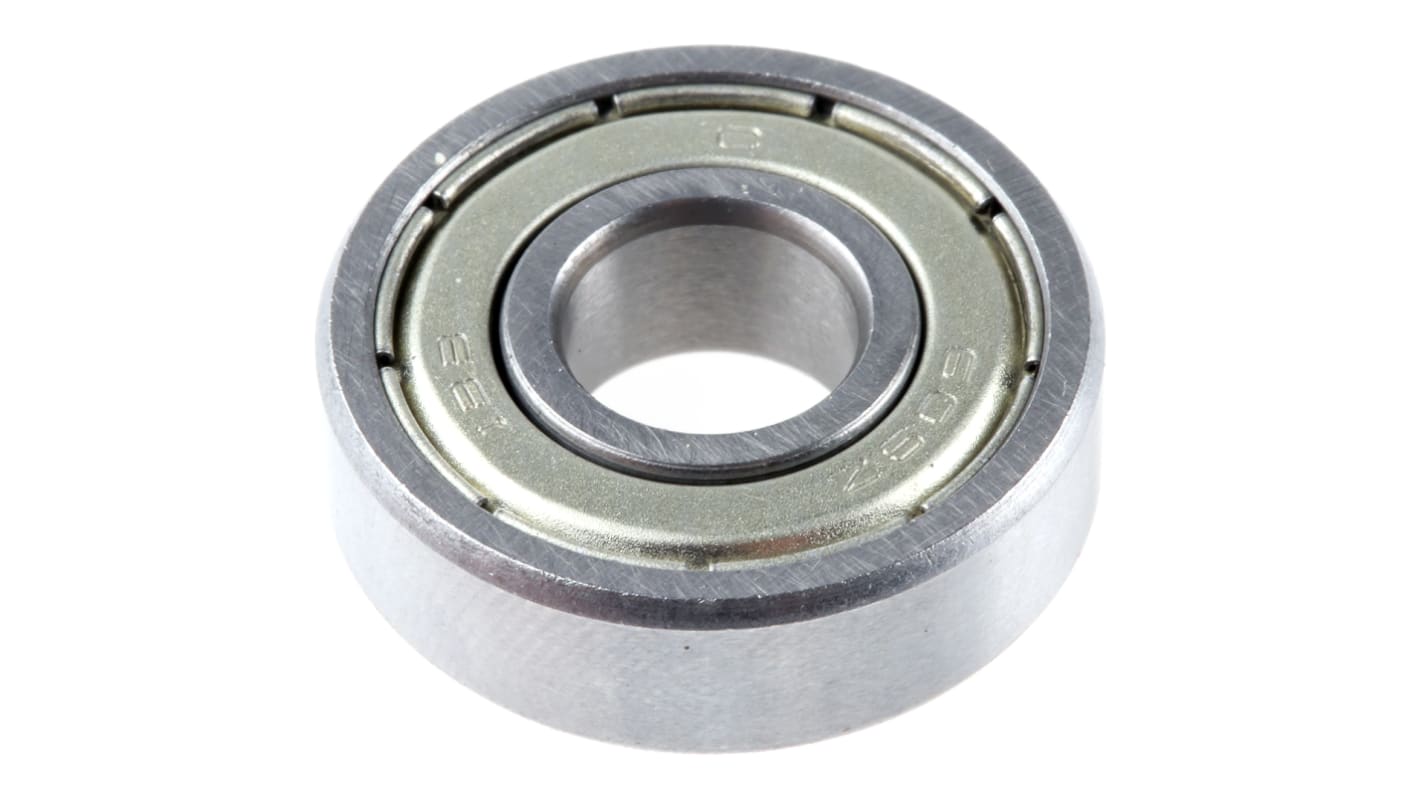

RS PRO 609-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 9mm I.D, 24mm O.D

View all Ball Bearings
Bulk discount available

Subtotal (1 unit)*

£1.86

(exc. VAT)

£2.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 257 unit(s) ready to ship
  • Plus 249 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£1.86
5 - 9£1.81
10 - 24£1.77
25 +£1.74

*price indicative

Ballbearings-Seals
Explore our Seals
Looking for Ball Bearings? Don’t Forget the Seals. Ball bearings and seals are a perfect pairing—while bearings reduce friction and support motion, seals help protect them from dust, moisture, and contaminants, extending their lifespan and performance. If you're sourcing ball bearings, it's worth checking out our range of seals to complete your setup. Explore compatible seals to ensure your application runs smoothly and reliably.
Shop Now
RS Stock No.:
619-0058
Mfr. Part No.:
609-2Z
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Inside Diameter

9mm

Outside Diameter

24mm

Race Width

7mm

Ball Bearing Type

Single Row Deep Groove Ball Bearing

Sealing Arrangement

Both Sides Shielded

Bearing Clearance

CN

Material

Steel

Ball Material

Steel

Cage Material

Steel

Number of Rows

1

Static Load Rating

1.444kN

Dynamic Load Rating

3.356kN

Bore Type

Parallel

Bearing Series

0 Extra Light

Partial Bearing Code

609

Race Type

Plain

Race Material

Steel

Bearing Reference Number

609-2Z

RoHS Status: Exempt

COO (Country of Origin):
CN

RS PRO Metric Shielded Ball Bearings


RS PRO metric shielded ball bearings are a type of ball bearing that is used in a wide range of mechanical applications, such as motors, pumps, and conveyors. These bearings are designed to provide smooth and efficient rotation of shafts by reducing friction and wear between the moving parts. RS PRO metric shielded ball bearings are single row, fitted with two metal shields to prevent ingress of dirt, and foreign matter, plus accommodate radial loads and axial loads in both directions.

Features and Benefits


  • Inner ring, outer ring, cage, and ball bearings

  • Deep raceway grooves

  • Shielded

  • Steel material

  • High performing under and high load capacity

  • Intended for use where the inner ring rotates

Applications


  • Food and Beverage Industry

  • Pharmaceutical

  • Medical industry

  • Engines and Pumps

  • Medical Industry

  • Printing

FAQs


What are deep groove ball bearings?

These are the most popular type of bearings and consist of an inner ring, outer ring, cage and ball bearings. The bearings have deep raceway grooves. These types of bearings deliver high performance and high load capacity.

Why use shielded ball bearings?

Ball bearings that spin at high speeds require lubrication and a clean environment by having the ball bearings shielded this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.
