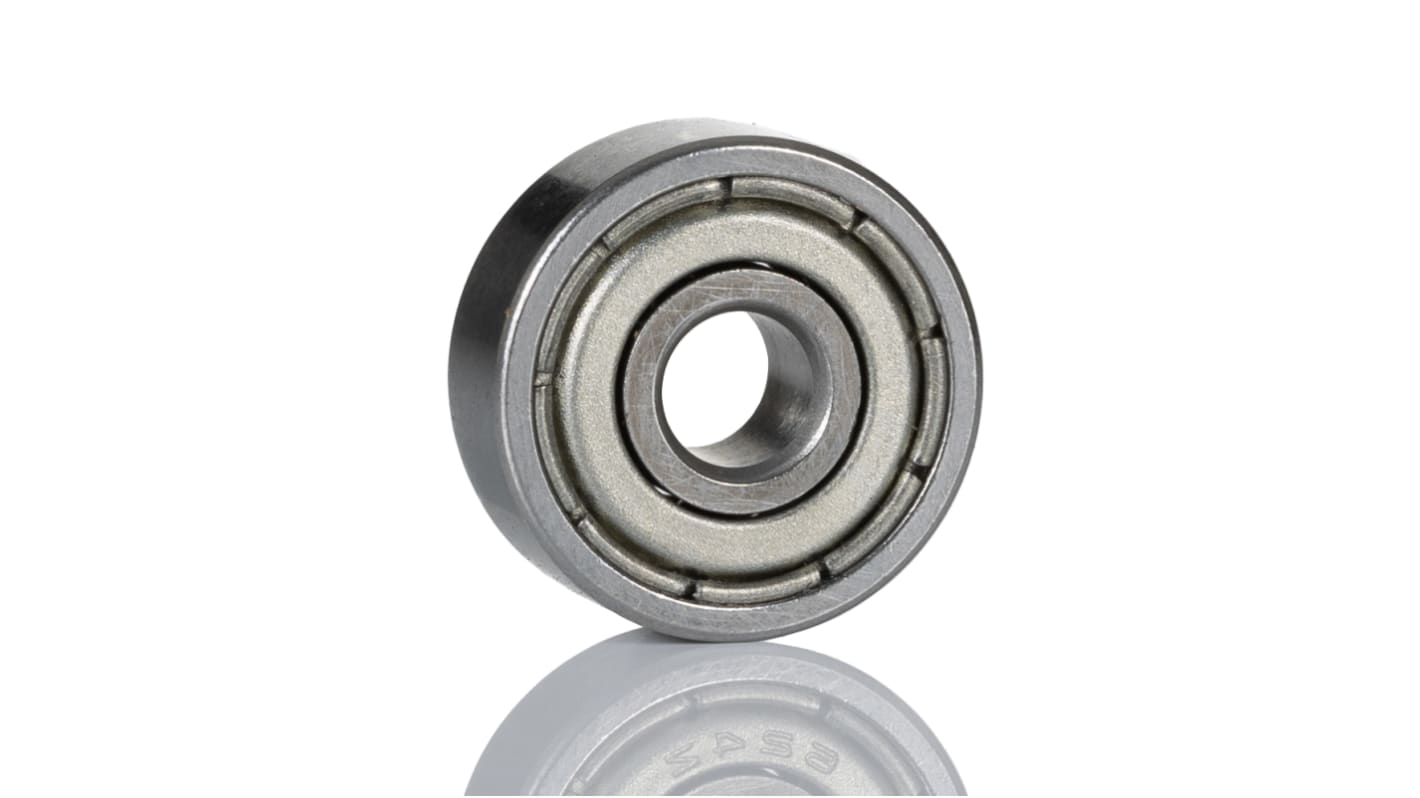

RS PRO 625-2Z 1 Row Ball Bearing - 5 mm ID, 16 mm OD 5 mm Race Width
- RS Stock No.:
- 618-9907
- Mfr. Part No.:
- 625-2Z
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£1.76
(exc. VAT)
£2.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 811 unit(s) ready to ship
- Plus 398 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £1.76 |
| 5 - 9 | £1.73 |
| 10 - 24 | £1.69 |
| 25 + | £1.66 |
*price indicative
- RS Stock No.:
- 618-9907
- Mfr. Part No.:
- 625-2Z
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 5 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 16 mm | |
| Race Width | 5mm | |
| Cage Material | Steel | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 675kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 1.729kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 39600rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Distrelec Product Id | 30419507 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 5 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 16 mm | ||
Race Width 5mm | ||
Cage Material Steel | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Static Load Rating 675kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 1.729kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 39600rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
Distrelec Product Id 30419507 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Small Pack Size: 618-9907
Large Pack Size: 261-2633
RS PRO Metric Shielded Ball Bearings
RS PRO metric shielded ball bearings are a type of ball bearing that is used in a wide range of mechanical applications, such as motors, pumps, and conveyors. These bearings are designed to provide smooth and efficient rotation of shafts by reducing friction and wear between the moving parts. RS PRO metric shielded ball bearings are single row, fitted with two metal shields to prevent ingress of dirt, and foreign matter, plus accommodate radial loads and axial loads in both directions.
Features and Benefits
Applications
FAQs
What are deep groove ball bearings?
These are the most popular type of bearings and consist of an inner ring, outer ring, cage and ball bearings. The bearings have deep raceway grooves. These types of bearings deliver high performance and high load capacity.
Why use shielded ball bearings?
Ball bearings that spin at high speeds require lubrication and a clean environment by having the ball bearings shielded this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.
