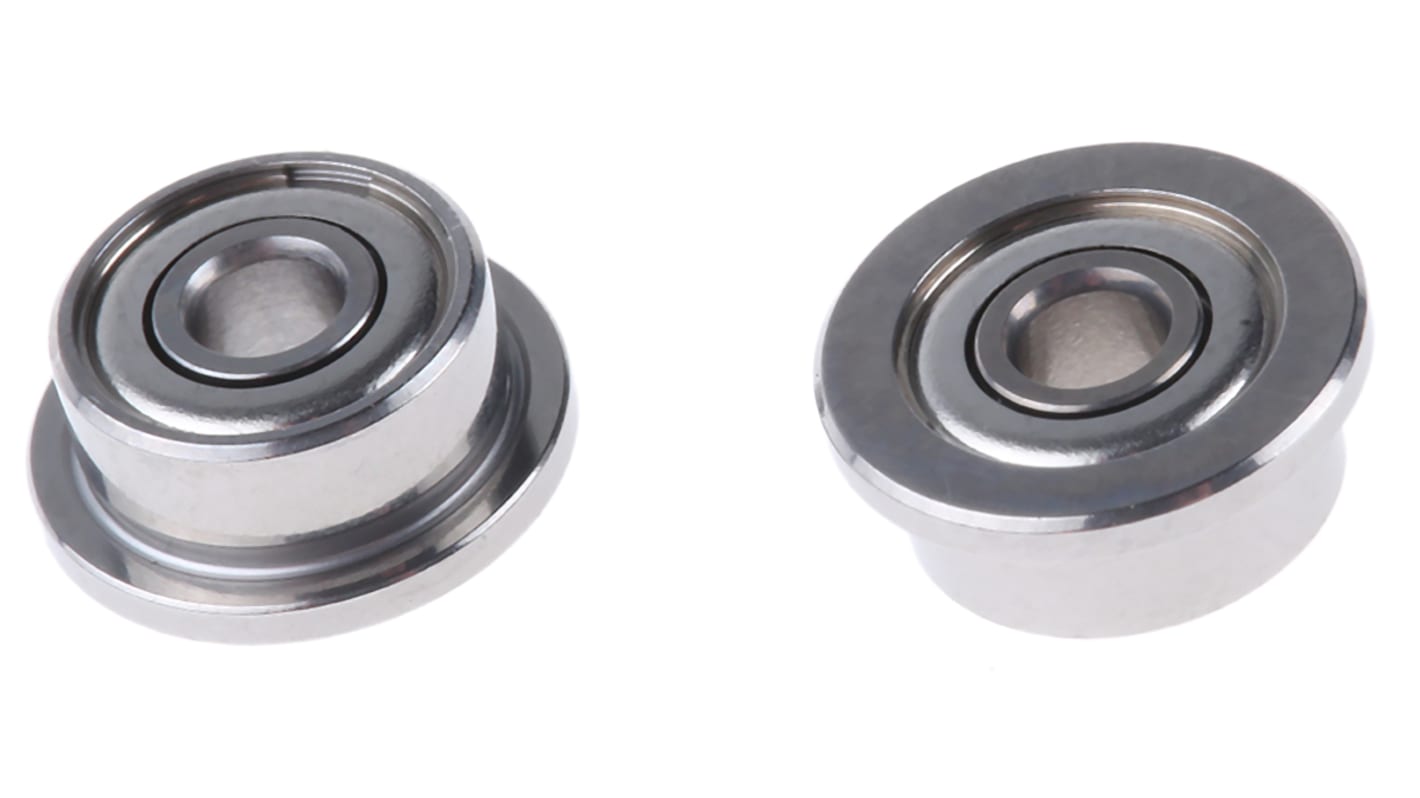

NMB DDRF-620ZZHA1P25LY72 Double Row Deep Groove Ball Bearing- Both Sides Shielded 2mm I.D, 6.0mm O.D
- RS Stock No.:
- 612-5997
- Mfr. Part No.:
- DDRF-620ZZHA1P25LY72
- Brand:
- NMB
Bulk discount available
Subtotal (1 pack of 2 units)*
£13.41
(exc. VAT)
£16.092
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 106 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £6.705 | £13.41 |
10 - 18 | £6.435 | £12.87 |
20 - 48 | £6.30 | £12.60 |
50 + | £6.155 | £12.31 |
*price indicative
- RS Stock No.:
- 612-5997
- Mfr. Part No.:
- DDRF-620ZZHA1P25LY72
- Brand:
- NMB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | NMB | |
Inside Diameter | 2mm | |
Outside Diameter | 6.0mm | |
Race Width | 2.3mm | |
Ball Bearing Type | Double Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Stainless Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 89kN | |
Dynamic Load Rating | 279N | |
Bore Type | Parallel | |
Flange Outside Diameter | 7.5mm | |
Race Material | Martensitic Stainless Steel | |
Partial Bearing Code | DDRF-620ZZ | |
Race Type | Flanged | |
Select all | ||
---|---|---|
Brand NMB | ||
Inside Diameter 2mm | ||
Outside Diameter 6.0mm | ||
Race Width 2.3mm | ||
Ball Bearing Type Double Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Stainless Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 89kN | ||
Dynamic Load Rating 279N | ||
Bore Type Parallel | ||
Flange Outside Diameter 7.5mm | ||
Race Material Martensitic Stainless Steel | ||
Partial Bearing Code DDRF-620ZZ | ||
Race Type Flanged | ||
Metric & Imperial Bearings - ABEC 5
NMB metric and imperial bearings manufactured to ABEC 5. The bearings are suitable for use with precision instruments, chart recorders, etc. Manufactured from corrosion-resistant steel, the bearings are available in two designs: plain and flanged. The metric and imperial bearings incorporate double metallic protection shields, and the metric plain bearings are also available in Chromium Steel.
