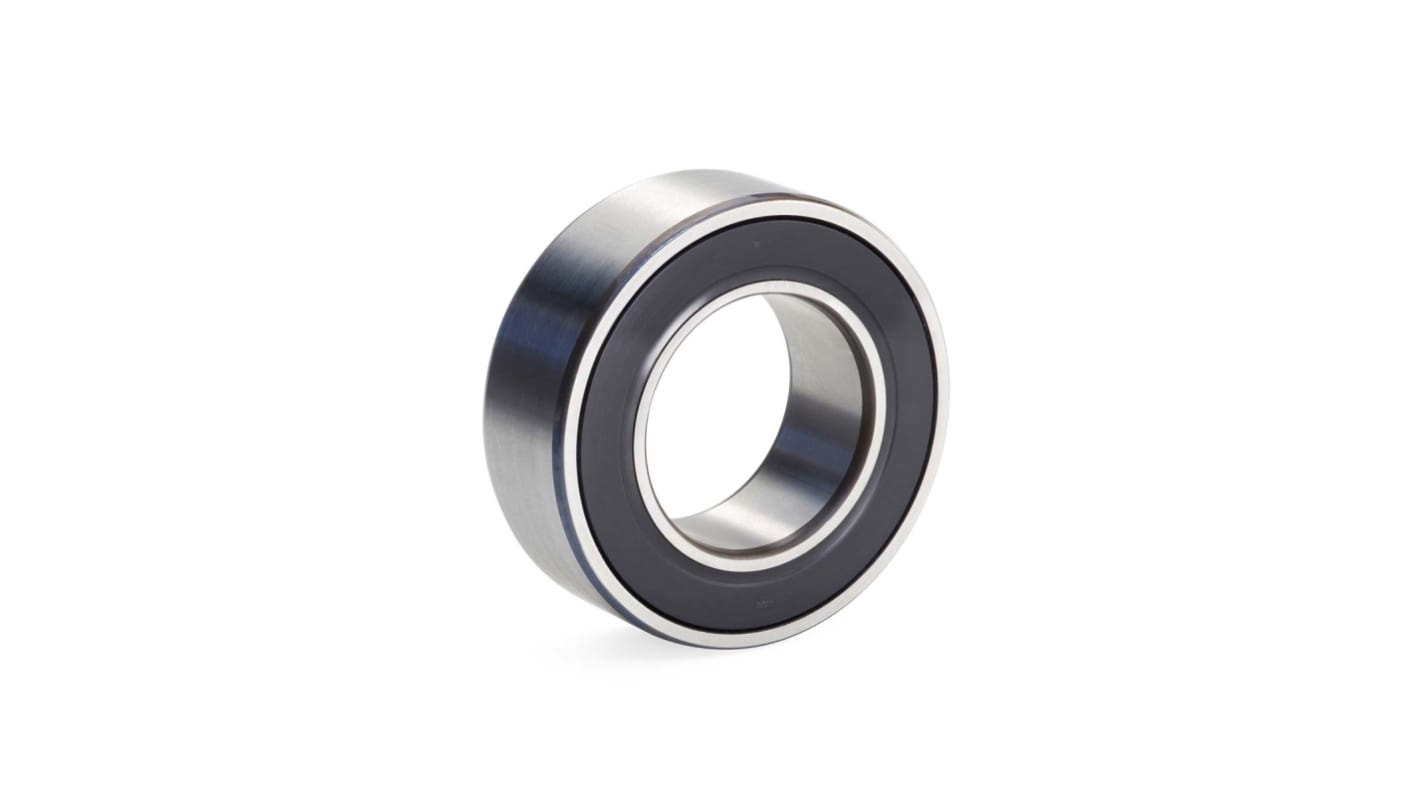

SKF 3206 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 30mm I.D, 62mm O.D
- RS Stock No.:
- 285-1715
- Mfr. Part No.:
- 3206 A-2RS1TN9/MT33
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£62.05
(exc. VAT)
£74.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 999,999,999 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £62.05 |
5 - 9 | £59.56 |
10 - 24 | £58.33 |
25 + | £57.08 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£52.61
(exc. VAT)
£63.13
(inc. VAT)
- RS Stock No.:
- 285-1715
- Mfr. Part No.:
- 3206 A-2RS1TN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 30mm | |
Outside Diameter | 62mm | |
Race Width | 23.8mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 22kN | |
Dynamic Load Rating | 30.5kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 3206 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 30mm | ||
Outside Diameter 62mm | ||
Race Width 23.8mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 22kN | ||
Dynamic Load Rating 30.5kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 3206 | ||
SKF Plain Angular Contact Ball Bearing, 30mm ID, 62mm OD - 3206-A-2RS1TN9/MT33
This double-row angular contact ball bearing from SKF features offset inner and outer raceways to provide robust support for combined radial and axial loads. The precision-designed crown cage provides reliable ball guidance to reduce friction and wear, ensuring a long product life. A fibreglass-reinforced nylon 66 cage material gives the bearing enhanced self-lubricating capacity and higher elasticity. This means it can operate at high speeds of up to 7500rpm (rotations per minute) with reduced noise, vibration and heat generation.
• Dynamic load rating of 30kN for substantial rotational power
• Parallel bore enables quick mounting onto a shaft
• Sealed end retains lubricant and prevents damage from dirt and moisture for a longer service life
• Lubricated for the life of the bearing so no maintenance is necessary
• Parallel bore enables quick mounting onto a shaft
• Sealed end retains lubricant and prevents damage from dirt and moisture for a longer service life
• Lubricated for the life of the bearing so no maintenance is necessary
Applications
• Lifts
• Compressors
• Agricultural machinery
• Pumps and motors
• Compressors
• Agricultural machinery
• Pumps and motors
What's this bearing made of?
The balls and raceways are made of an advanced kind of steel called NitroMax steel, which offers excellent corrosion resistance and has a high nitrogen content for superior durability. This material also features a low coefficient of thermal expansion, which means the balls can better maintain their preload during operation. This allows for minimal heat generation and longer lubricant life.
