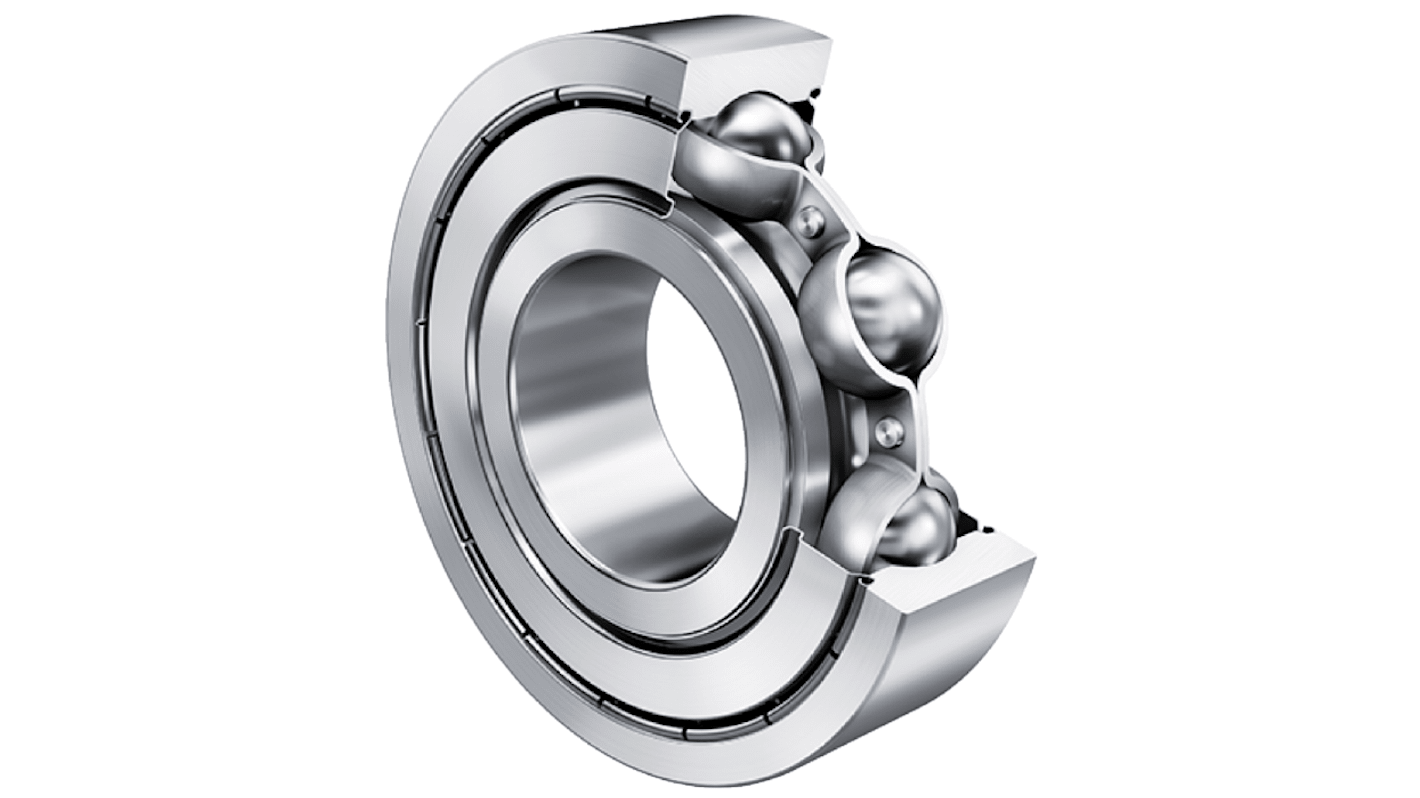

FAG 6204-C-2Z-C3>V 1 Row Ball Bearing - 20 mm ID, 47 mm OD
- RS Stock No.:
- 260-0872
- Mfr. Part No.:
- 6204-C-2Z-C3>V
- Brand:
- FAG
Subtotal (1 unit)*
£5.38
(exc. VAT)
£6.46
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £5.38 |
*price indicative
- RS Stock No.:
- 260-0872
- Mfr. Part No.:
- 6204-C-2Z-C3>V
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20mm | |
| Outside Diameter | 47mm | |
| Race Width | 14mm | |
| Cage Material | Steel Sheet Metal | |
| Ball Material | Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Static Load Rating | 6.6kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 14.7kN | |
| Series | Generation C | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 20600rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Race Width 14mm | ||
Cage Material Steel Sheet Metal | ||
Ball Material Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Static Load Rating 6.6kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 14.7kN | ||
Series Generation C | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 20600rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
Schaeffler Generation C Series Ball Bearing, 20mm Inside Diameter, 47mm Outside Diameter - 6204-C-2Z-C3 >V
This ball bearing is a sealed, single-row deep-groove component designed to support radial loads and enable rotary motion in industrial assemblies. It is intended for use where compact, sealed bearings are required for rotations at elevated speeds within typical operating temperatures encountered in automation and electrical machinery.
Features & Benefits
• 20600 r/min limiting speed enables high-speed operation
• 14.7 kN dynamic rating supports heavy radial duty
• 6.6 kN static rating maintains positional integrity at rest
• Steel sheet-metal cage offers Durable ball guidance
• Closed double-seal protects internal elements from contamination
• 14.7 kN dynamic rating supports heavy radial duty
• 6.6 kN static rating maintains positional integrity at rest
• Steel sheet-metal cage offers Durable ball guidance
• Closed double-seal protects internal elements from contamination
**Applications**
• Suitable for spindle drives in small automation systems
• Ideal for cooling fans in electronic enclosures
• Used for motor shafts in electric drive units
• Can be used for precision rollers in conveyor modules
• Ideal for cooling fans in electronic enclosures
• Used for motor shafts in electric drive units
• Can be used for precision rollers in conveyor modules
What shaft shoulder and housing shoulder dimensions must I check for mounting?
Ensure the shaft shoulder diameter meets the minimum 25.6mm requirement and the housing shoulder does not exceed 41.4mm to achieve correct axial location.
What temperature range can the bearing operate within?
It is rated for operation from -20°C up to 120°C, permitting use across typical industrial thermal environments.
How should I consider fillet and chamfer constraints during installation?
The maximum allowable fillet radius at mating surfaces is 1mm and the minimum chamfer is 1mm to avoid interference with ring edges.
What are the rotational endurance considerations for fatigue performance?
The bearing’s radial fatigue limit is 455 N, which indicates the threshold for long-term material fatigue under cyclic loading.
What installation clearances relate to reference running speed?
The reference running speed is 18,100 r/min
use this when assessing lubrication regimes and thermal growth for continuous operation.
