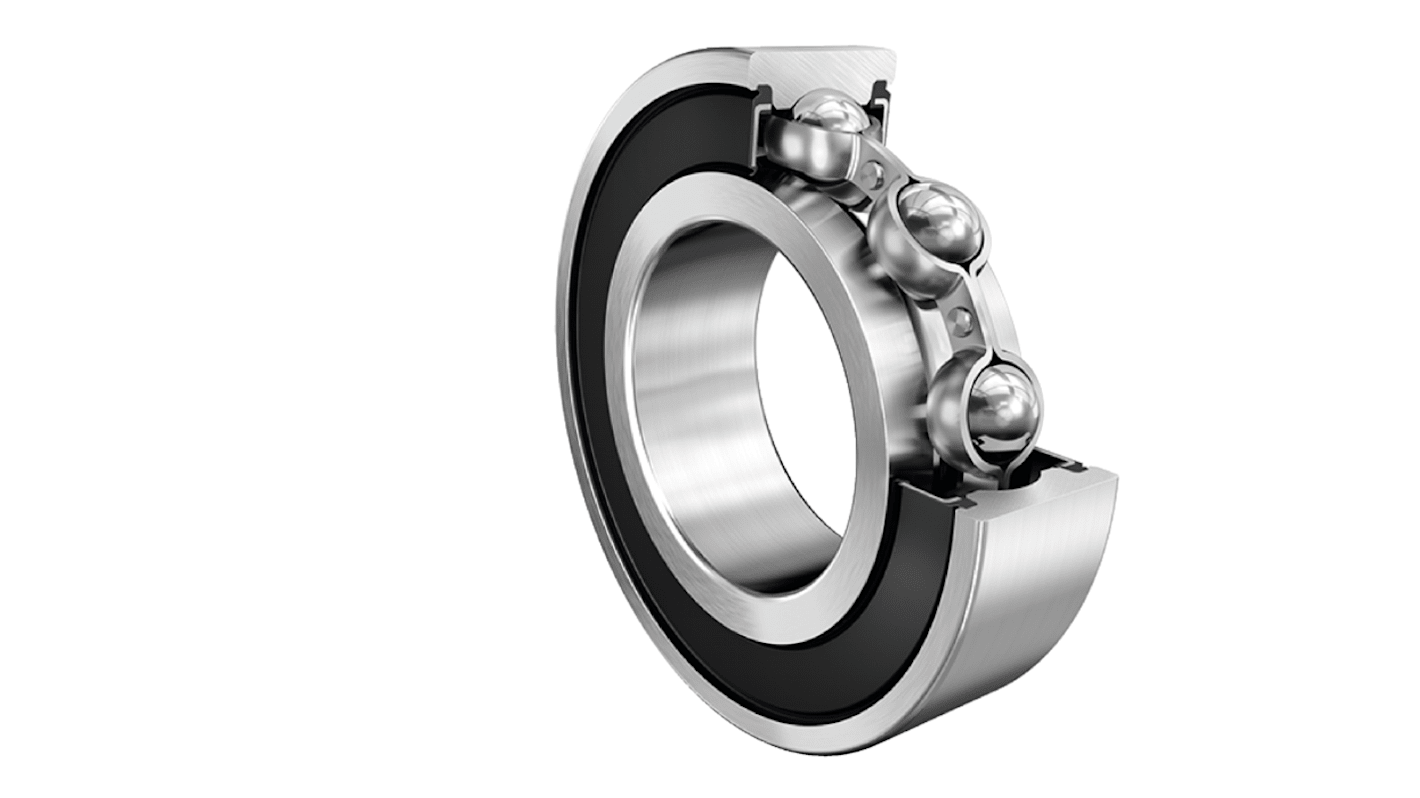

FAG S6306-2RSR-HLC 1 Row Ball Bearing - 30 mm ID, 72 mm OD
- RS Stock No.:
- 260-0683
- Mfr. Part No.:
- S6306-2RSR-HLC
- Brand:
- FAG
Subtotal (1 unit)*
£124.04
(exc. VAT)
£148.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £124.04 |
*price indicative
- RS Stock No.:
- 260-0683
- Mfr. Part No.:
- S6306-2RSR-HLC
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 30 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 72 mm | |
| Race Width | 19mm | |
| Cage Material | Steel | |
| Ball Material | Stainless Steel | |
| End Type | Closed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 12kN | |
| Dynamic Load Rating | 22.7kN | |
| Series | S6306-2RSR-HLC | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 6000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 30 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 72 mm | ||
Race Width 19mm | ||
Cage Material Steel | ||
Ball Material Stainless Steel | ||
End Type Closed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 12kN | ||
Dynamic Load Rating 22.7kN | ||
Series S6306-2RSR-HLC | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 6000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
The FAG deep groove ball bearing has 30 mm bore diameter and 19 mm width with 10.6 calculation factor.
Operating temperature -30 to 100 °C
