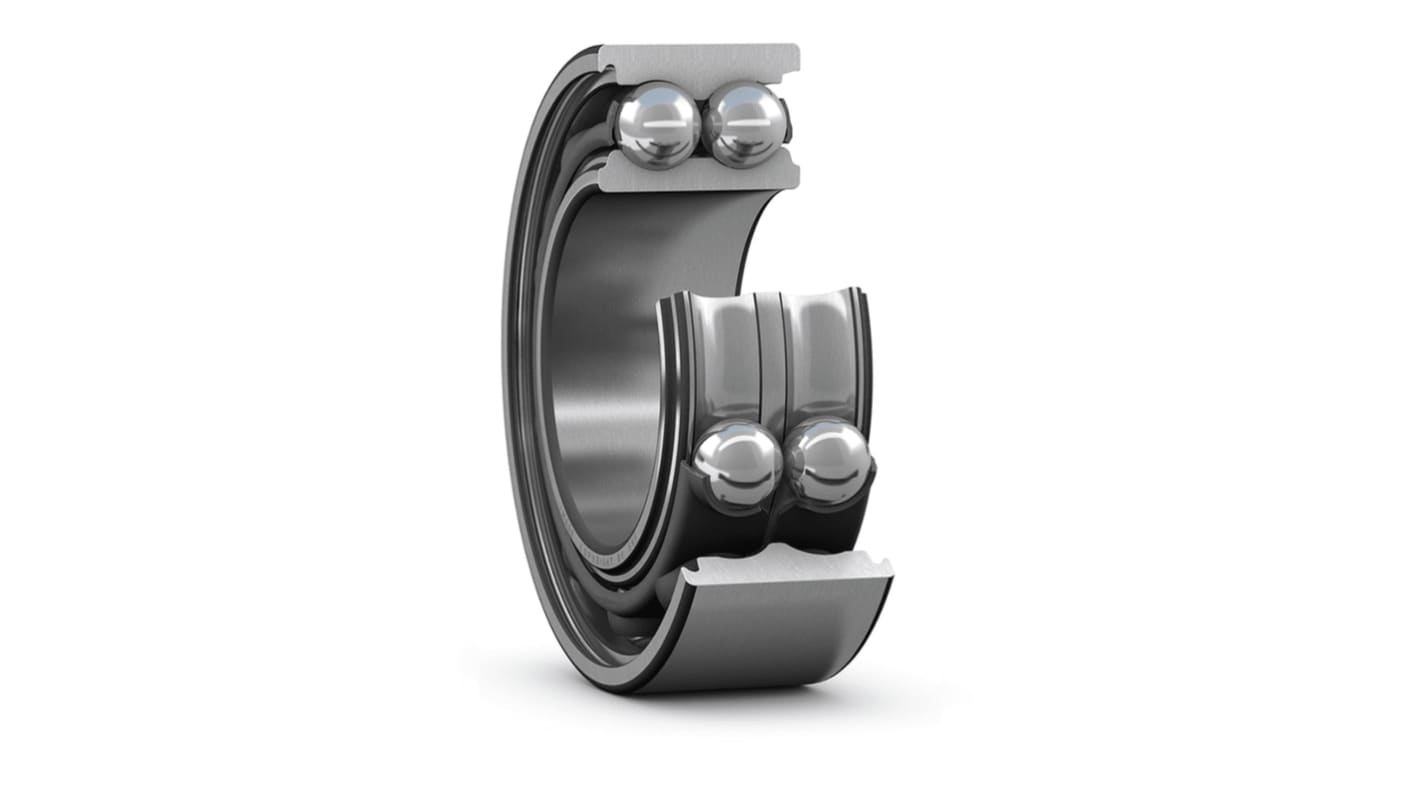

SKF 3311 ANR 2 Row Ball Bearing - 55 mm ID, 120 mm OD 49.2 mm Race Width
- RS Stock No.:
- 233-0636
- Mfr. Part No.:
- 3311 ANR
- Brand:
- SKF
Subtotal (1 unit)*
£449.54
(exc. VAT)
£539.45
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £449.54 |
*price indicative
- RS Stock No.:
- 233-0636
- Mfr. Part No.:
- 3311 ANR
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 55mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 120mm | |
| Race Width | 49.2mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 2 | |
| Internal Clearance | C3 | |
| Static Load Rating | 81.5kN | |
| Contact Angle | 30° | |
| Dynamic Load Rating | 112kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Series | 3 Medium | |
| Limiting Speed | 5300rpm | |
| Race Type | Plain | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 55mm | ||
Product Type Ball Bearing | ||
Outside Diameter 120mm | ||
Race Width 49.2mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 2 | ||
Internal Clearance C3 | ||
Static Load Rating 81.5kN | ||
Contact Angle 30° | ||
Dynamic Load Rating 112kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Series 3 Medium | ||
Limiting Speed 5300rpm | ||
Race Type Plain | ||
Bearing Type Double Row Angular Contact Ball | ||
The SKF double row angular contact ball bearing has 81.5 kN basic static load rating(Co) and 112 kN basic dynamic load rating. It has snap ring groove in the outer ring with appropriate snap ring. This bearing corresponds to two single row angular contact ball bearings arranged back-to-back. It requires less axial space therefore it can be used for applications where two single row angular contact ball bearings arranged back-to-back take up too much axial space. It accommodates radial as well as axial loads in either direction.
5300 r/min limiting speed
Accommodates tilting moments
Stiff bearing arrangement
