SKF 1218 K/C3 90 mm ID 2 Row Ball Bearing -, 160 mm OD
- RS Stock No.:
- 209-1777
- Mfr. Part No.:
- 1218 K/C3
- Brand:
- SKF
Subtotal (1 unit)*
£218.27
(exc. VAT)
£261.92
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £218.27 |
*price indicative
- RS Stock No.:
- 209-1777
- Mfr. Part No.:
- 1218 K/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 90mm | |
| Outside Diameter | 160mm | |
| Race Width | 30mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 2 | |
| Static Load Rating | 23.6kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 57.2kN | |
| Bore Type | Tapered | |
| Series | Self-aligning ball bearings | |
| Standards/Approvals | No | |
| Limiting Speed | 5300rpm | |
| Bearing Type | Self-Aligning | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 90mm | ||
Outside Diameter 160mm | ||
Race Width 30mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 2 | ||
Static Load Rating 23.6kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 57.2kN | ||
Bore Type Tapered | ||
Series Self-aligning ball bearings | ||
Standards/Approvals No | ||
Limiting Speed 5300rpm | ||
Bearing Type Self-Aligning | ||

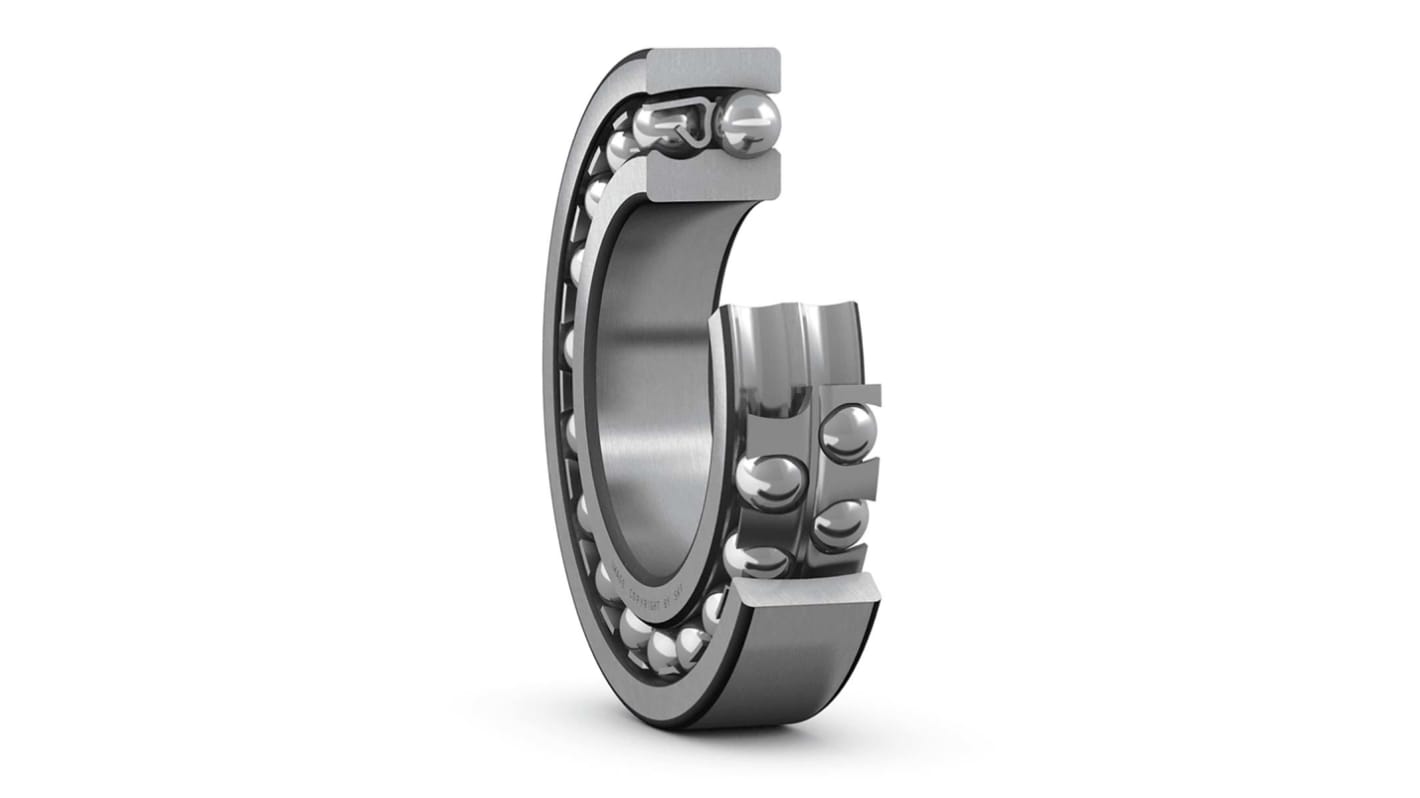

The SKF self-aligning ball bearings with two rows of balls having bore diameter 90mm and outside diameter 160mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.
Tapered type bore
Steel bearing
