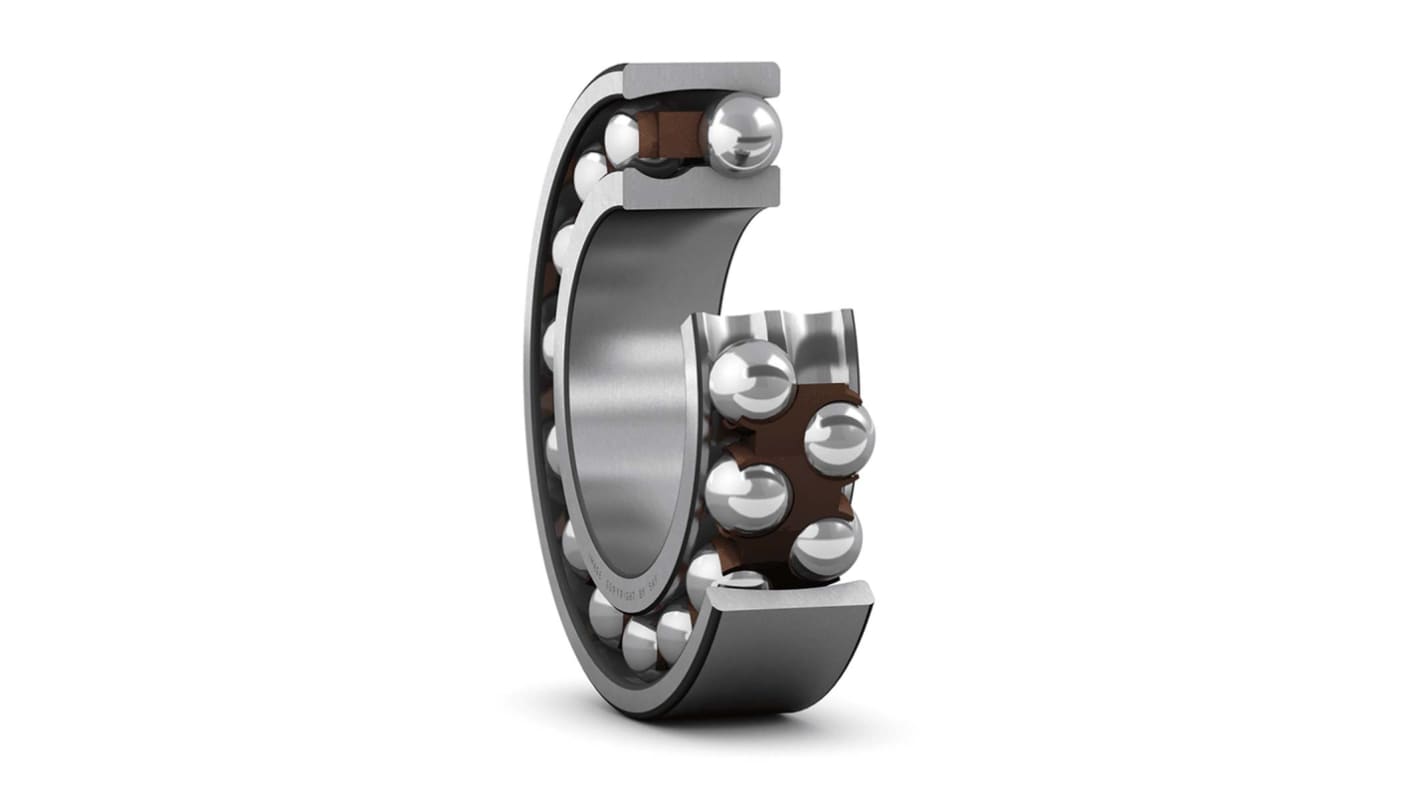

SKF 1207 EKTN9/C3 Self Aligning Ball Bearing- Open Type 35mm I.D, 72mm O.D
- RS Stock No.:
- 209-1753
- Mfr. Part No.:
- 1207 EKTN9/C3
- Brand:
- SKF
Subtotal (1 unit)*
£35.27
(exc. VAT)
£42.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £35.27 |
*price indicative
- RS Stock No.:
- 209-1753
- Mfr. Part No.:
- 1207 EKTN9/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 35mm | |
Outside Diameter | 72mm | |
Race Width | 17mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 6kN | |
Dynamic Load Rating | 19kN | |
Bore Type | Tapered | |
Clearance Code | C3 | |
Bearing Series | 2 Light | |
Model Number p | 1207 | |
Partial Bearing Code | 1207 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 35mm | ||
Outside Diameter 72mm | ||
Race Width 17mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 6kN | ||
Dynamic Load Rating 19kN | ||
Bore Type Tapered | ||
Clearance Code C3 | ||
Bearing Series 2 Light | ||
Model Number p 1207 | ||
Partial Bearing Code 1207 | ||
SKF Ball Bearing, 35mm Inside Diameter, 72mm Outside Diameter - 1207 EKTN9/C3
This self-aligning ball bearing is designed for various industrial applications, featuring an inside diameter of 35mm and an outside diameter of 72mm. This open type design allows for easy operation while accommodating some misalignment. Constructed from high-quality steel, it ensures robustness and durability, with a race width of 17mm making it ideal for heavy-duty tasks.
Features & Benefits
• Self-aligning feature compensates for shaft misalignment
• C3 clearance optimises performance under load
• Tapered bore design enhances fitting accuracy
• Open type construction allows for easy lubrication
• Double-row design improves load distribution and stability
• Dynamic load rating of 19kN supports heavy operations
• C3 clearance optimises performance under load
• Tapered bore design enhances fitting accuracy
• Open type construction allows for easy lubrication
• Double-row design improves load distribution and stability
• Dynamic load rating of 19kN supports heavy operations
Applications
• Used for mounting in rotating machinery
• Suitable for conveyor systems and processing equipment
• Utilised in electric motors and generators
• Employed in various mechanical transmissions and assemblies
• Suitable for conveyor systems and processing equipment
• Utilised in electric motors and generators
• Employed in various mechanical transmissions and assemblies
How does the self-aligning feature contribute to performance?
This feature allows the bearing to adjust itself when misalignment occurs, reducing wear and prolonging service life by ensuring consistent contact with the raceway.
What kind of environment can this bearing be used in?
It is ideal for normal operating conditions due to its open type design which allows adequate airflow, helping to dissipate heat during operation.
What maintenance is required to ensure optimal performance?
Periodic lubrication is essential to minimise friction and prevent premature wear, allowing for smoother operation and longevity of the bearing.
What is the effect of the C3 clearance in operation?
The C3 clearance provides a wider than normal internal space, permitting thermal expansion and accommodating operational changes without compromising performance.
How does the weight of this bearing affect its application?
With a mass of 0.32kg, it is lightweight enough for easy installation while being robust enough to handle significant loads in various applications.
