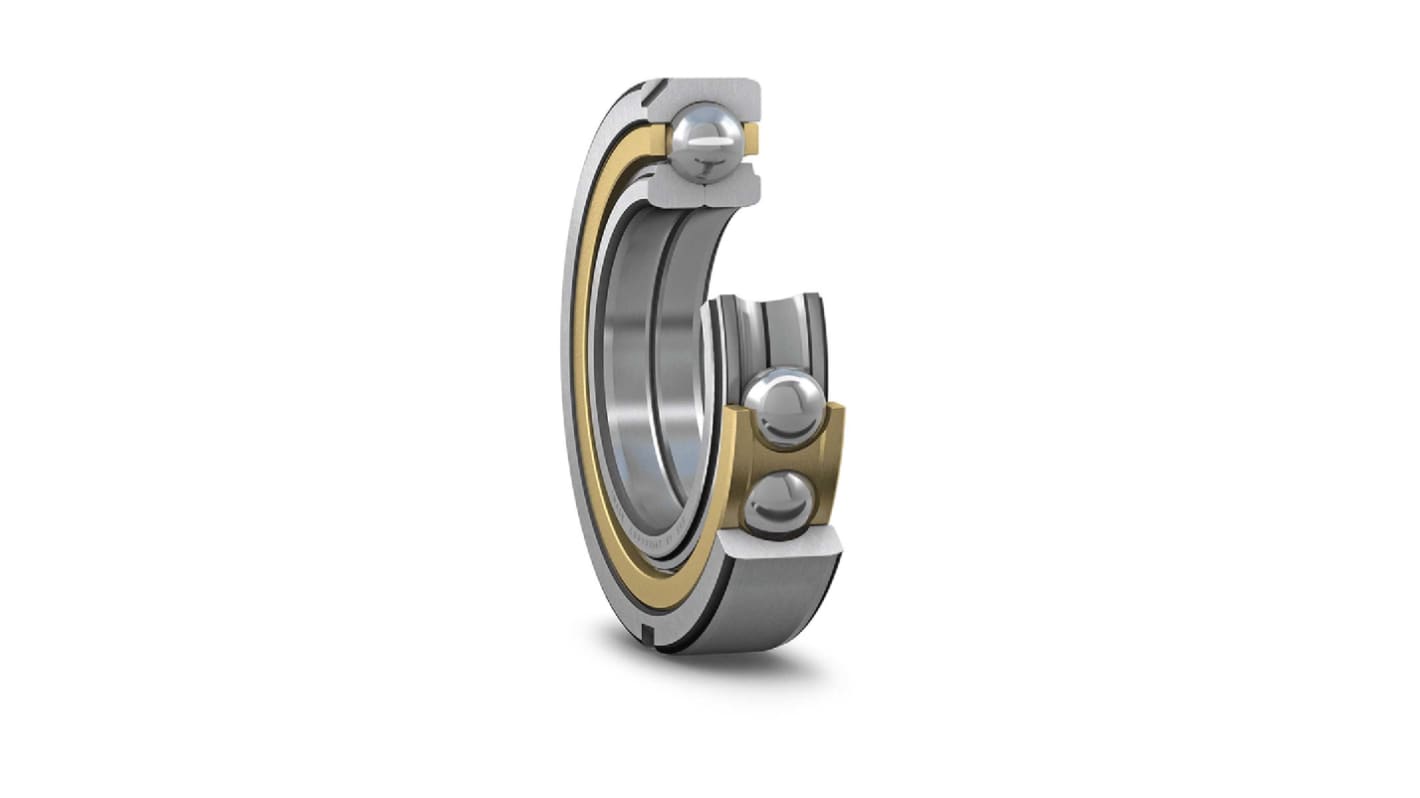

SKF QJ 214 N2MA Single Row Angular Contact Ball Bearing- Open Type 70mm I.D, 125mm O.D
- RS Stock No.:
- 208-0399
- Mfr. Part No.:
- QJ 214 N2MA
- Brand:
- SKF
Subtotal (1 unit)*
£309.16
(exc. VAT)
£370.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £309.16 |
*price indicative
- RS Stock No.:
- 208-0399
- Mfr. Part No.:
- QJ 214 N2MA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 70mm | |
Outside Diameter | 125mm | |
Race Width | 24mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Machined Metal | |
Number of Rows | 1 | |
Static Load Rating | 122kN | |
Dynamic Load Rating | 120kN | |
Bore Type | Parallel | |
Partial Bearing Code | QJ 214 N2MA | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 70mm | ||
Outside Diameter 125mm | ||
Race Width 24mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
Number of Rows 1 | ||
Static Load Rating 122kN | ||
Dynamic Load Rating 120kN | ||
Bore Type Parallel | ||
Partial Bearing Code QJ 214 N2MA | ||
- COO (Country of Origin):
- DE
The SKF Angular contact ball bearing has 70mm inner and 125mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Single row design
Cylindrical bore type
Steel bearing
Cylindrical bore type
Steel bearing
