- RS Stock No.:
- 208-0329
- Mfr. Part No.:
- BA 5
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 5mm | |
| Outside Diameter | 12mm | |
| Race Width | 4mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| Race Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 965kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 852N | |
| Series | BA | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 28000rpm | |
| Flange Outside Diameter | 12mm | |
| Bearing Type | Thrust Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 5mm | ||
Outside Diameter 12mm | ||
Race Width 4mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
Race Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 965kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 852N | ||
Series BA | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 28000rpm | ||
Flange Outside Diameter 12mm | ||
Bearing Type Thrust Ball | ||

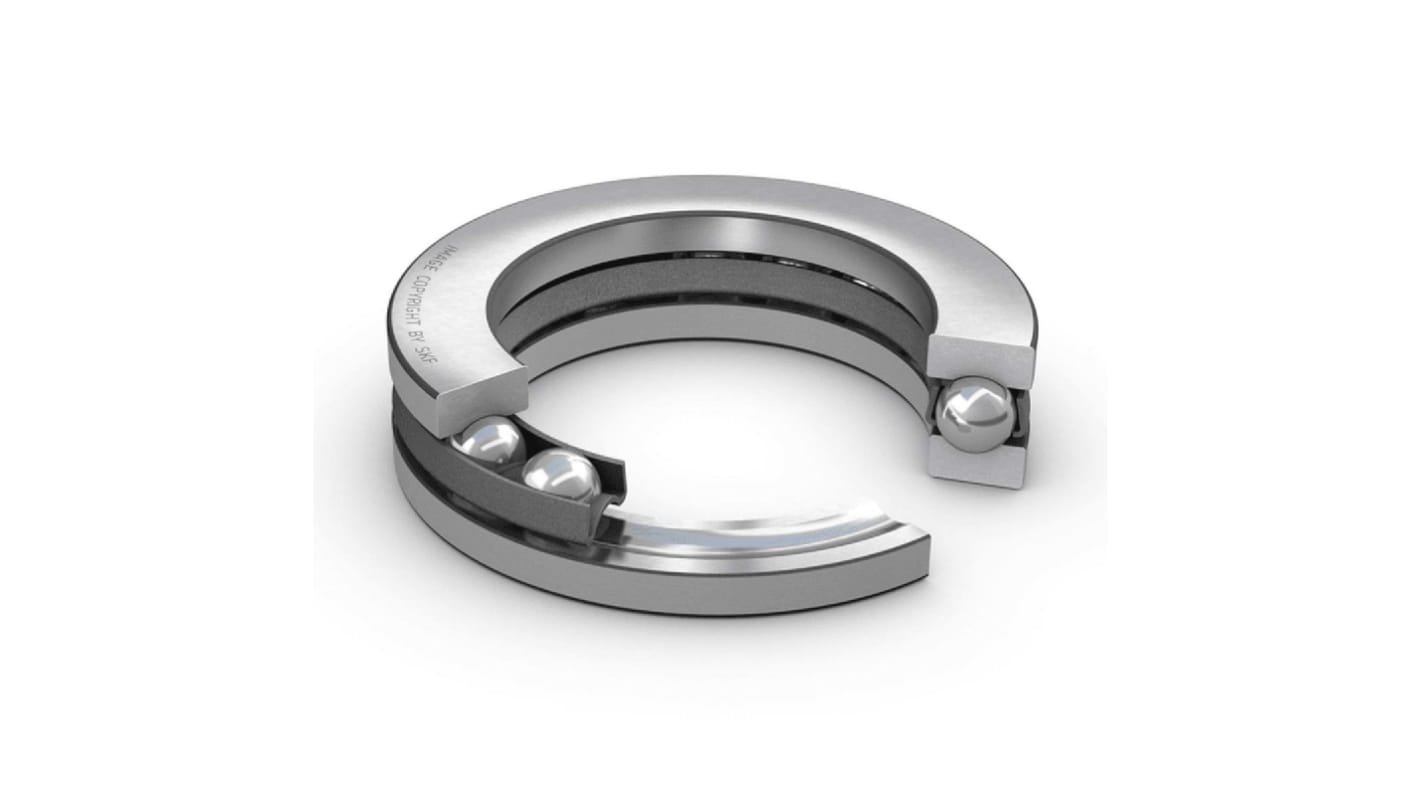

SKF Ball Bearing, Thrust Bearing Type, 5mm ID, 12mm OD, 4mm Race Width - BA 5
Need to get axial loads on the straight and narrow? Turn to this SKF ball bearing. It's a thrust-type unit that handles dynamic loads up to 0.852kN and static loads up to 0.965kN, so it's just the thing for light-duty applications. Thanks to its separable elements, it's a breeze to mount and remove from a shaft. A ground bore on one of the unit's washers lets it support interference fits for flexible installation. High-speed tasks are no match for this bearing thanks to its limiting speed of 28,000rpm.
• Bearing steel material is resistant to wear and corrosion
• Compact inside diameter of 5mm and outside diameter of 12mm for installation in tight spaces
• Heat-stabilised up to +125°C to hold its own in challenging conditions
Applications
• Material handling equipment
• Packing plants
• Manufacturing facilities
The SKF thrust ball bearing is manufactured as a single direction or double direction thrust ball bearings. The ball bearing has 5mm bore diameter and 12mm outside diameter. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Which of this ball bearing's washers should I mount onto my shaft first?
Single row design
Cylindrical bore type
Steel bearing
You should mount the washer with the smaller bore size first when installing the bearing, making sure it's placed against a fixed part of your machine to achieve a secure fit.
