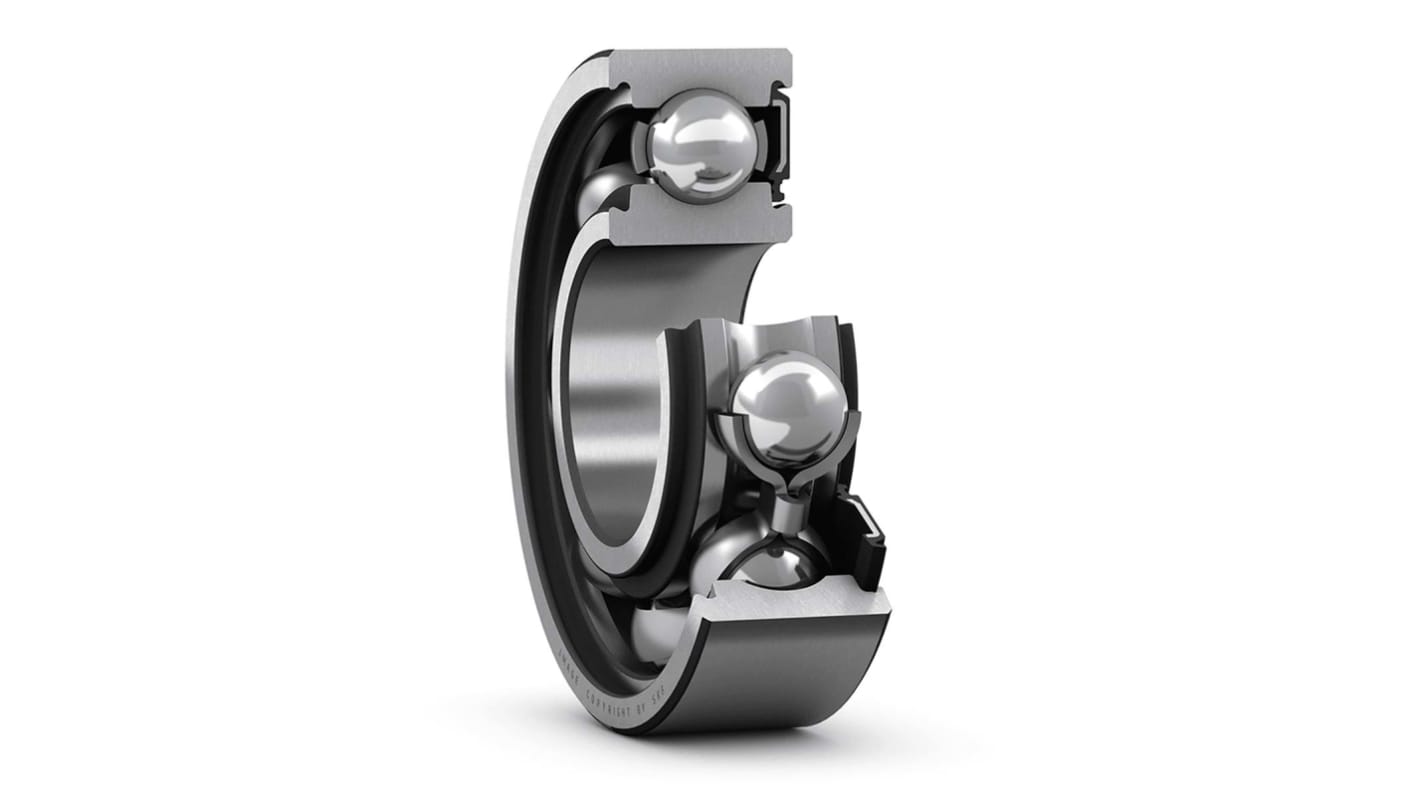

SKF 6203-RSH Single Row Deep Groove Ball Bearing- One Side Sealed 17mm I.D, 40mm O.D
- RS Stock No.:
- 207-7115
- Mfr. Part No.:
- 6203-RSH
- Brand:
- SKF
Subtotal (1 unit)*
£11.17
(exc. VAT)
£13.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.17 |
*price indicative
- RS Stock No.:
- 207-7115
- Mfr. Part No.:
- 6203-RSH
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 17mm | |
Outside Diameter | 40mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | One Side Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 4.75kN | |
Dynamic Load Rating | 9.95kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 6203 | |
Flange Outside Diameter | 40mm | |
Model Number p | 6203-RSH | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 17mm | ||
Outside Diameter 40mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement One Side Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 4.75kN | ||
Dynamic Load Rating 9.95kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 6203 | ||
Flange Outside Diameter 40mm | ||
Model Number p 6203-RSH | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Sheet Metal Cage, Steel Balls, 17mm ID, 40mm OD - 6203-RSH
Get your equipment rolling with this versatile deep-groove ball bearing from SKF. It's ideal for supporting axial loads, but will also support a radial load, meaning you can use it with shafts subjected to forces coming from various directions. The 17mm parallel bore makes the unit easy to install with no need for an adapter sleeve. As a single-row ball bearing, it minimises friction to give you efficient rotation, as well as cutting out noise and vibration to ensure quiet operation.
Features & Benefits
• Suitable for high-speed and very-high-speed rotation
• Single-sided seal protects the bearing from contaminants while enabling easy relubrication
• Steel balls resist wear to give you a long service life
• Sturdy sheet metal cage evenly distributes the load across the ball bearing, helping it keep on performing when subjected to continual stresses
• Single-sided seal protects the bearing from contaminants while enabling easy relubrication
• Steel balls resist wear to give you a long service life
• Sturdy sheet metal cage evenly distributes the load across the ball bearing, helping it keep on performing when subjected to continual stresses
Applications
• Textile industry
• Agricultural machinery
• Fuel pumps
• Agricultural machinery
• Fuel pumps
Why would I choose a bearing that's sealed on just one side?
One-sided seals on a bearing protect the inner workings from contamination to keep the unit running smoothly. The open side enables you to relubricate the rolling parts. This type of bearing is suitable for applications where there's a moderate risk of exposure to dust and moisture.
