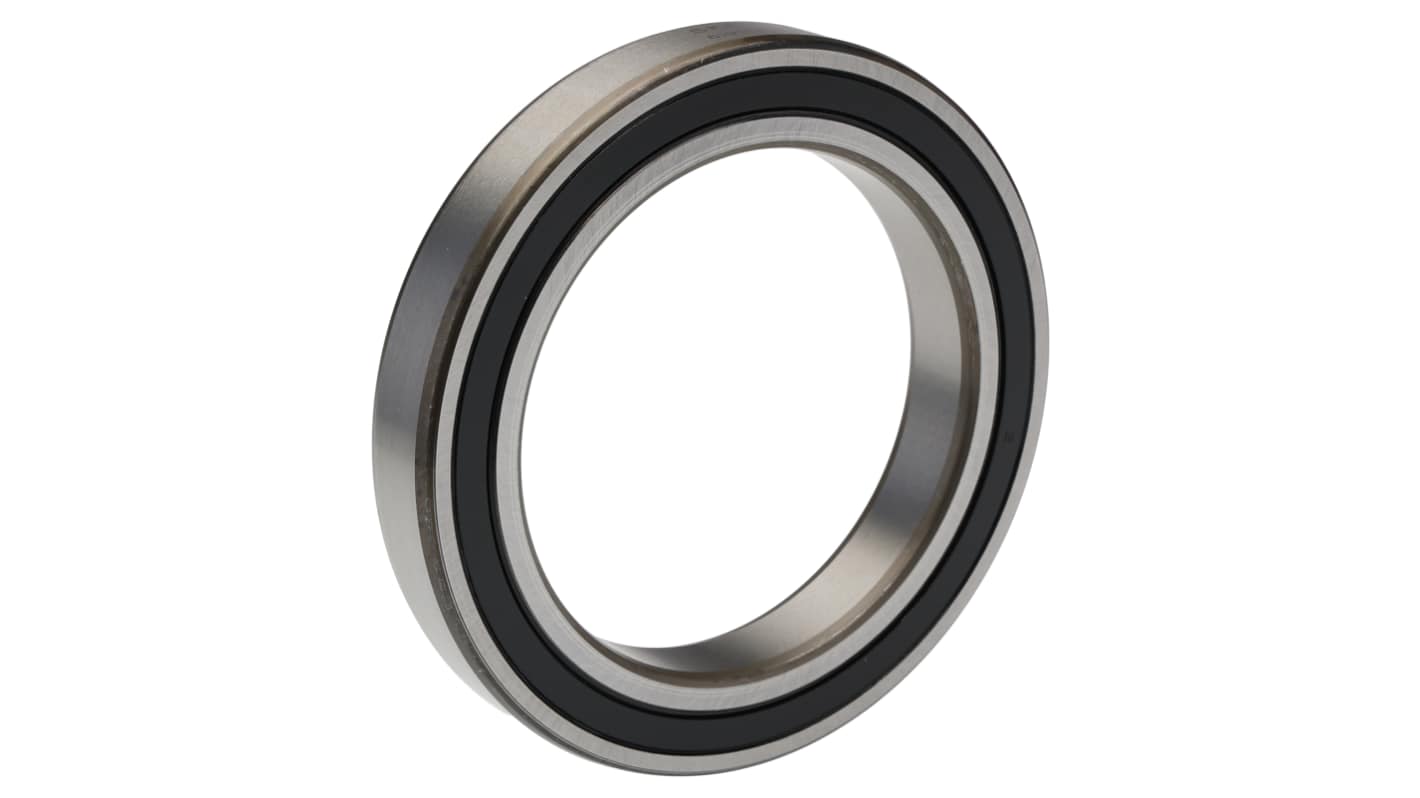

SKF 61912-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 60mm I.D, 85mm O.D
- RS Stock No.:
- 207-7058
- Mfr. Part No.:
- 61912-2RS1
- Brand:
- SKF
Subtotal (1 unit)*
£91.01
(exc. VAT)
£109.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £91.01 |
*price indicative
- RS Stock No.:
- 207-7058
- Mfr. Part No.:
- 61912-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 60mm | |
Outside Diameter | 85mm | |
Race Width | 13mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 12kN | |
Dynamic Load Rating | 16.5kN | |
Bore Type | Parallel | |
Clearance Code | CN | |
Bearing Series | 1 Extra Light Thrust | |
Model Number p | 61912-2RS1 | |
Partial Bearing Code | 61912 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 60mm | ||
Outside Diameter 85mm | ||
Race Width 13mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 12kN | ||
Dynamic Load Rating 16.5kN | ||
Bore Type Parallel | ||
Clearance Code CN | ||
Bearing Series 1 Extra Light Thrust | ||
Model Number p 61912-2RS1 | ||
Partial Bearing Code 61912 | ||
- COO (Country of Origin):
- FR
SKF Deep Groove Ball Bearing, 60mm Inside Diameter, 85mm Outside Diameter - 61912-2RS1
This deep groove ball bearing is a single row design, ideal for various applications across electrical and mechanical industries. It features an inside diameter of 60mm and an outside diameter of 85mm, offering a compact and efficient solution for rotational operations. Its robust steel construction ensures durability, while the sealed design prevents contamination, prolonging service life.
Features & Benefits
• Sealed ball bearings protect against dust and moisture
• High load capacity with static rating of 12kN
• Dynamic load rating of 16.5kN for reliable performance
• Suitable for standard seat tolerances, ensuring easy fit
• Cylindrical bore type for versatile mounting options
• High load capacity with static rating of 12kN
• Dynamic load rating of 16.5kN for reliable performance
• Suitable for standard seat tolerances, ensuring easy fit
• Cylindrical bore type for versatile mounting options
Applications
• Used with machinery in automation systems
• Suitable for in electric motors
• Utilised in conveyor systems for enhanced movement
• Ideal for use in pumps and compressors
• Effective in industrial equipment requiring precision
• Suitable for in electric motors
• Utilised in conveyor systems for enhanced movement
• Ideal for use in pumps and compressors
• Effective in industrial equipment requiring precision
What is the advantage of the sealed design?
The sealed design effectively keeps out contaminants, thus enhancing the lifespan of the bearing by reducing wear and tear. This is particularly beneficial in environments where dirt and moisture are prevalent.
How does the load capacity affect performance?
The high static and dynamic load ratings increase reliability under heavy operational stresses, making it suitable for demanding applications while ensuring efficient power transmission.
What are the key considerations when installing this type of bearing?
It is important to adhere to the specified tolerances for the bearing seat and ensure proper lubrication to maintain optimal performance and longevity. Misalignment or inadequate lubrication can lead to premature failure.
How does this bearing perform at high speeds?
With a limiting speed of 4500 r/min, it is designed to maintain stability and reduce friction during high-speed operations, making it suitable for dynamic environments.
What materials are used in the construction of these bearings?
The bearing is constructed from high-grade steel, ensuring strength and durability, while the cage is made from sheet metal, providing lightweight support without sacrificing performance.
