SKF 61900-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 10mm I.D, 22mm O.D
- RS Stock No.:
- 207-7035
- Mfr. Part No.:
- 61900-2Z
- Brand:
- SKF
Subtotal (1 unit)*
£14.29
(exc. VAT)
£17.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £14.29 |
*price indicative
- RS Stock No.:
- 207-7035
- Mfr. Part No.:
- 61900-2Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 10mm | |
Outside Diameter | 22mm | |
Race Width | 6mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 1.27kN | |
Dynamic Load Rating | 2.7kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Partial Bearing Code | 61900 | |
Model Number p | 61900-2Z | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 10mm | ||
Outside Diameter 22mm | ||
Race Width 6mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 1.27kN | ||
Dynamic Load Rating 2.7kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Partial Bearing Code 61900 | ||
Model Number p 61900-2Z | ||

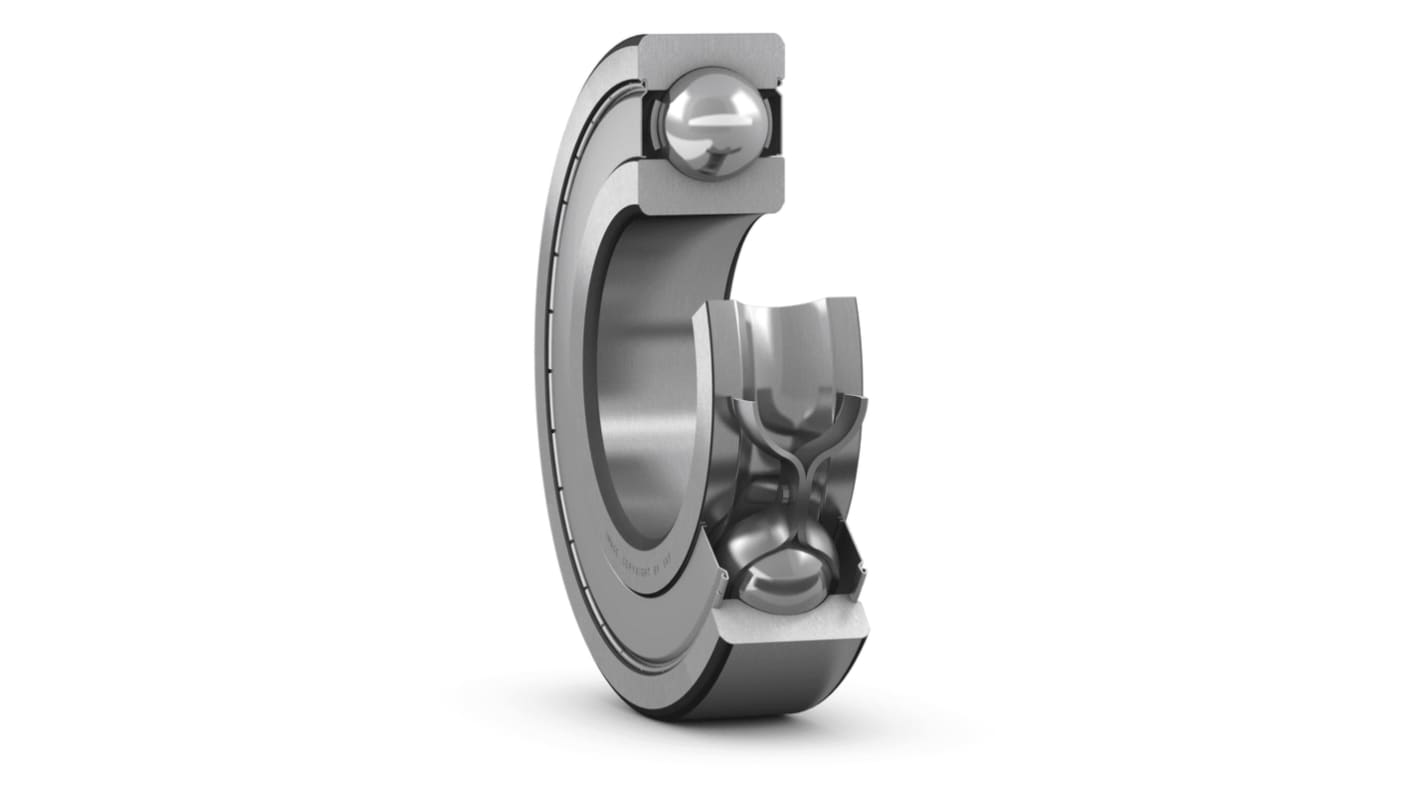

SKF Deep-Groove Ball Bearing, 10mm ID,22mmOD - 61900-2Z
For operations where radial and axial loads need to be handled simultaneously, this ball bearing from SKF is an effective solution. It safely and reliably transmits forces between moving parts such as axles, shafts and wheels. The bearing consists of a single row of balls that rotate in a precision-engineered raceway between the outer and inner rings. A deep-groove construction means the bearing's balls are of a similar size to the 6mm raceway and this snug fit enables greater stability and higher load-carrying capacity.
• Bearing steel material offers excellent durability and resistance to oxidation to ensure a long lifespan
• Unit comes pre-lubricated to save you maintenance costs and time
• Static load rating of 1.27 kN means the product can withstand heavy shocks or constant forces without its performance being affected
• Unit comes pre-lubricated to save you maintenance costs and time
• Static load rating of 1.27 kN means the product can withstand heavy shocks or constant forces without its performance being affected
Applications
• Agricultural machinery
• Pumps and engines
• Medical equipment
• Production lines
• Pumps and engines
• Medical equipment
• Production lines
Can I use this bearing in applications where high levels of speed are expected?
With a high limiting speed of 36,000r/min (revolutions per minute), this product is a suitable match for most high-velocity parts and equipment.
